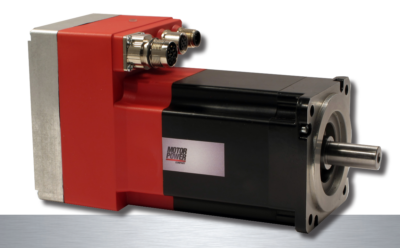

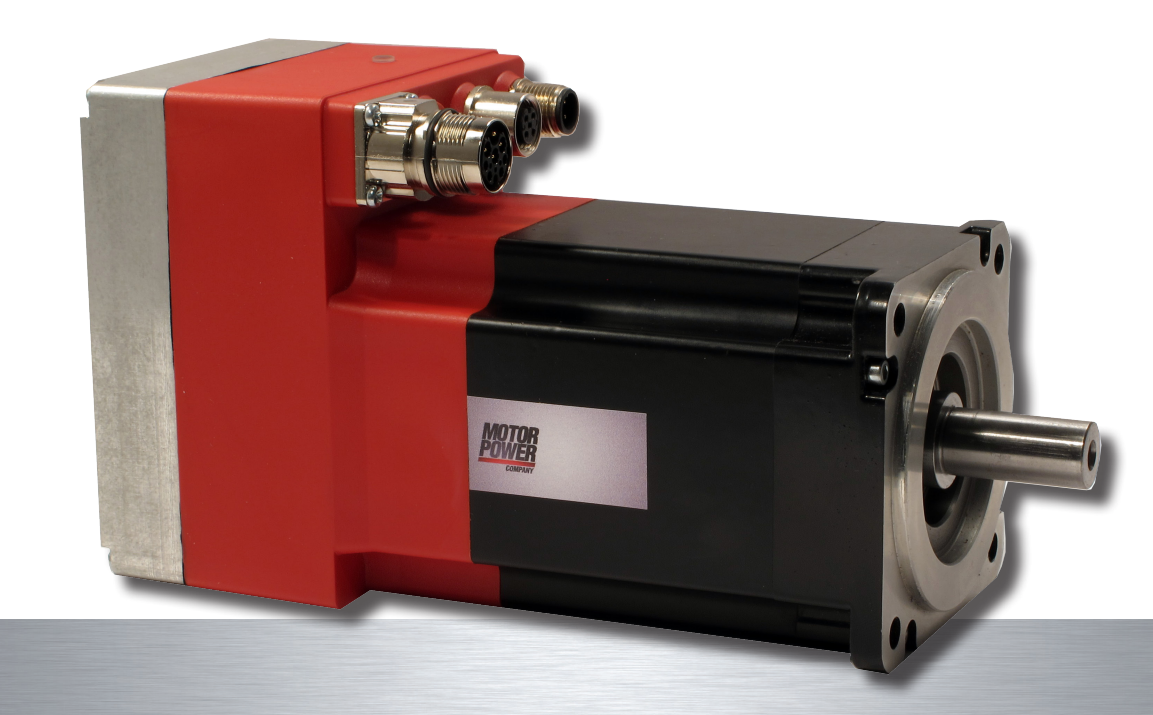

Description
Flange dimensions: 80 mm
Rated Output Power: 390 – 520 W
Rated Torque: 1,5 – 2,0 Nm
Rated Speed: 2500 rpm
Fieldbus: CanOpen/Ethercat
| Parameter | Unit | DUET FLEXI 80 2 03 |
|---|---|---|
| Rated Voltage | Vdc | 48 |
| Stall current @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C) | Arms | 14.2 |
| Peak Current | Arms | 39.8 |
| Rated current @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C) | Arms | 14.7 |
| Rated Speed @48Vdc | rpm | 2500 |
| Maximum Speed @48Vdc | rpm | 3600 |
| Maximum Speed @24Vdc | rpm | 1800 |
| Torque Constant (± 5%) | Nm/Arms | 0.141 |
| Voltage Constant (± 5%) | Vrms/Krpm | 8.5 |
| Phase/phase resistance (± 10%@25°C) | Ω | 0.12 |
| Phase/phase inductance (± 10%) | mH | 0.31 |
| Auxiliary Voltage (+6% -10%) | Vdc | 24 |
| Electrical time constant | ms | 2.6 |
| Thermal Resistance | °C/W | 1.3 |
| Mechanical time constant | ms | 1.06 |
| Rotor Inertia without brake and without feedback | kg·cm² | 1.16 |
| Duet weight | Kg | 3.2 |
| Duet weight with brake | Kg | 3.9 |
| Axial Load applied on the shaft’s center | N | 110 |
| Radial Load applied on the shaft’s center | N | 350 |
| Minimum Voltage | Vdc | 24 |
| Maximum Voltage | Vdc | 60 |
| Stall Torque @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C) | Nm | 2 |
| Peak Torque | Nm | 5.6 |
| Rated Torque @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C) | Nm | 2 |
| Rated output power @power stage temperature ≤ 50°C (rated current limited to 10 Arms @ power stage temperature > 50°C < 70°C) | W | 520 |
| Rated output Power @ 10 Arms | W | 360 |
Family Specification
| Family Specification | Unit | DUET FLEXI 80 2 03 |
|---|---|---|
| Time Rating | Coninuous | |
| Recommendation | Rated output with 250 x 250 x 6 mm metallic heat sink flange coupling – Derating must be considered if the oil seal is applied – IP 54 standard shaft bushing – Continuous duty (S1) operation with cooling system appropriately sized. | |
| Insulation Class | F | |
| Enclosure | Totally enclosed. Self-cooled | |
| Protection Class | IP 65 standard on the body | |
| Motor Insulation System UL /CSA | cURus , DV155J File nr. : E216686 | |
| Ambient Temperature | °C | 0 to 40 |
| Ambient Humidity | 5 to 85% (non-condensing) | |
| Poles | 8 | |
| Certification | CE |
Family Overview
| Family Overview | Unit | DUET FLEXI 80 2 03 |
|---|---|---|
| Flange dimensions | mm | 80 |
| Rated Output Power | Watt | 390 – 520 |
| Rated Torque | Nm | 1,5 – 2,0 |
| Rated Speed | rpm | 2500 |
| Fieldbus | CanOpen/Ethercat |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
