Description
Planetary Gearbox Series
| Parameter | Unit | BO6133N2B03-50-24.0 |
|---|---|---|
| Voltage | V | 24.0 |
| Terminal resistance | Ω | 0.19 |
| No-load speed | rpm | 5000 |
| No-load current | mA | 0.7 |
| Stall torque | mNm | 5725 |
| Stall current | mA | 126.3 |
| Load torque | mNm | 558 |
| Load speed | rpm | 3700 |
| Load current | mA | 11 |
| Max. output power | W | 749 |
| Max. efficiency | % | 85.6 |
| Back-EMF constant | mV/rpm | 4.8 |
| Torque constant | mNm/A | 45.6 |
| Speed/torque gradient | rpm/mNm | 0.9 |
| Rotor inertia | gcm² | 599 |
| Weight | g | 230 |
| Operating temperature range | °C | -10~+80 |
Gearbox Characteristics
Gearbox Characteristics
| Gearbox stages | Unit | 1 | 2 | 3 | 4 | 5 | 6 |
|---|---|---|---|---|---|---|---|
| Reduction ratio | — | 3.65~8.63 | 14~58 | 67~393 | — | — | — |
| Max. rated torque | mNm | 8000 | 25000 | 50000 | — | — | — |
| Max. momentary torque | mNm | 16000 | 50000 | 100000 | — | — | — |

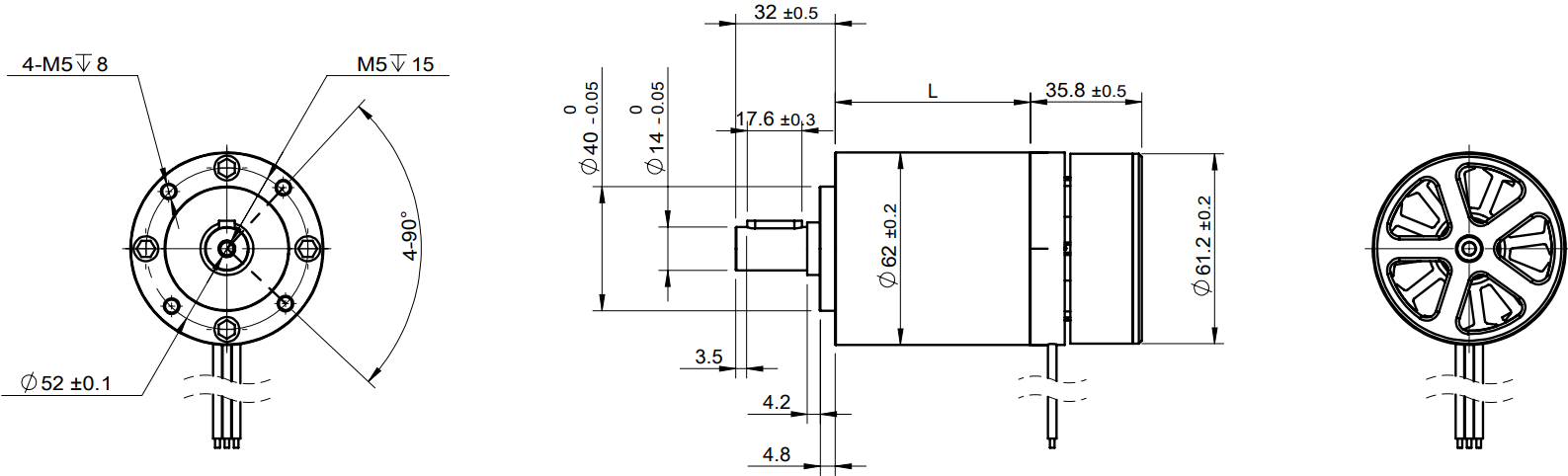

| Length（L） | mm | 45.1 | 62.7 | 80.3 | — | — | — |
| Shell material | — | Metal | – | – | – | – | – |
| Gear processing technology | — | Metal CNC | – | – | – | – | – |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
