Description

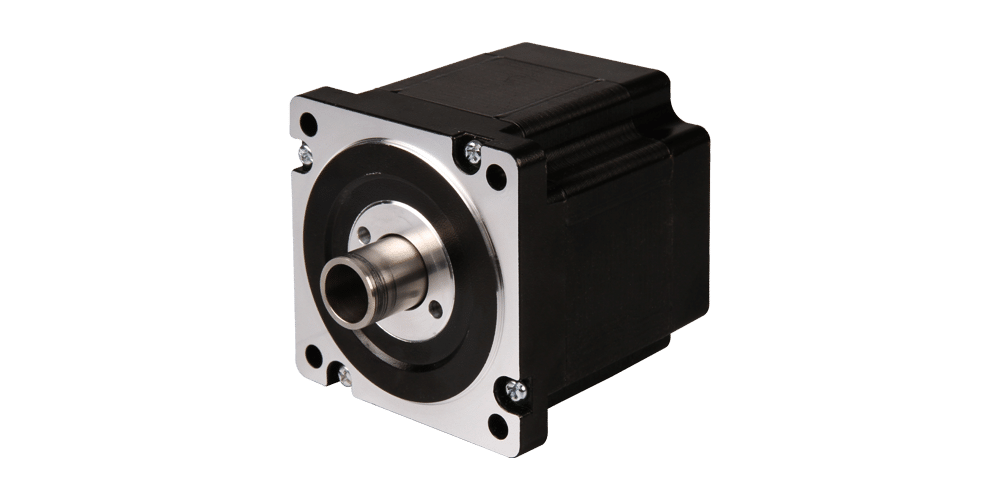

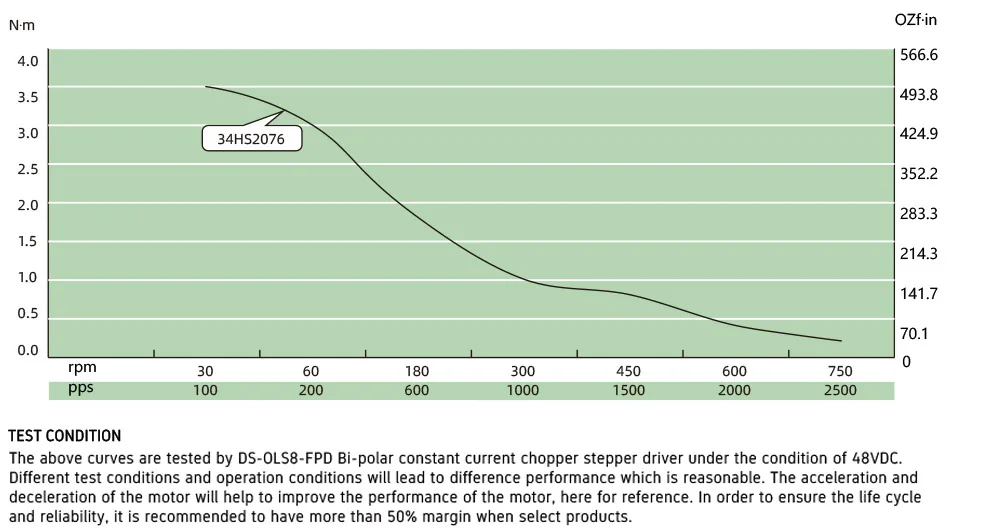

HSSM – Size 34 [86mm] Hollow Shaft Stepper Motor offers superior performance and adaptability for industrial automation and motion control applications. With a robust holding torque of up to 4.5 N·m, this motor excels in applications demanding high precision and torque density within compact installations.

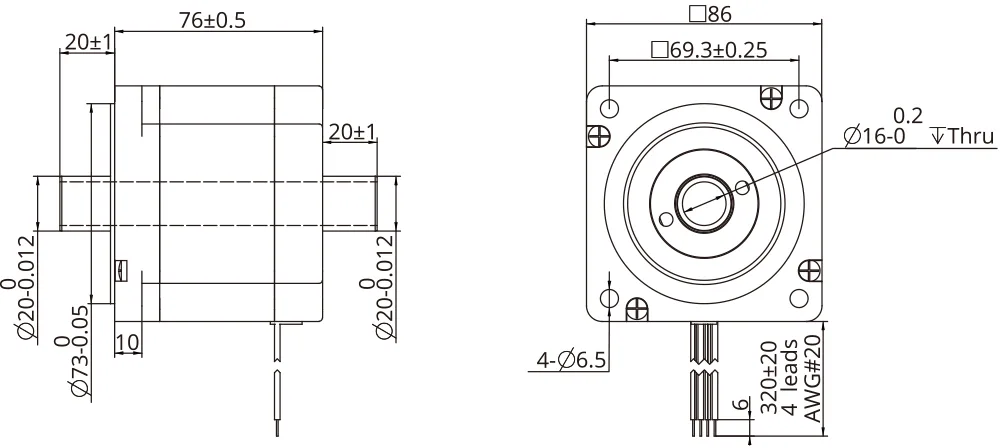

- Frame Size: NEMA 34 (86mm), ideal for medium to large machinery or equipment upgrades.
- Hollow Shaft Design: Enables streamlined cable routing and simplifies integration of encoders or other feedback mechanisms without external modifications.

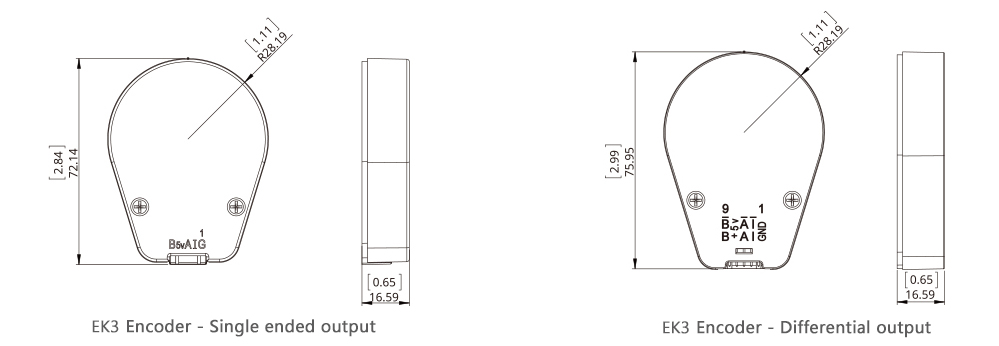

- Customizable Options: Supports special winding configurations and shaft customizations, including the EK3 hollow type encoder assembly for advanced feedback and positioning capabilities.
- Versatility: Suitable for printing systems, pick-and-place equipment, packaging automation, and any application requiring reliable stepper operation with feedback potential.
Customers benefit from flexible configuration and the backing of KOCO’s engineering expertise for project-specific customizations. For unique requirements such as alternative coil windings or specialized encoder integration, please contact KOCO to discuss tailored solutions that match your exact automation needs.
