Description

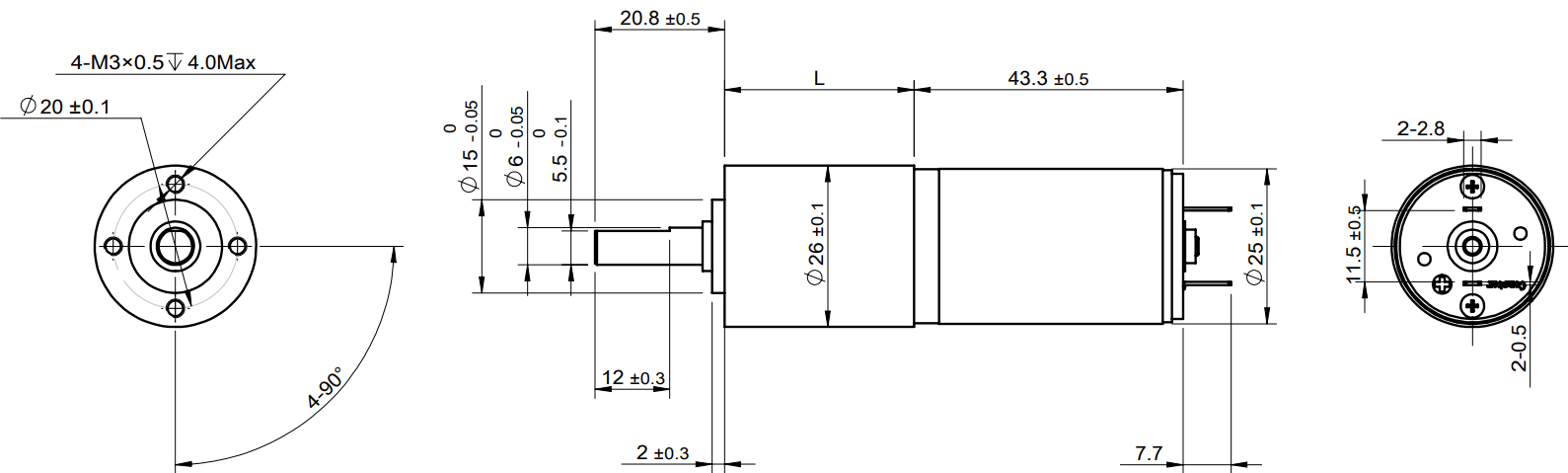

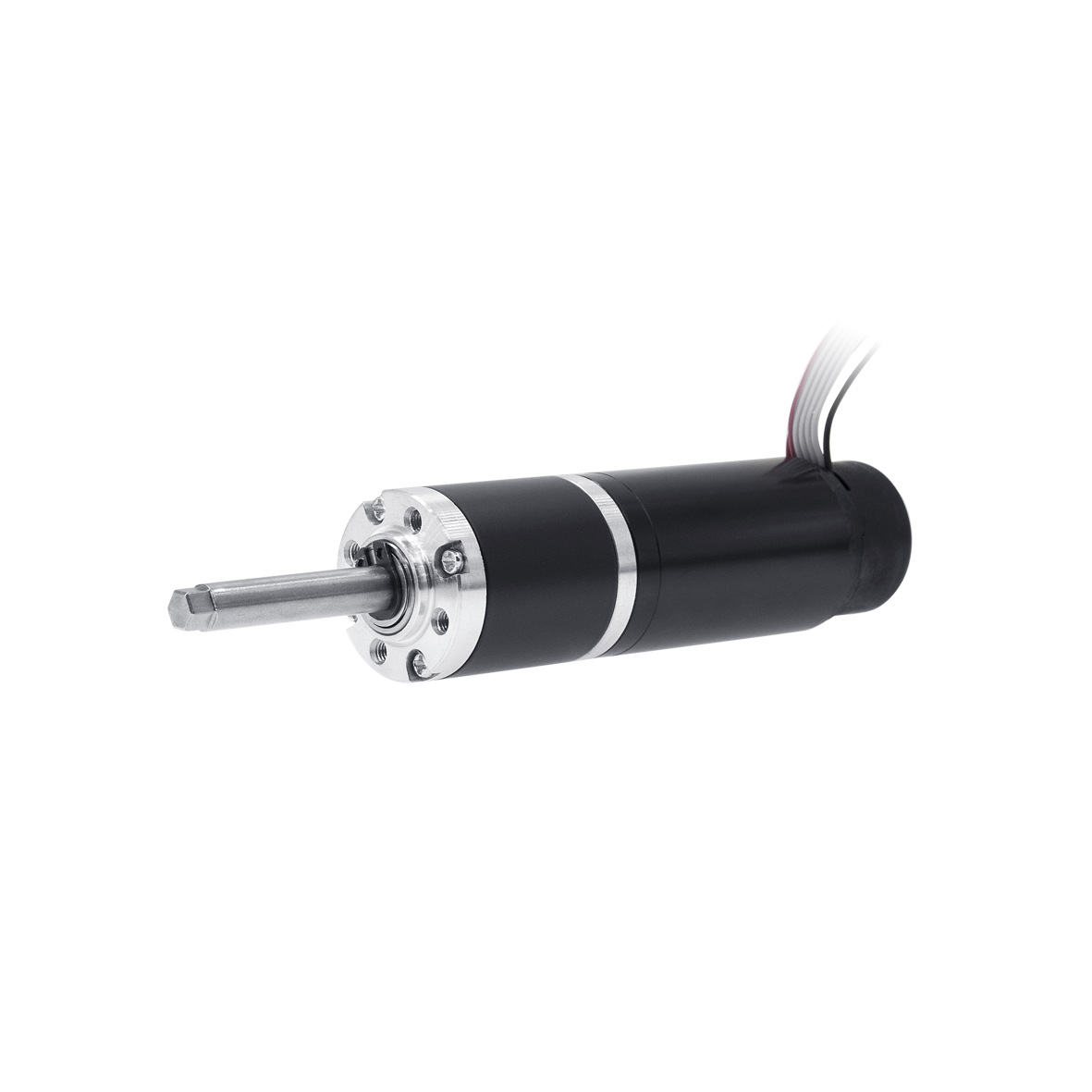

26mm planetary gearbox series
| Parameter | Unit | 25**—26MP—2554N9C2B04-82-24.0 |
|---|---|---|
| Voltage | V | 24.0 |
| Terminal resistance | Ohm | 3.1 |
| No-load speed | rpm | 8200 |
| No-load current | mA | 35 |
| Stall torque | mNm | 214.4 |
| Stall current | mA | 7740 |
| Nominal torque | mNm | 32.4 |
| Nominal speed | rpm | 6960 |
| Nominal current | mA | 1200 |
| Max. output power | W | 46.0 |
| Max. efficiency | % | 87 |
| Back-EMF constant | mV/rpm | 2.9 |
| Torque constant | mNm/A | 27.8 |
| Speed/torque gradient | rpm/mNm | 38 |
| Rotor inertia | g·cm² | 14.2 |
| Weight | g | 120 |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
