| Specification | 2038ZDF-BW-3-L4-3.7 | 2038ZDF-ET-L4-3.7 |
|---|---|---|
| Voltage | 3.7 V | 3.7 V |
| Resistance | 3.2 Ω | 3.2 Ω |
| Operating frequency range | 220~320 | 220~320 |
| No-load vibration frequency | 34800 Times / minute | 34800 Times / minute |
| No-load current | 90 mA | 95 mA |
| Starting torque | 22 mNm | 22 mNm |
| Starting current | 1.15 A | 1.15 A |
| Rated load (Brush head) | 4.4 g | 4.4 g |
| Load vibration frequency | 31000 Times / minute | 31000 Times / minute |
| Load current | 400 mA | 450 mA |
| Rotor inertia | 2.4 g·cm² | 2.4 g·cm² |
| Weight | 31 g | 31 g |
| Operating temperature range | -10~+60 | -10~+60 |
Applications
electric toothbrushes
health care products
cleaning equipment

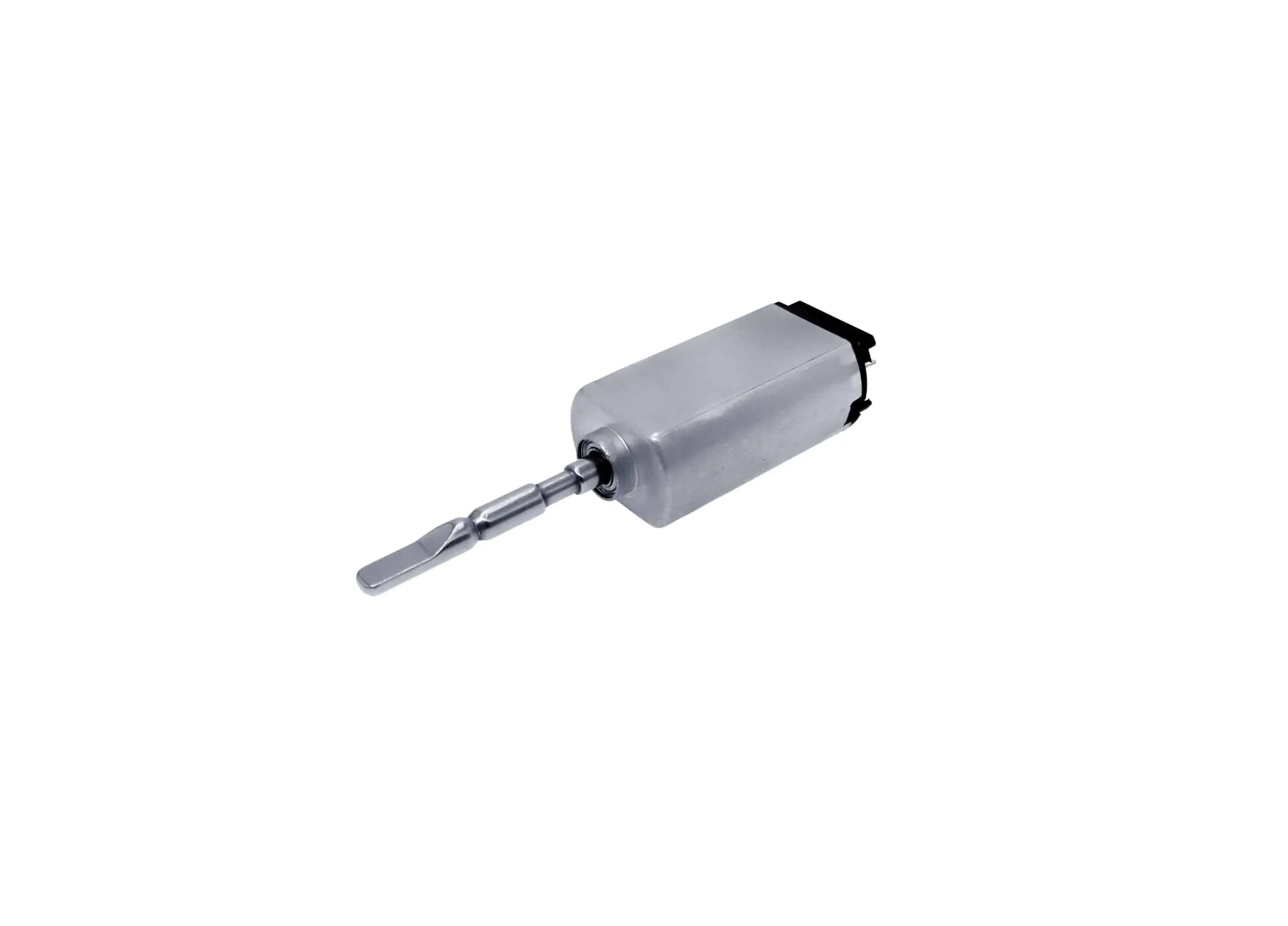

2038ZDF
| Specification | 2038ZDF-BW-3-L4-3.7 |
|---|---|
| Voltage | 3.7 V |
| Resistance | 3.2 Ω |
| Operating frequency range | 220~320 Hz |
| No-load vibration frequency | 34800 Times / minute |
| No-load current | 90 mA |
| Starting torque | 22 mNm |
| Starting current | 1.15 A |
| Rated load (Brush head) | 4.4 g |
| Load vibration frequency | 31000 Times / minute |
| Load current | 400 mA |
| Rotor inertia | 2.4 g·cm² |
| Weight | 31 g |
| Operating temperature range | -10~+60 °C |
Applications
electric toothbrushes
health care products
cleaning equipment
2038ZDF
| Specification | 2038ZDF-ET-L4-3.7 |
|---|---|
| Voltage | 3.7 V |
| Resistance | 3.2 Ω |
| Operating frequency range | 220~320 Hz |
| No-load vibration frequency | 34800 Times / minute |
| No-load current | 95 mA |
| Starting torque | 22 mNm |
| Starting current | 1.15 A |
| Rated load (Brush head) | 4.4 g |
| Load vibration frequency | 31000 Times / minute |
| Load current | 450 mA |
| Rotor inertia | 2.4 g·cm² |
| Weight | 31 g |
| Operating temperature range | -10~+60 °C |
Applications
electric toothbrushes
health care products
cleaning equipment
