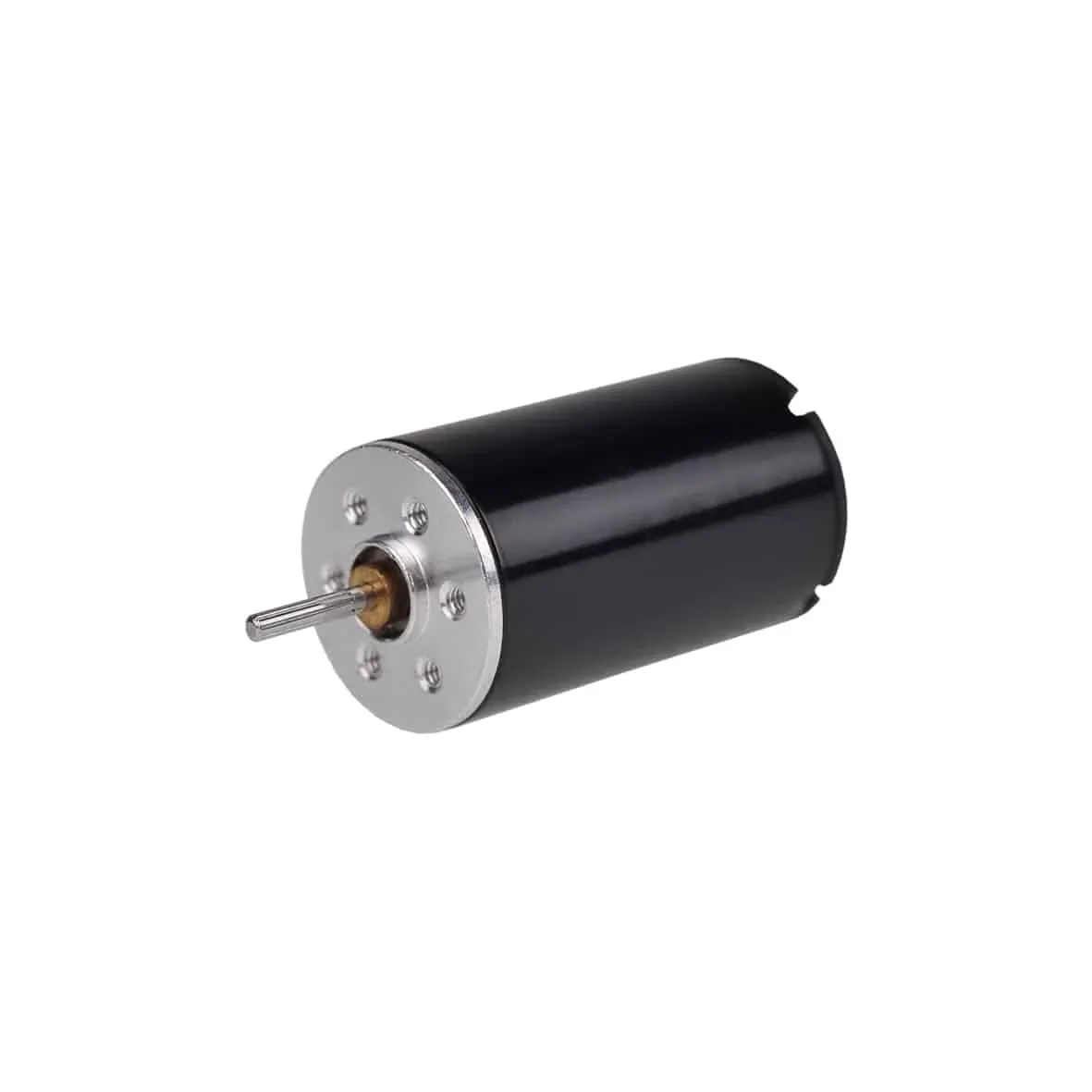

Description
Precious Metal Commutation
| Specification | 1627N5M20-113-6.0 |
|---|---|
| Voltage | 6.0 V |
| Terminal resistance | 1.8 Ω |
| No-load speed | 11300 rpm |
| No-load current | 50 mA |
| Stall torque | 16.4 mNm |
| Stall current | 3330 mA |
| Nominal torque | 4.0 mNm |
| Nominal speed | 8540 rpm |
| Nominal current | 850 mA |
| Max. output power | 4.9 W |
| Max. efficiency | 77 % |
| Back-EMF constant | 0.5 mV/rpm |
| Torque constant | 5.0 mNm/A |
| Speed/torque gradient | 690 rpm/mNm |
| Rotor inertia | 0.6 g·cm² |
| Weight | 25 g |
| Thermal resistance housing-ambient | 24.88 K/W |
| Thermal resistance winding-housing | 29.38 K/W |
| Thermal time constant motor | 228 s |
| Thermal time constant winding | 176 s |
| Operating temperature range | -20~+85 °C |
| Thermal class of winding | 130 °C |
| Axial play | 0.02~0.15 mm |
| Radial play | 0.014 mm |
| Axial load dynamic | 0.8 N |
| Axial load static | 30 N |
| Radial load at 3 mm from mounting face | 1.4 N |
| No. of pole pairs | 1 |
| Bearings | 2 sleeve bearings |
| Commutator | metal 5 segments |
| Protection class | 30 IP |
Applications
medical equipment and devices
healthcare products
automotive
robotics
industrial automation
