Description

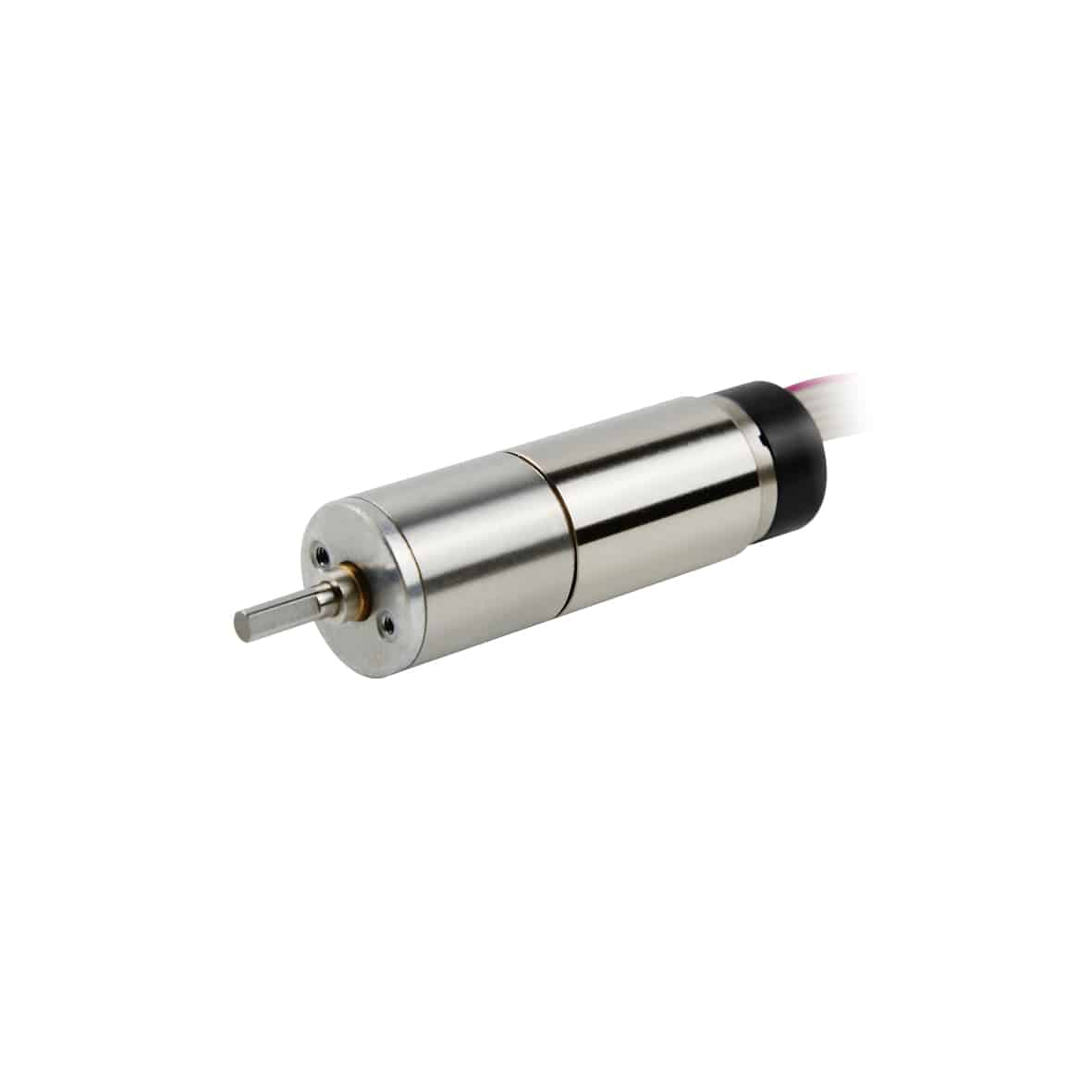

16mm Micro DC Coreless Servo Motor Series
Designed for high-precision and compact motion solutions, the 16mm Micro DC Coreless Servo Motor series delivers exceptional performance where space and accuracy are critical. These coreless brushed motors combine lightweight construction with high dynamic responsiveness, making them highly suitable for advanced automation needs.
- Technical Specifications:
- Operating voltage: 12 V, 15 V, 24 V — supporting diverse application requirements
- No-load speed: Up to 14,500 rpm and stall torque up to 13.6 mNm
- Low no-load current (from 10 mA) yields high efficiency, while precise torque constant up to 17.61 mNm/A ensures controlled actuation
- Operating temperature range: -20°C to +85°C for robust deployment in various environments
- Modularity & Options:
- Integrated encoder compatibility: 2 or 3-channel, counts per turn from 16 to 512, max speed up to 30,000 rpm
- Gearbox solutions: 1–6 stages, rated torque up to 1200 mNm, metal CNC gear options
- Customizable: Shaft length, special coil designs, and flexible lead wire configurations
- Typical Applications:
- Medical equipment requiring precise, smooth motion in compact assemblies
- Robotics and automation projects demanding efficiency and high speed
- Precision instruments, analytical systems, and laboratory automation
Competitive Advantages: Stable performance in demanding conditions, flexible integration with encoders/gearboxes, and robust, lightweight construction make this motor family a preferred choice for OEMs requiring reliability in miniaturized designs.
