Description

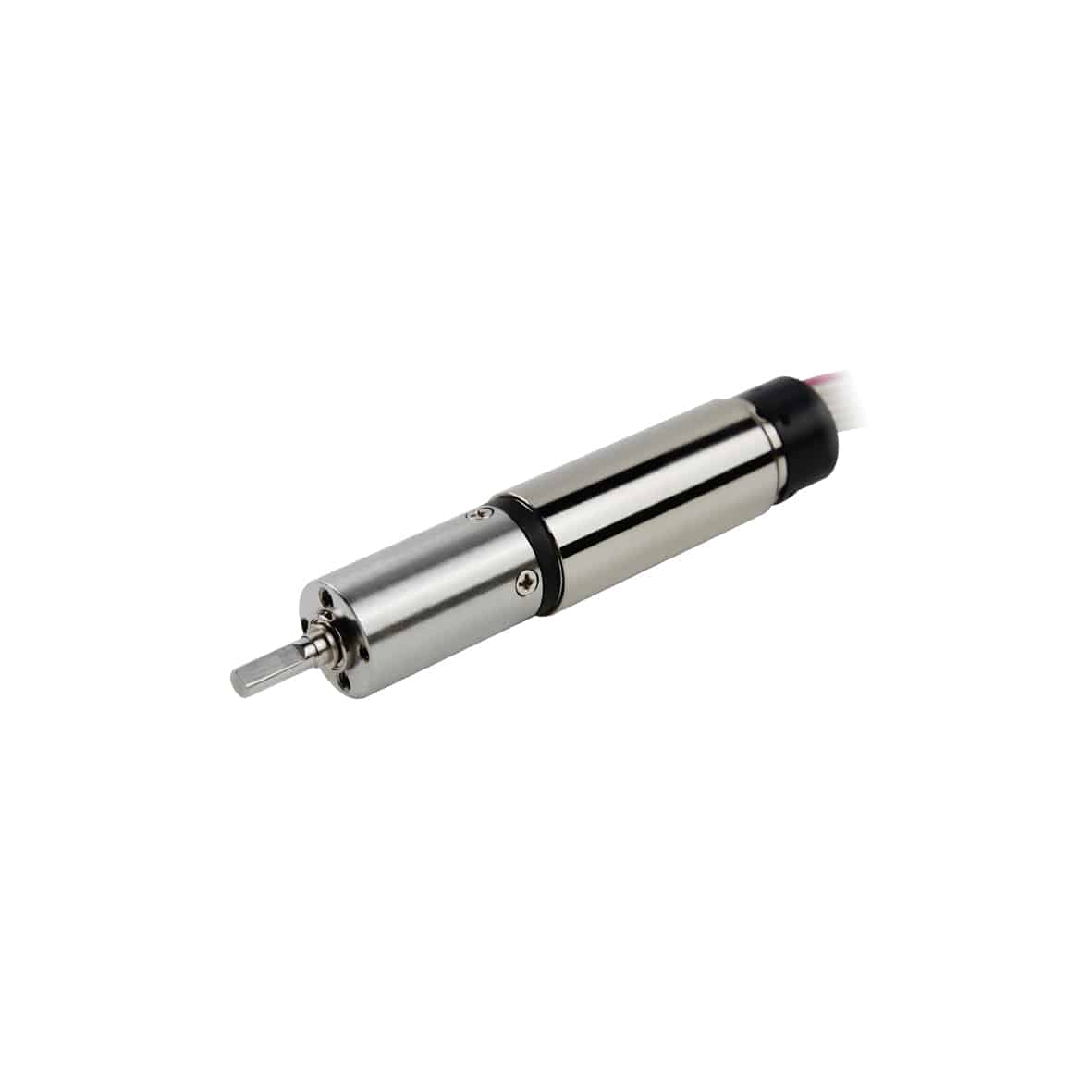

13mm Micro DC Servo Motors – Coreless Brushed Series
- Advanced Technology: Coreless brushed DC motors deliver superior efficiency, fast response, and reduced cogging for precise motion control.
- Performance Range: Available in multiple variants with supply voltages of 12 V, 15 V, and 24 V, no-load speeds up to 13,500 rpm, and nominal torques up to 1.2 mNm. Low no-load currents (10–20 mA) and wide operating temperature range (–20°C to +85°C) ensure suitability for continuous and reliable operation.
- Customization: Several options such as shaft length, special coils, and configurable lead wire lengths allow for customization to application-specific requirements.
- Integrated Solutions: Compatible with miniature encoders (up to 512 counts per turn, TTL output) and precision gearboxes (up to 1024:1 reduction, 200 mNm max torque), supporting flexible integration in automation and mechatronics solutions.
- Target Applications: Preferred choice for medical devices, robotics, and high-precision instruments requiring compact dimensions and high dynamic performance.
Benefits: These motors offer a unique combination of compact size, low inertia, high efficiency, and customization—minimizing energy loss and maximizing dynamic response for demanding industrial and OEM applications.
