Description

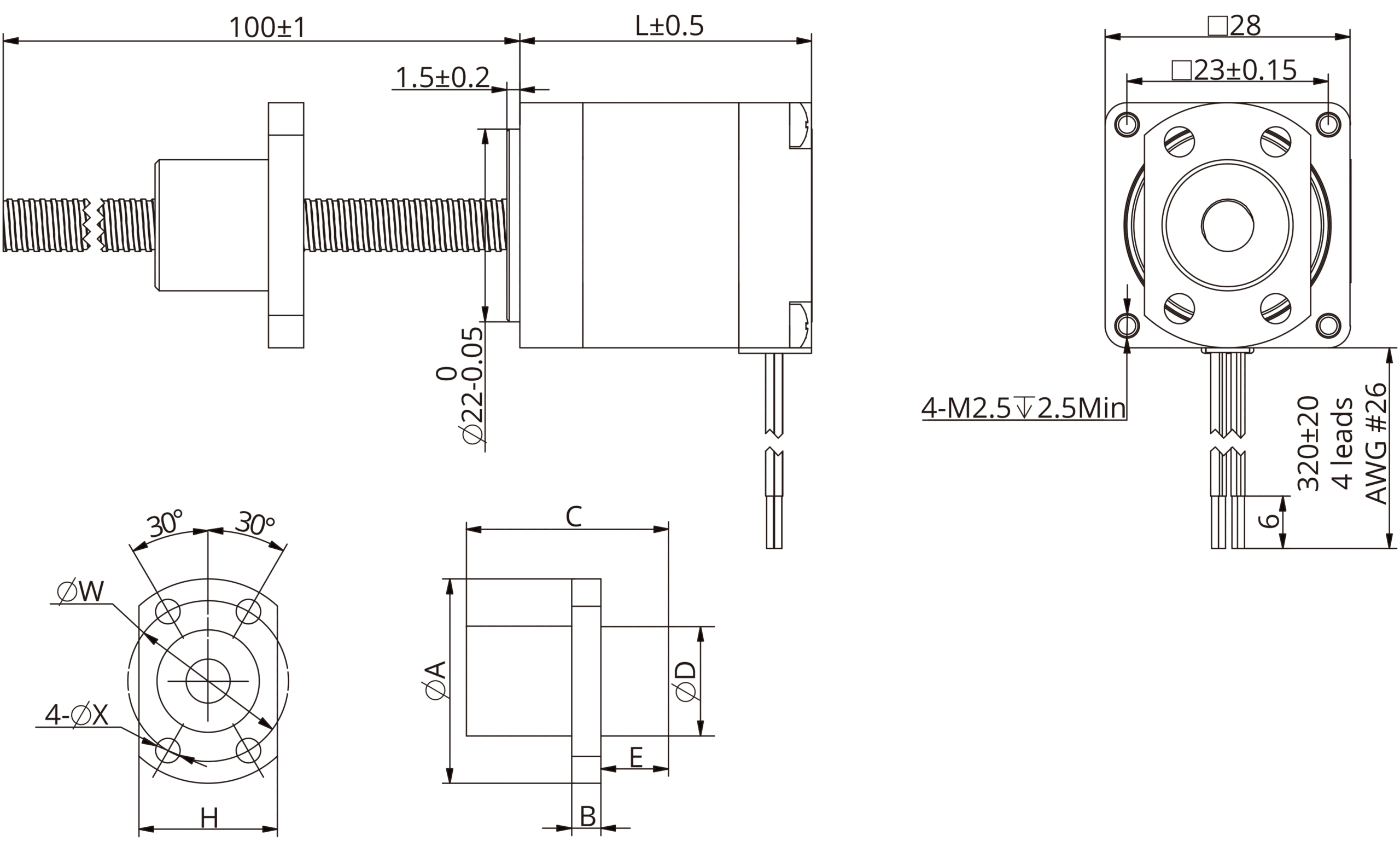

The size 11 [28mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.
The size 11 [28mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.
The size 11 [28mm] External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.
Parameter | Unit | 11E2110 |
---|---|---|
Voltage | V | 2.1 |
Current | A | 1 |
Resistance | Ohm | 2.1 |
Inductance | mH | 1.5 |
Motor Length | mm | 33.35 |
Lead Wire No. | 4 | |
Size | Nema | 11 |
Flange size | mm | 28 |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
