Description

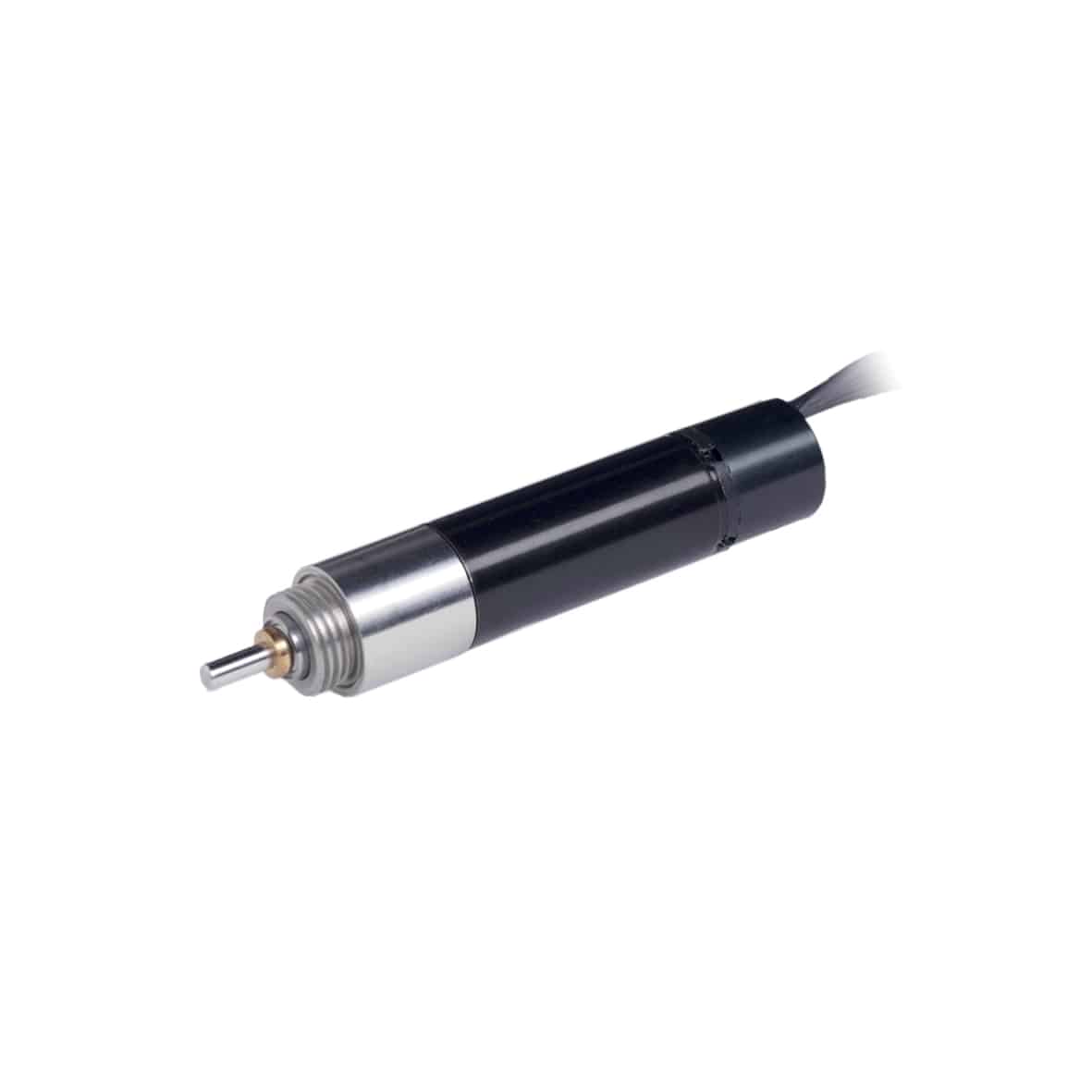

The 10**M7…M… series micro DC servo motors are engineered for applications that demand precise motion control in an ultra-compact footprint. Utilizing a coreless brushed design, these 10mm motors deliver fast dynamic response, superior efficiency, and minimal cogging effects—making them the preferred choice for high-precision applications.
- Key Specifications:
- Voltage options: 6.0 V and 12.0 V
- High no-load speeds up to 12,700 rpm
- Nominal torque range: 0.88–2.1 mNm
- Low nominal currents: 120–430 mA
- Operating temperature: -20 °C to +85 °C
- Encoder & Gearbox Options:
- Incremental encoders: up to 3 channels, 512 cpt, TTL outputs, 30,000 rpm max
- Precision gearboxes: Metal CNC gears, up to 6 stages, 4096:1 reduction, and max rated torque up to 60 mNm
- Customization: Shaft length, specialized coils, and lead wire length adjustments to suit bespoke requirements.
- Applications: Ideally suited for medical equipment, robotics, and precision instruments where space constraint, reliability, and highly responsive actuation are essential.
Benefit from robust design, flexibility, and high performance in your critical micro-motion applications with the 10mm DC coreless brushed servo motor series.
