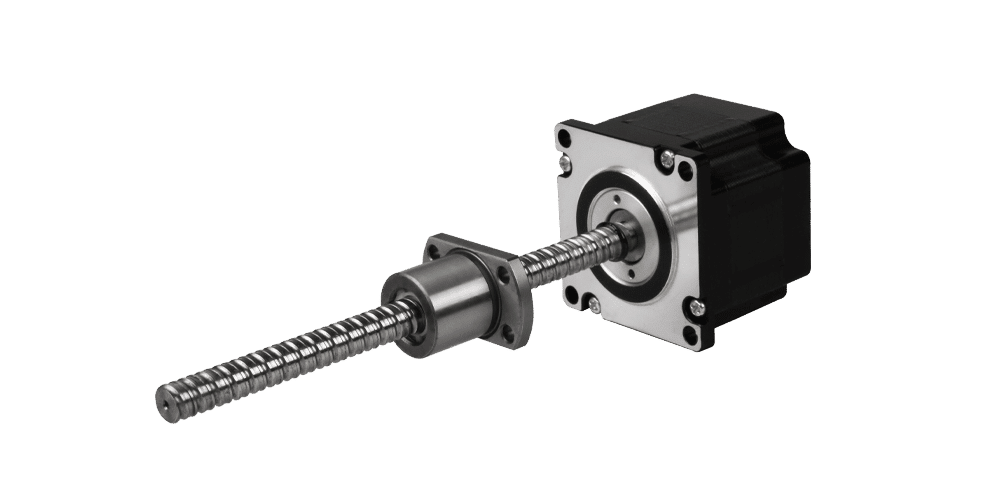

The size 23 External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.
Loggen Sie sich ein, um Preise für dieses Produkt zu sehen
inkl. 19 % MwSt.
The size 23 External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.
The size 23 External Stepper Ball Screw Linear Actuator.
Various screw end machining, encoders and power-off brake options are available.

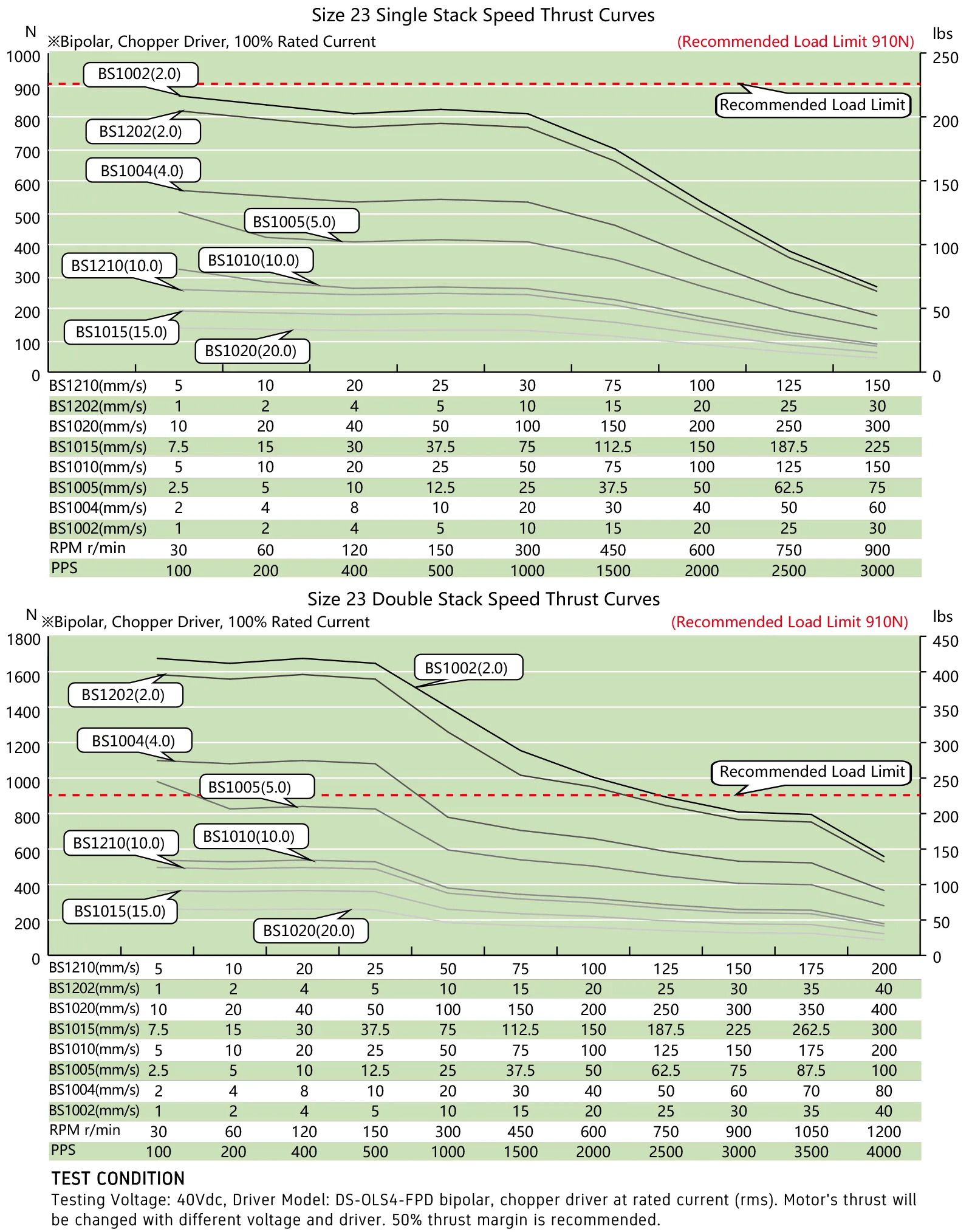

Specification | 23E2120 |
---|---|
Voltage | 3.5 V |
Current | 2.0 A |
Resistance | 1.75 Ω |
Inductance | 4.1 mH |
Motor Length | 45 mm |
Lead Wire No. | 4 |
Size | 23 Nema |
Flange size | 57 mm |
Ball screw type | 1002 | 1004 | 1005 | 1010 | 1015 | 1020 | 1202 | 1210 |
Ball size | Ø1.5875 | Ø2.0 | Ø2.0 | Ø2.0 | Ø2.0 | Ø1.5875 | Ø1.5875 | Ø2.381 |
Number of threads | 1 | 1 | 1 | 2 | 2 | 4 | 1 | 2 |
Thread direction | Right | Right | Right | Right | Right | Right | Right | Right |
Shaft root dia. | Ø8.6 | Ø8.2 | Ø8.2 | Ø8.4 | Ø8.4 | Ø8.7 | Ø10.6 | Ø10.2 |
Number of circuits | 3.7×1 | 2.7×1 | 2.7×1 | 1.6×2 | 1.6×2 | 0.7×4 | 3.7×1 | 3.7×2 |
Shaft nut material | SCM415H | SCM415H | SCM415H | SCM415H | SCM415H | SCM415H | SCM415H | SCM415H |
Surface hardness | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 | HRC58~62 |
Anti-rust treatment | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil | Anti-rust oil |
Grade | C7 | C7 | C7 | C7 | C7 | C7 | C7 | C7 |

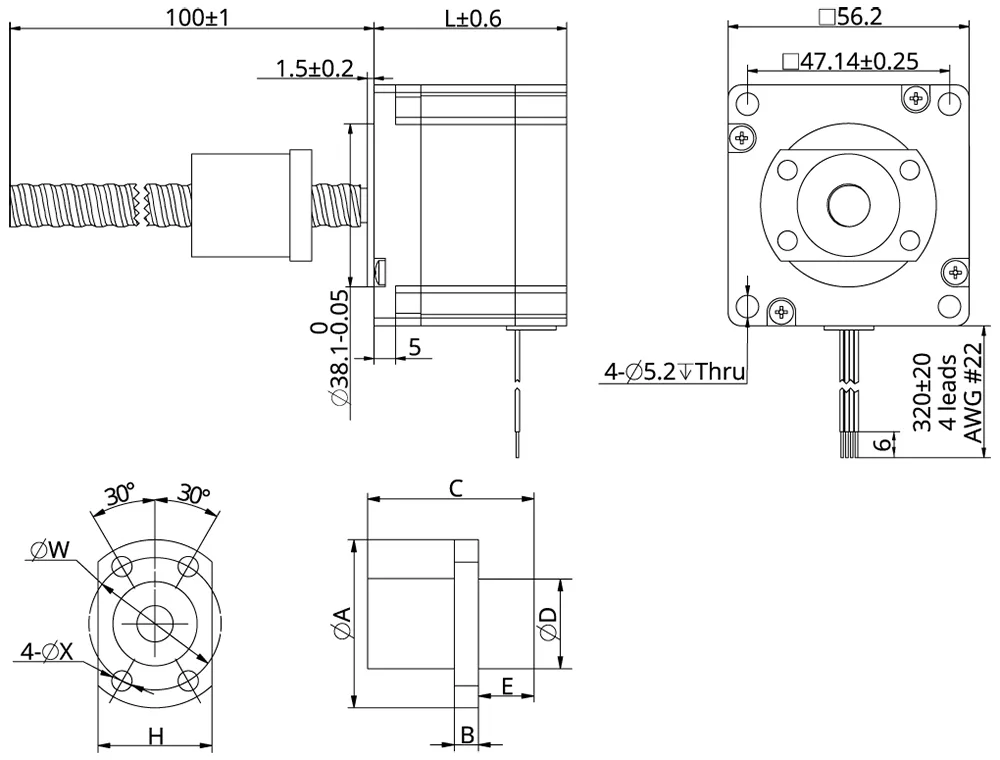

Nut size | A | B | C | D | H | W | X | E | Position accuracy | Total run out | Axial play | Dynamic load[N] | Static load[N] |
BS1002 | 40 | 5 | 24 | 23 | 25 | 32 | 4.5 | ±0.05 | 0.12 | ≤0.03 | 2700 | 5300 | |
BS1004 | 41 | 5 | 28 | 24 | 26 | 33 | 4.5 | ±0.05 | 0.12 | ≤0.03 | 3000 | 5200 | |
BS1005 | 40 | 5 | 26 | 23 | 25 | 32 | 4.5 | ±0.05 | 0.12 | ≤0.03 | 3000 | 5200 | |
BS1010 | 40 | 5 | 24 | 23 | 25 | 32 | 4.5 | 6 | ±0.05 | 0.12 | ≤0.03 | 3300 | 5900 |
BS1015 | 40 | 5 | 33 | 23 | 25 | 32 | 4.5 | 6 | ±0.05 | 0.12 | ≤0.03 | 3300 | 6400 |
BS1020 | 37 | 5 | 23 | 20 | 22 | 29 | 4.5 | 5 | ±0.05 | 0.12 | ≤0.03 | 2100 | 4000 |
BS1202 | 42 | 5 | 24 | 25 | 27 | 34 | 4.5 | ±0.05 | 0.12 | ≤0.03 | 3000 | 6400 | |
BS1210 | 41 | 5 | 30 | 24 | 26 | 33 | 4.5 | 9.5 | ±0.05 | 0.12 | ≤0.03 | 5100 | 9800 |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
