Description

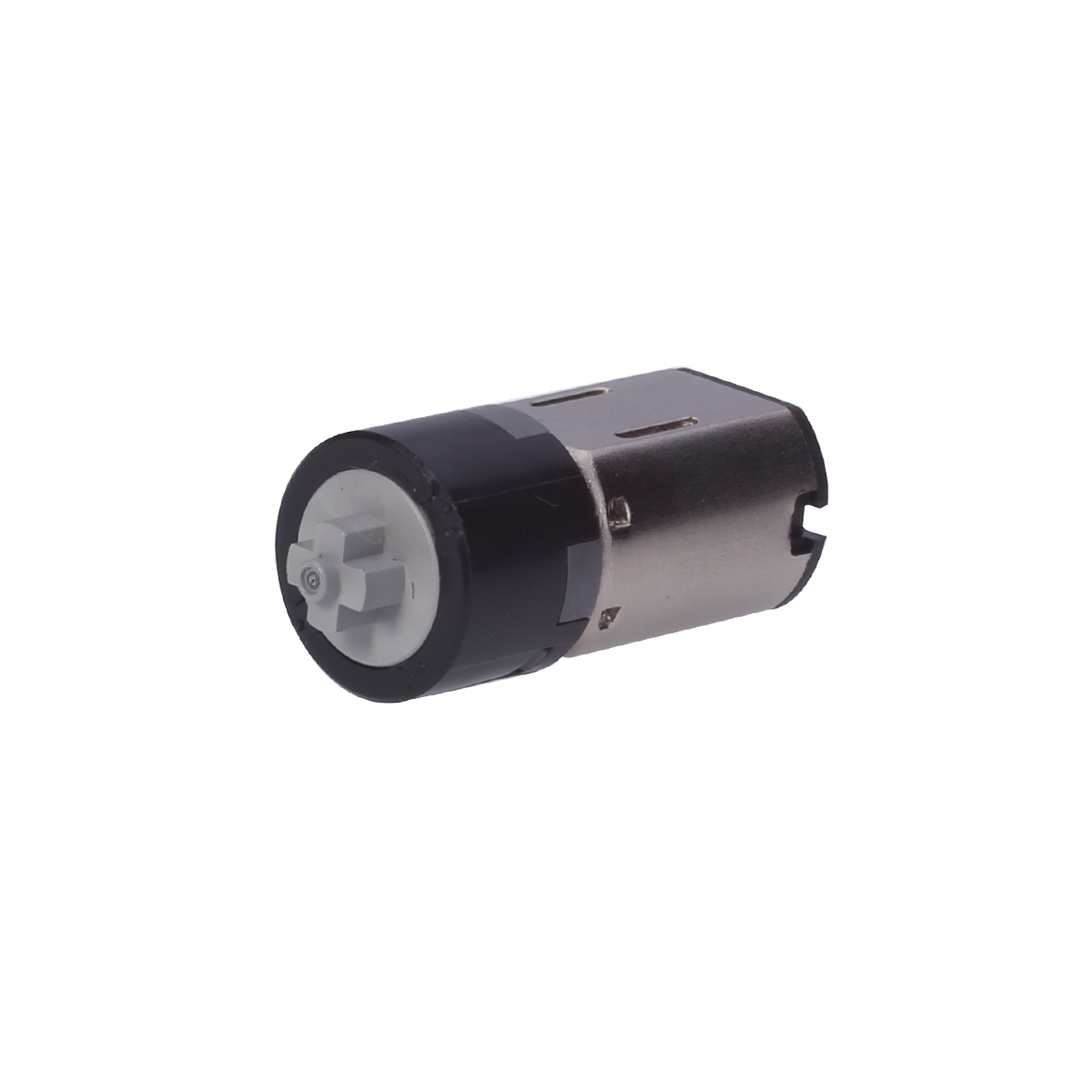

10mm 2.5V plastic gearmotor
| Specification | C1020—10PP—2C1020-110-2.5-10PP171-0053 |
|---|---|
| Voltage | 2.5 V |
| Terminal resistance | 3.7 Ω |
| No-load speed | 110 rpm |
| No-load current | 100 mA |
| Max torque | 37.2 mNm |
| Load torque | 9.8 mNm |
| Load speed | 80 rpm |
| Load current | 230 mA |
| Reduction ratio | 1/171 |
| Weight | 3.8 g |
| Operating temperature range | -10～+70 °C |
Applications
medical equipment
security systems and locks
audio and visual products
personal healthcare products
high-end hobby products
