Description

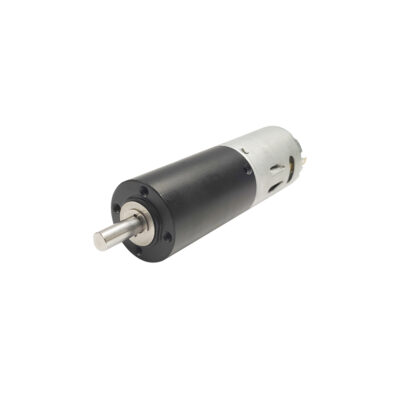

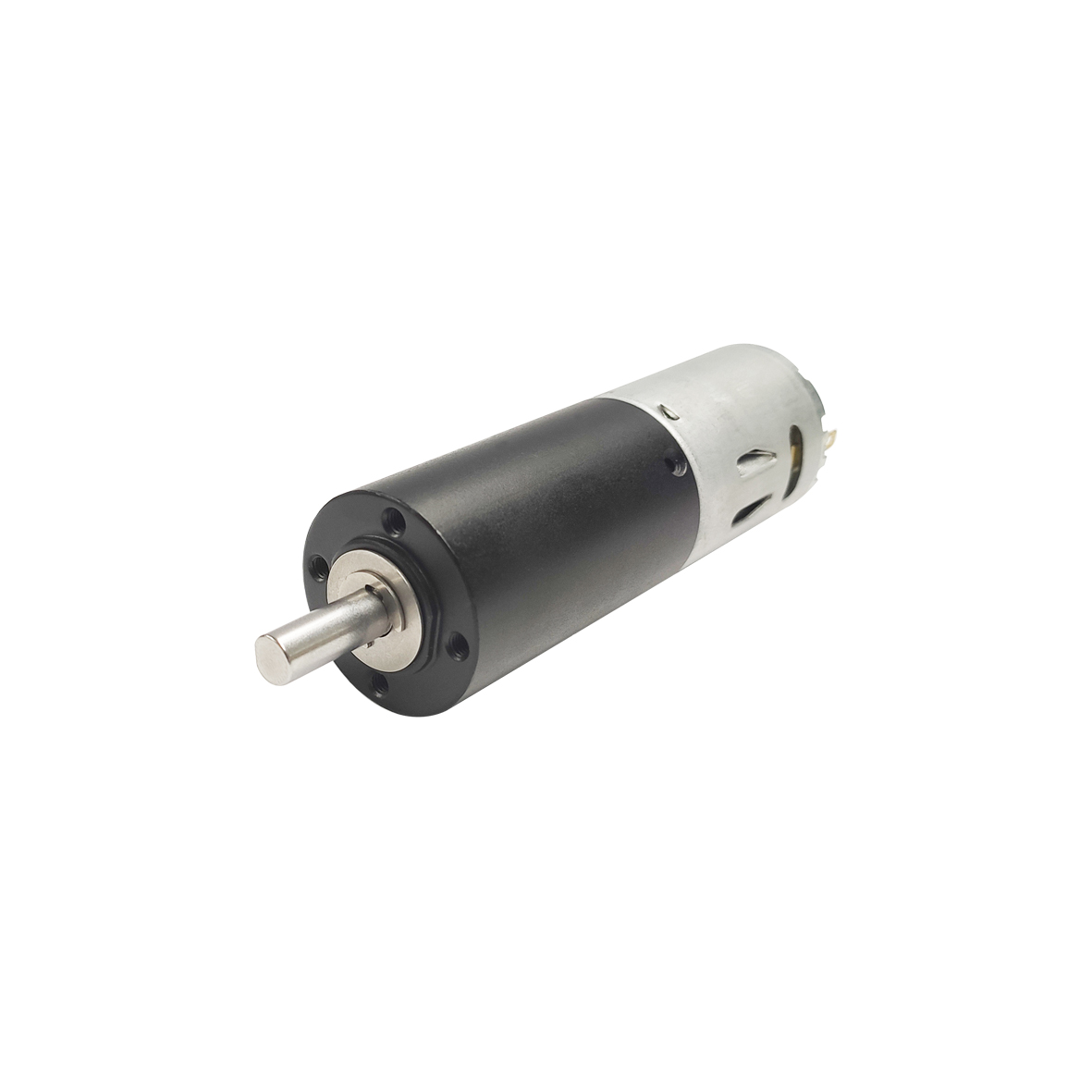

28mm planetary gearbox series
| Specification | B29**—28*P—B2950NH2B01-130-24.0 |
|---|---|
| Voltage | 24.0 V |
| Terminal resistance | 1.32 Ω |
| No-load speed | 13000 rpm |
| No-load current | 300 mA |
| Stall torque | 310 mNm |
| Stall current | 18180 mA |
| Nominal torque | 28 mNm |
| Nominal speed | 11830 rpm |
| Nominal current | 1910 mA |
| Max. output power | 105.52 W |
| Max. efficiency | 76 % |
| Back-EMF constant | 1.82 mV/rpm |
| Torque constant | 17.34 mNm/A |
| Speed/torque gradient | 41.93 rpm/mNm |
| Rotor inertia | 5 g·cm² |
| Weight | 140 g |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
