Description

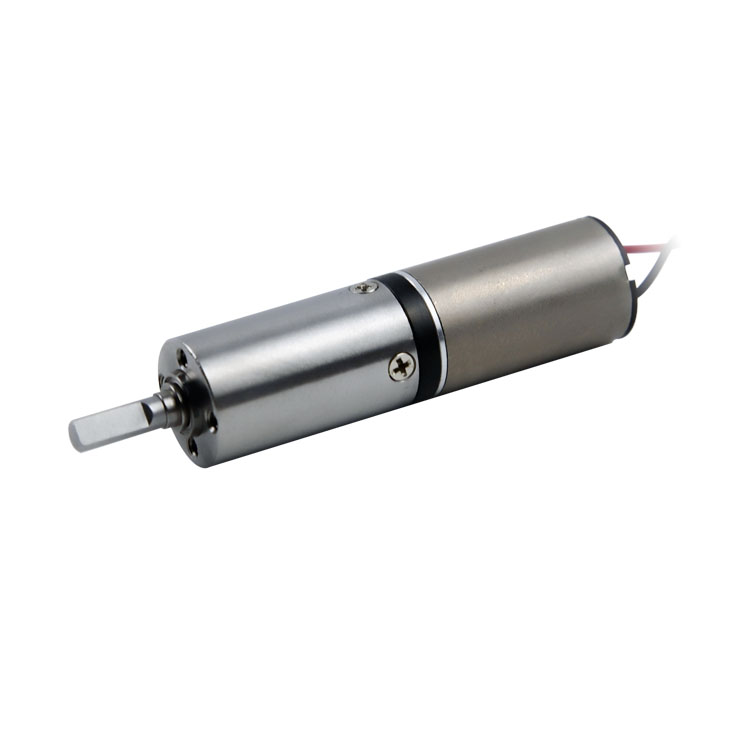

12mm planetary gearbox series
| Parameter | Unit | 12**—12*P—1230N5M15-113-12.0 |
|---|---|---|
| Voltage | V | 12.0 |
| Terminal resistance | Ohm | 10.4 |
| No-load speed | rpm | 11300 |
| No-load current | mA | 15 |
| Stall torque | mNm | 11.4 |
| Stall current | mA | 1150 |
| Nominal torque | mNm | 3.0 |
| Nominal speed | rpm | 8320 |
| Nominal current | mA | 310 |
| Max. output power | W | 3.37 |
| Max. efficiency | % | 78 |
| Back-EMF constant | mV/rpm | 1.05 |
| Torque constant | mNm/A | 10.1 |
| Speed/torque gradient | rpm/mNm | 995 |
| Rotor inertia | g·cm² | 0.25 |
| Weight | g | 17.7 |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
