Description

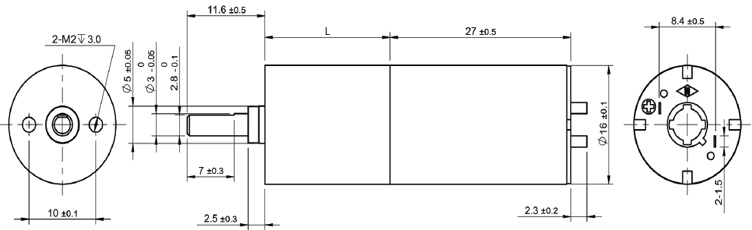

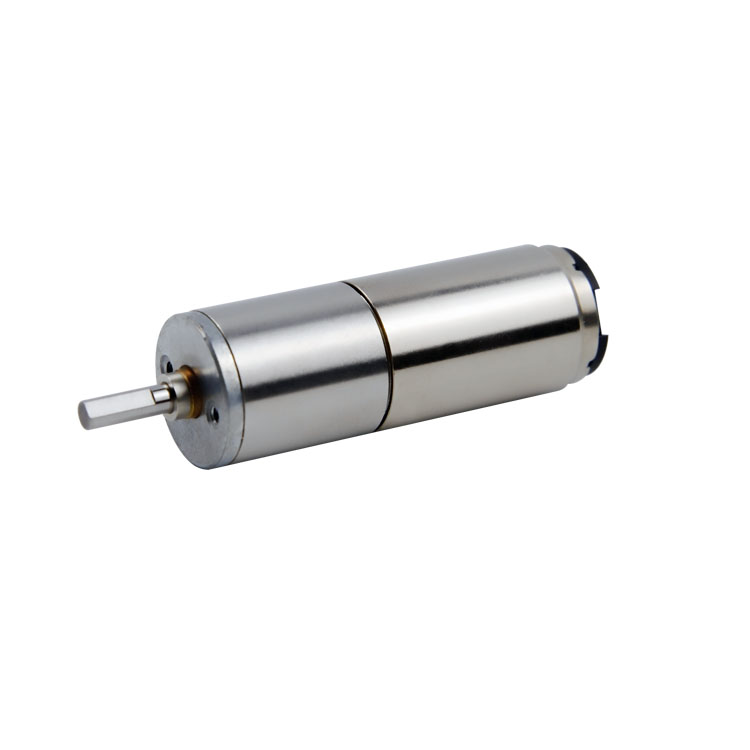

16mm planetary gearbox series
| Specification | B16**—16*P—B1635N2B01-112-3.0 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 0.35 Ω |
| No-load speed | 11250 rpm |
| No-load current | 100 mA |
| Stall torque | 21.3 mNm |
| Stall current | 8570 mA |
| Nominal torque | 1.50 mNm |
| Nominal speed | 10460 rpm |
| Nominal current | 700 mA |
| Max. output power | 6 W |
| Max. efficiency | 80 % |
| Back-EMF constant | 0.26 mV/rpm |
| Torque constant | 2.52 mNm/A |
| Speed/torque gradient | 530 rpm/mNm |
| Rotor inertia | 1.5 g·cm² |
| Weight | 40 g |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
