| Characteristics | L0612N3M08-550-4.5 | L0612N3M90-160-3.0 | L0612N3M63-250-4.5 |
|---|---|---|---|
| Voltage | 4.5 V | 3.0 V | 4.5 V |
| Terminal resistance | 6.50 Ω | 39.00 Ω | 23.30 Ω |
| No-load speed | 55000 rpm | 16030 rpm | 25000 rpm |
| No-load current | 60 mA | 8 mA | 20 mA |
| Stall torque | 0.45 mNm | 0.11 mNm | 0.27 mNm |
| Stall current | 692 mA | 77 mA | 193 mA |
| Load torque | 0.05 mNm | 0.05 mNm | 0.05 mNm |
| Load speed | 48900 rpm | 8740 rpm | 20320 rpm |
| Load current | 130 mA | 40 mA | 50 mA |
| Max. output power | 0.7 W | 0.05 W | 0.17 W |
| Max. efficiency | 49.8 % | 45.8 % | 46.1 % |
| Back-EMF constant | 0.07 mV/rpm | 0.17 mV/rpm | 0.16 mV/rpm |
| Torque constant | 0.71 mNm/A | 1.60 mNm/A | 1.54 mNm/A |
| Speed/torque gradient | 121951 rpm/mNm | 145727 rpm/mNm | 93633 rpm/mNm |
| Rotor inertia | 0.014 g·cm² | 0.014 g·cm² | 0.014 g·cm² |
| Weight | 1.3 g | 1.3 g | 1.3 g |
| Operating temperature range | -20~+80 | -20~+65 | -20~+65 |
Applications
mini UAV
remote control hobby products
small household appliances

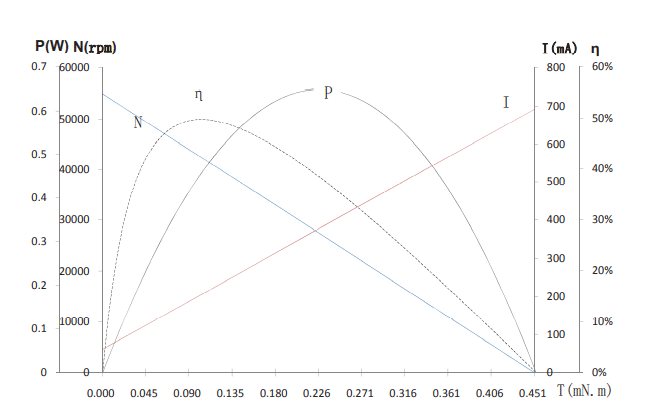

| Specification | L0612N3M08-550-4.5 |
|---|---|
| Voltage | 4.5 V |
| Terminal resistance | 6.50 Ω |
| No-load speed | 55000 rpm |
| No-load current | 60 mA |
| Stall torque | 0.45 mNm |
| Stall current | 692 mA |
| Load torque | 0.05 mNm |
| Load speed | 48900 rpm |
| Load current | 130 mA |
| Max. output power | 0.7 W |
| Max. efficiency | 49.8 % |
| Back-EMF constant | 0.07 mV/rpm |
| Torque constant | 0.71 mNm/A |
| Speed/torque gradient | 121951 rpm/mNm |
| Rotor inertia | 0.014 g·cm² |
| Weight | 1.3 g |
| Operating temperature range | -20~+80 ℃ |
Applications
mini UAV
remote control hobby products
small household appliances
| Specification | L0612N3M90-160-3.0 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 39.00 Ω |
| No-load speed | 16030 rpm |
| No-load current | 8 mA |
| Stall torque | 0.11 mNm |
| Stall current | 77 mA |
| Load torque | 0.05 mNm |
| Load speed | 8740 rpm |
| Load current | 40 mA |
| Max. output power | 0.05 W |
| Max. efficiency | 45.8 % |
| Back-EMF constant | 0.17 mV/rpm |
| Torque constant | 1.60 mNm/A |
| Speed/torque gradient | 145727 rpm/mNm |
| Rotor inertia | 0.014 g·cm² |
| Weight | 1.3 g |
| Operating temperature range | -20~+65 ℃ |
Applications
mini UAV
remote control hobby products
small household appliances
| Specification | L0612N3M63-250-4.5 |
|---|---|
| Voltage | 4.5 V |
| Terminal resistance | 23.30 Ω |
| No-load speed | 25000 rpm |
| No-load current | 20 mA |
| Stall torque | 0.27 mNm |
| Stall current | 193 mA |
| Load torque | 0.05 mNm |
| Load speed | 20320 rpm |
| Load current | 50 mA |
| Max. output power | 0.17 W |
| Max. efficiency | 46.1 % |
| Back-EMF constant | 0.16 mV/rpm |
| Torque constant | 1.54 mNm/A |
| Speed/torque gradient | 93633 rpm/mNm |
| Rotor inertia | 0.014 g·cm² |
| Weight | 1.3 g |
| Operating temperature range | -20~+65 ℃ |
Applications
mini UAV
remote control hobby products
small household appliances
