Description

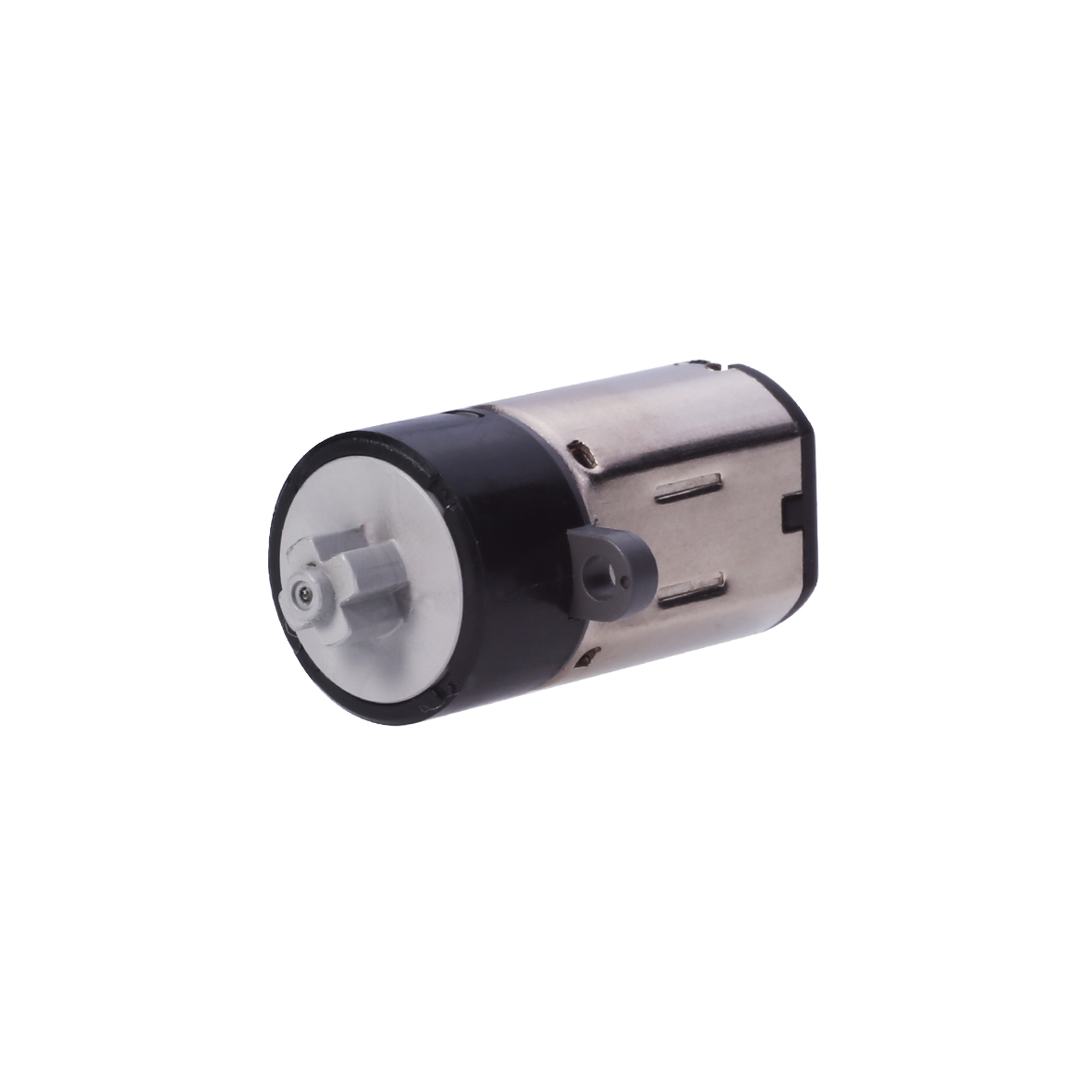

10mm planetary gearbox series
C1019—10PFC—C1019-180-3.0-10PFC171-0097
incl. 19% VAT
10mm planetary gearbox series
| Specification | C1019—10PFC—C1019-180-3.0-10PFC171-0097 |
|---|---|
| Voltage | 3 V |
| Terminal resistance | 1.8 Ω |
| No-load speed | 178 rpm |
| No-load current | 90 mA |
| Max torque | 72 mNm |
| Load torque | 9.8 mNm |
| Load speed | 153 rpm |
| Load current | 320 mA |
| Reduction ratio | 1/171 |
| Weight | 3.8 g |
| Operating temperature range | -10~+70 °C |
Applications
medical equipment
security systems and locks
audio and visual products
personal healthcare products
high-end hobby products
