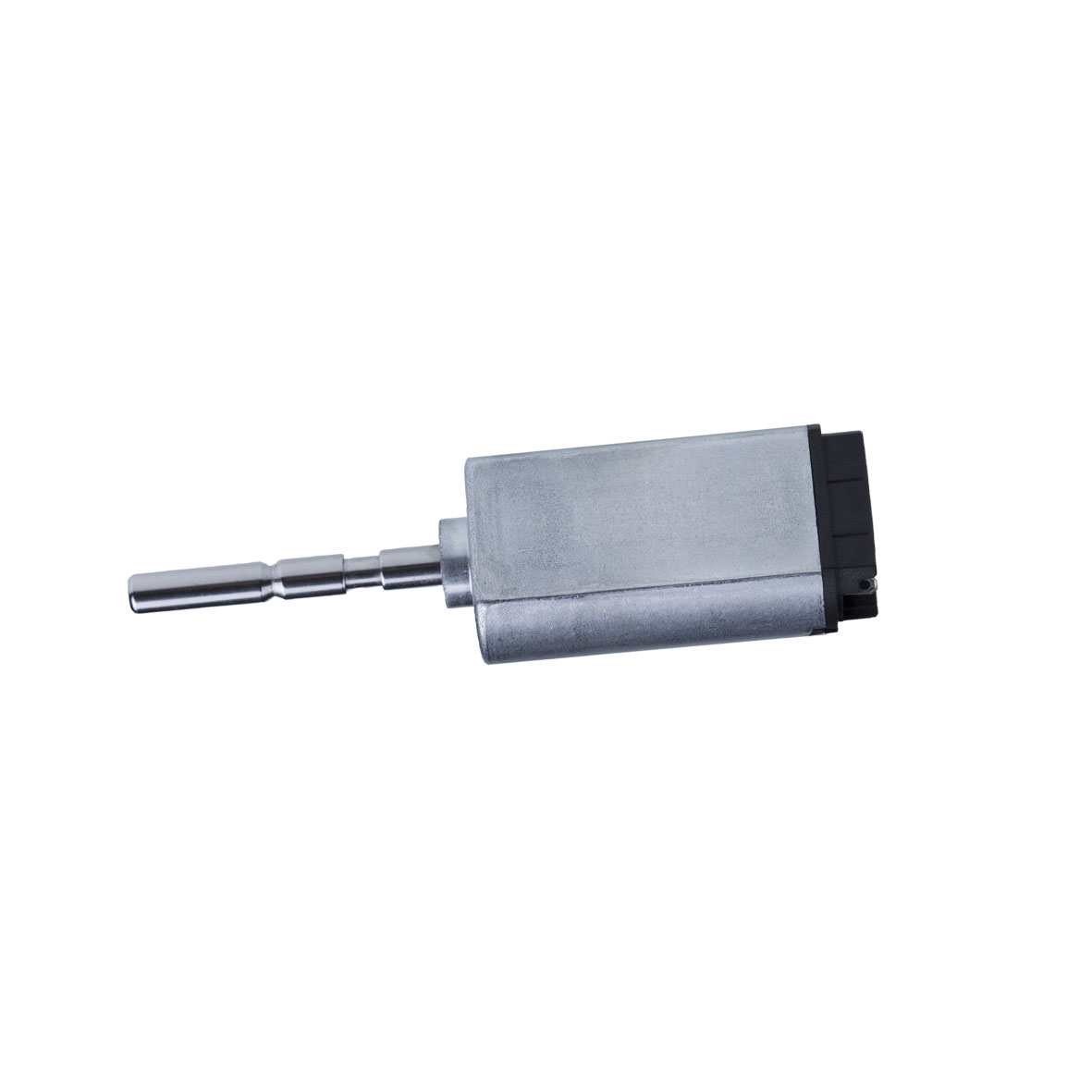

| Motor Characteristics | 06**—06*P—0615N5M01-122-3.0 | 06**—06*P—0615N5M02-185-3.0 | 06**—06*P—0615N5M03-295-6.0 |
|---|---|---|---|
| Voltage | 3.0 V | 3.0 V | 6.0 V |
| Terminal resistance | 19.0 Ω | 18.5 Ω | 10.1 Ω |
| No-load speed | 12200 rpm | 12200 rpm | 12200 rpm |
| No-load current | 10 mA | 18 mA | 20 mA |
| Stall torque | 0.33 mNm | 0.33 mNm | 0.33 mNm |
| Stall current | 160 mA | 160 mA | 160 mA |
| Nominal torque | 0.10 mNm | 0.05 mNm | 0.30 mNm |
| Nominal speed | 8500 rpm | 13770 rpm | 21230 rpm |
| Nominal current | 60 mA | 50 mA | 180 mA |
| Max. output power | 0.11 W | 0.09 W | 0.83 W |
| Max. efficiency | 56 % | 44 % | 67 % |
| Back-EMF constant | 0.2 mV/rpm | 0.1 mV/rpm | 0.2 mV/rpm |
| Torque constant | 2.2 mNm/A | 1.4 mNm/A | 1.9 mNm/A |
| Speed/torque gradient | 37000 rpm/mNm | 94600 rpm/mNm | 27600 rpm/mNm |
| Rotor inertia | 0.015 g·cm² | 0.015 g·cm² | 0.015 g·cm² |
| Weight | 2.5 g | 2.5 g | 2.5 g |
| Gearbox characteristics | Produkt | ||
|---|---|---|---|
| Gearbox stages | 2 | ||
| Reduction ratio | 23~41 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 3 | ||
| Reduction ratio | 110~226 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 4 | ||
| Reduction ratio | 531~1275 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
Produkt
| Specification | 06**—06*P—0615N5M01-122-3.0 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 19.0 Ω |
| No-load speed | 12200 rpm |
| No-load current | 10 mA |
| Stall torque | 0.33 mNm |
| Stall current | 160 mA |
| Nominal torque | 0.10 mNm |
| Nominal speed | 8500 rpm |
| Nominal current | 60 mA |
| Max. output power | 0.11 W |
| Max. efficiency | 56 % |
| Back-EMF constant | 0.2 mV/rpm |
| Torque constant | 2.2 mNm/A |
| Speed/torque gradient | 37000 rpm/mNm |
| Rotor inertia | 0.015 g·cm² |
| Weight | 2.5 g |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
Produkt
| Specification | 06**—06*P—0615N5M02-185-3.0 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 18.5 Ω |
| No-load speed | 18500 rpm |
| No-load current | 18 mA |
| Stall current | 0.33 mNm |
| Stall current | 160 mA |
| Nominal torque | 0.05 mNm |
| Nominal speed | 13770 rpm |
| Nominal current | 50 mA |
| Max. output power | 0.09 W |
| Max. efficiency | 44 % |
| Back-EMF constant | 0.1 mV/rpm |
| Torque constant | 1.4 mNm/A |
| Speed/torque gradient | 94600 rpm/mNm |
| Rotor inertia | 0.015 g·cm² |
| Weight | 2.5 g |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
Produkt
| Specification | 06**—06*P—0615N5M03-295-6.0 |
|---|---|
| Voltage | 6.0 V |
| Terminal resistance | 10.1 Ω |
| No-load speed | 29500 rpm |
| No-load current | 20 mA |
| Stall current | 1.07 mNm |
| Stall current | 590 mA |
| Nominal torque | 0.30 mNm |
| Nominal speed | 21230 rpm |
| Nominal current | 180 mA |
| Max. output power | 0.83 W |
| Max. efficiency | 67 % |
| Back-EMF constant | 0.2 mV/rpm |
| Torque constant | 1.9 mNm/A |
| Speed/torque gradient | 27600 rpm/mNm |
| Rotor inertia | 0.015 g·cm² |
| Weight | 2.5 g |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
