Description

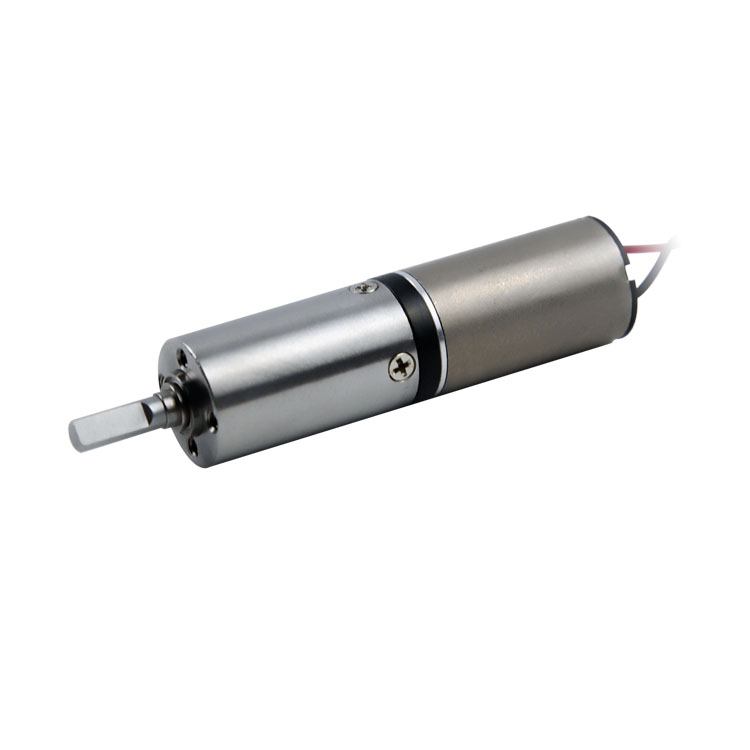

12mm planetary gearbox series
| Specification | B12**—12*P—B1220N2B01-175-5.0 |
|---|---|
| Voltage | 5.0 V |
| Terminal resistance | 2.0 Ω |
| No-load speed | 17500 rpm |
| No-load current | 180 mA |
| Stall torque | 5.9 mNm |
| Stall current | 2500 mA |
| Nominal torque | 1.40 mNm |
| Nominal speed | 13330 rpm |
| Nominal current | 730 mA |
| Max. output power | 2.69 W |
| Max. efficiency | 54 % |
| Back-EMF constant | 0.27 mV/rpm |
| Torque constant | 2.53 mNm/A |
| Speed/torque gradient | 2979 rpm/mNm |
| Rotor inertia | 0.17 g·cm² |
| Weight | 9.5 g |
Applications
medical equipment
scientific instruments
industrial equipment
