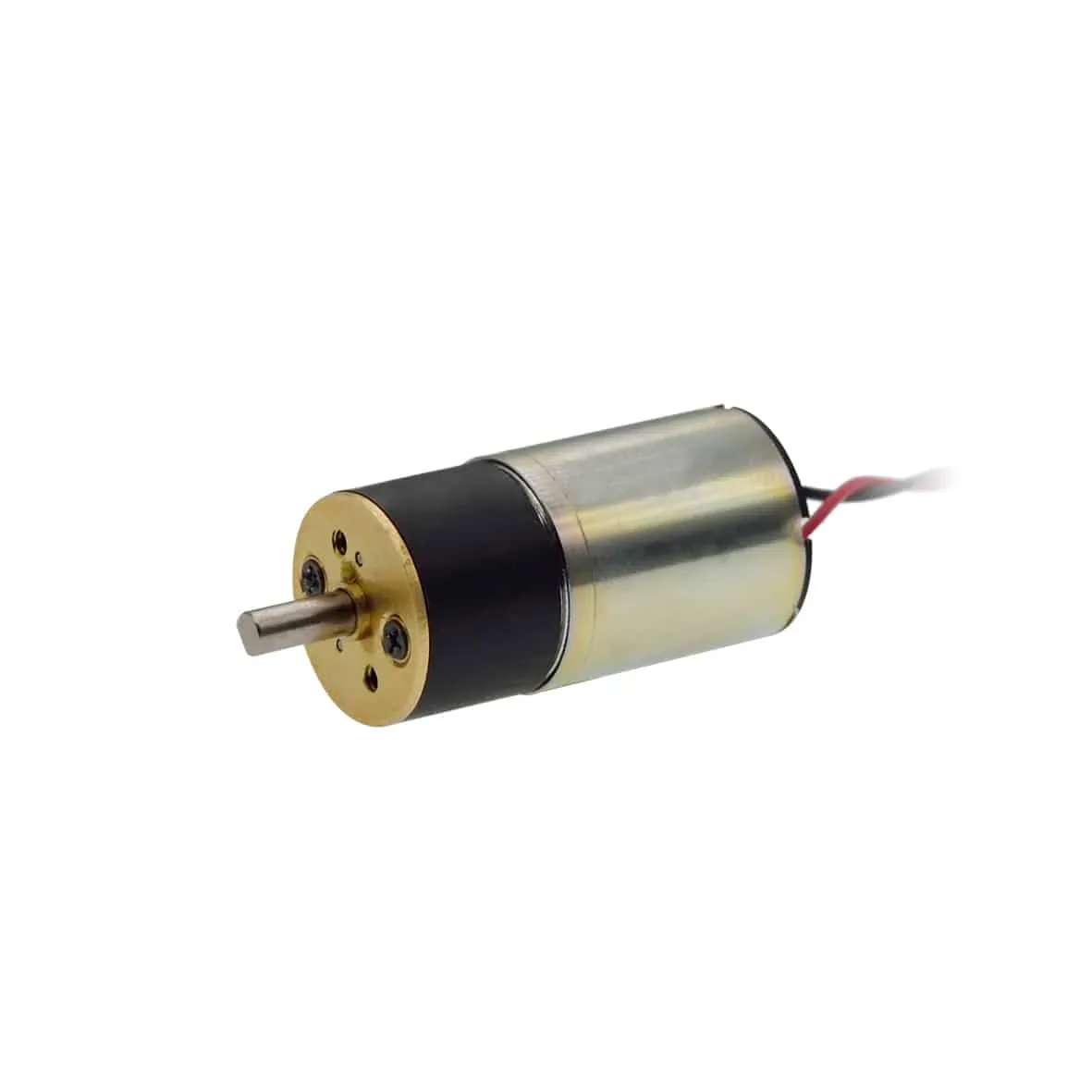

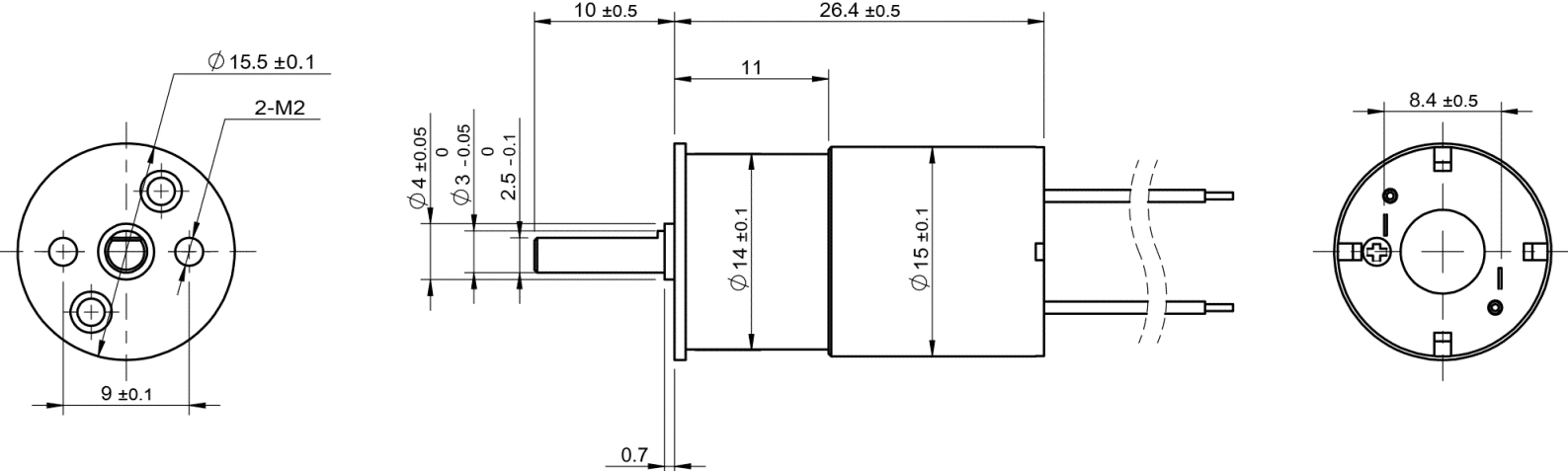

| Motor Characteristics | 1526—16MS—1515N5M07-220-18.0 | 1526—16MS—1515N5M10-220-12.0 |
|---|---|---|
| Voltage | 18.0 V | 12.0 A |
| Terminal resistance | 30.8 Ω | 8.1 Ω |
| No-load speed | 22000 rpm | 24000 rpm |
| No-load current | 15 mA | 50 mA |
| Stall torque | 4.3 mNm | 6.6 mNm |
| Stall current | 580 mA | 1480 mA |
| Nominal torque | 1.0 mNm | 1.5 mNm |
| Nominal speed | 16890 rpm | 18540 rpm |
| Nominal current | 150 mA | 380 mA |
| Max. output power | 2.48 W | 4.15 W |
| Max. efficiency | 71 % | 67 % |
| Back-EMF constant | 0.8 mV/rpm | 0.5 mV/rpm |
| Torque constant | 7.6 mNm/A | 4.6 mNm/A |
| Speed/torque gradient | 5110 rpm/mNm | 3640 rpm/mNm |
| Rotor inertia | 0.21 g·cm² | 0.21 g·cm² |
| Weight | 14.2 g | 14.2 g |
| Gearbox characteristics | Produkt | ||
|---|---|---|---|
| Gearbox stages | 2 | ||
| Reduction ratio | 3.7.10 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 4 | ||
| Reduction ratio | 16.17.20.30.35 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 4 | ||
| Reduction ratio | 50.63 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 4 | ||
| Reduction ratio | 70.86 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 5 | ||
| Reduction ratio | 115.150 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 5 | ||
| Reduction ratio | 210.250 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 5 | ||
| Reduction ratio | 360 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
Applications
medical equipment
scientific instruments
industrial equipment
| Specification | 1526—16MS—1515N5M07-220-18.0 |
|---|---|
| Voltage | 18.0 V |
| Terminal resistance | 30.8 Ω |
| No-load speed | 22000 rpm |
| No-load current | 15 mA |
| Stall torque | 4.3 mNm |
| Stall current | 580 mA |
| Nominal torque | 1.0 mNm |
| Nominal speed | 16890 rpm |
| Nominal current | 150 mA |
| Max. output power | 2.48 W |
| Max. efficiency | 71 % |
| Back-EMF constant | 0.8 mV/rpm |
| Torque constant | 7.6 mNm/A |
| Speed/torque gradient | 5110 rpm/mNm |
| Rotor inertia | 0.21 g·cm² |
| Weight | 14.2 g |
Applications
medical equipment
scientific instruments
industrial equipment
| Specification | 1526—16MS—1515N5M10-220-12.0 |
|---|---|
| Voltage | 12.0 A |
| Terminal resistance | 8.1 Ω |
| No-load speed | 24000 rpm |
| No-load current | 50 mA |
| Stall torque | 6.6 mNm |
| Stall current | 1480 mA |
| Nominal torque | 1.5 mNm |
| Nominal speed | 18540 rpm |
| Nominal current | 380 mA |
| Max. output power | 4.15 W |
| Max. efficiency | 67 % |
| Back-EMF constant | 0.5 mV/rpm |
| Torque constant | 4.6 mNm/A |
| Speed/torque gradient | 3640 rpm/mNm |
| Rotor inertia | 0.21 g·cm² |
| Weight | 14.2 g |
Applications
medical equipment
scientific instruments
industrial equipment
