Description
Flange dimensions: 180 mm
Rated Output Power: 2000 – 7500 W
Rated Torque: 9,55 – 47,75 Nm

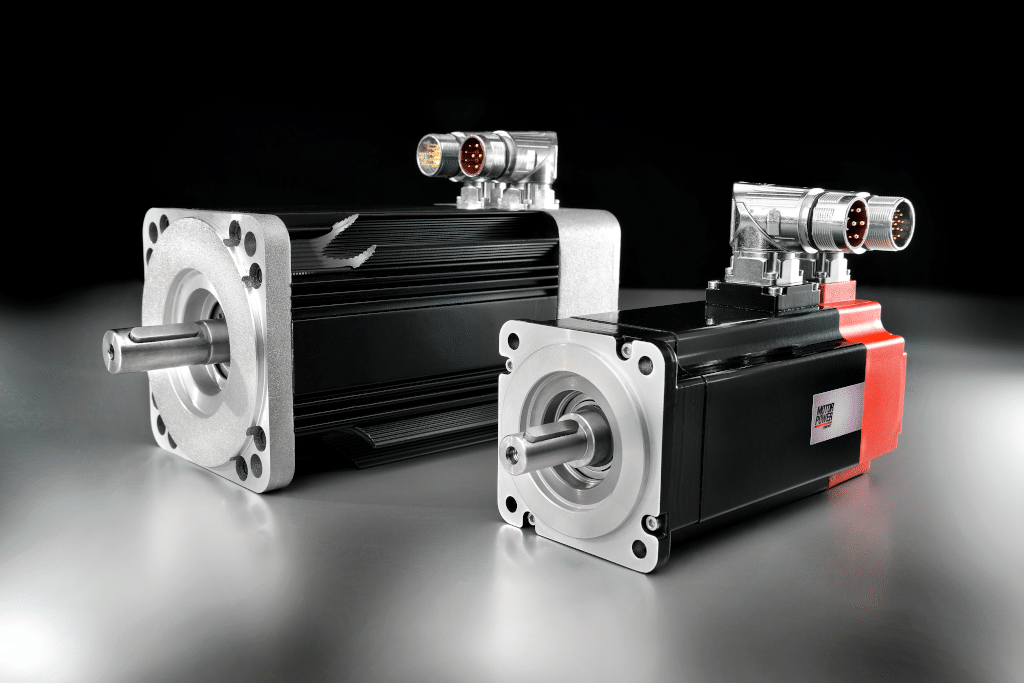

TC-E 180 6G L2 4
incl. 19% VAT
Flange dimensions: 180 mm
Rated Output Power: 2000 – 7500 W
Rated Torque: 9,55 – 47,75 Nm
| Specification | TC-E 180 6G L2 4 |
|---|---|
| Continuous Stall Torque | 47.75 Nm |
| Peak Torque | 140 Nm |
| Nominal working Speed | 1500 rpm |
| Maximum working speed | 3500 rpm |
| Nominal Torque | 47.75 Nm |
| Nominal Current | 28.4 Arms |
| Nominal Power | 7.5 kW |
| Rated winding voltage | 400 Vac |
| Maximum winding voltage | 650 Vdc |
| Maximum voltage to ground | 265 Vac |
| Maximum current | 88.4 Arms |
| Continuous Stall current | 27.48 Arms |
| Voltage Constant | 110 Vrms/Krpm |
| Torque Constant | 1.82 Nm/Arms |
| Winding resistance | 0.115 Ω |
| Winding inductance qu-v | 2.8 mH |
| Winding inductance du-v | 2.63 mH |
| Rotor inertia without holding brake | 142.69 kg·cm² |
| Rotor inertia with holding brake | 158.69 kg·cm² |
| Rotor high inertia without holding brake | – |
| Rotor high inertia with holding brake | – |
| Mass without holding brake | 41.7 Kg |
| Mass with holding brake | 46.2 Kg |
| High inertia mass without holding brake | – |
| High inertia mass with holding brake | – |
| Thermal time constant | 60 min |
| Maximum radial shaft load | 1200 N |
| Maximum axial shaft load | 49.7 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
