Description

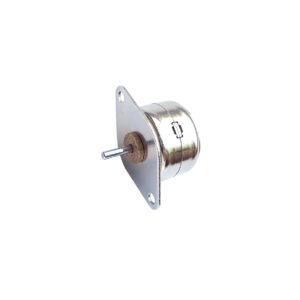

12mm micro step gearmotor
| Specification | S15**—12MS—1511P0209-013-6.5-0019 |
|---|---|
| No. of phase | 2 |
| Excitation Mode | 2-2 |
| Voltage | 6.5 V |
| Resistance | 12.6 Ω |
| Step Angle | 18° Deg |
| Current | 0.5 A |
| No-load Pull-in Frequency | ≥1200 pps |
| No-load Pull-out Frequency | ≥1300 pps |
| Detent Torque | 0.40 mNm |
| Pull-in Torque | 1 mNm |
| Load pull-in Frequency | ≥500 pps |
| Weight | 8.8 g |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
