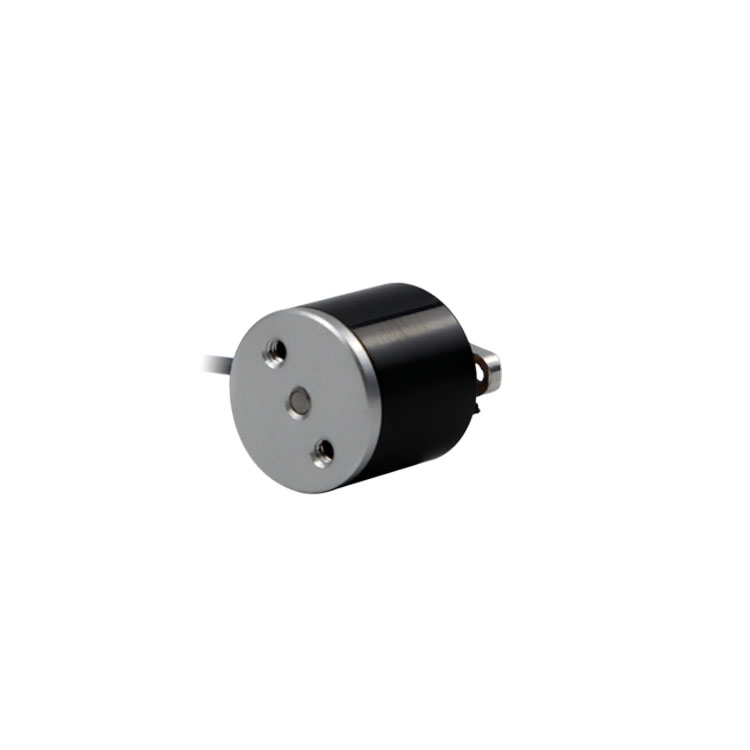

Flange dimensions: 40 mm
Rated Output Power: 60 – 100 W
Rated Torque: 0,19 – 0,32 Nm
Rated Speed: 3000 rpm
| Specification | TC-X 40 0,16 32 | TC-X 40 0,16 01 | TC-X 40 0,32 01 | TC-X 40 0,32 21 |
|---|---|---|---|---|
| Continous Stall Torque (ambient temperature 0 to +40°C) | 0.21 Nm | 0.21 Nm | 0.34 Nm | 0.34 Nm |
| Peak Torque (ambient temperature 0 to +40°C) | 0.48 Nm | 0.48 Nm | 0.96 Nm | 0.96 Nm |
| Nominal Torque (ambient temperature 0 to +40°C) | 0.19 Nm | 0.19 Nm | 0.32 Nm | 0.32 Nm |
| Rated Voltage (ambient temperature 0 to +40°C) | 24 Vdc | 48 Vdc | 48 Vdc | 230 Vdc |
| Nominal power (ambient temperature 0 to +40°C) | 60 W | 60 W | 100 W | 120 W |
| Continuous stall Current (ambient temperature 0 to +40°C) | 4.23 Arms | 2.23 Arms | 3.61 Arms | 0.65 Arms |
| Maximun Current (ambient temperature 0 to +40°C) | 9.67 Arms | 5.09 Arms | 10.18 Arms | 1.82 Arms |
| Nominal Current (ambient temperature 0 to +40°C) | 3.96 Arms | 2.09 Arms | 3.48 Arms | 0.62 Arms |
| Nominal working Speed (ambient temperature 0 to +40°C) | 3000 rpm | 3000 rpm | 3000 rpm | 3000 rpm |
| Maximum working speed 24VDC (ambient temperature 0 to +40°C) | 5000 rpm | – | – | – |
| Maximum working speed 48VDC (ambient temperature 0 to +40°C) | – | 5000 rpm | 5000 rpm | – |
| Maximum working speed 230VAC (ambient temperature 0 to +40°C) | – | – | – | 5000 rpm |
| Torque Constant (ambient temperature 0 to +40°C) | 0.05 Nm/Arms | 0.094 Nm/Arms | 0.094 Nm/Arms | 0.526 Nm/Arms |
| Voltage Constant (ambient temperature 0 to +40°C) | 3 Vrms/Krpm | 5.7 Vrms/Krpm | 5.7 Vrms/Krpm | 31.8 Vrms/Krpm |
| Winding resistance (ambient temperature 0 to +40°C) | 1 Ω | 3.2 Ω | 1.1 Ω | 36.2 Ω |
| Winding inductance (ambient temperature 0 to +40°C) | 0.7 mH | 2.5 mH | 1.42 mH | 44 mH |
| Electrical time constant (ambient temperature 0 to +40°C) | 0.7 ms | 0.78 ms | 1.29 ms | 1.21 ms |
| Thermal Resistance (ambient temperature 0 to +40°C) | 2.38 °C/W | 2.38 °C/W | 2.3 °C/W | 2.3 °C/W |
| Mechanical time constant (ambient temperature 0 to +40°C) | 1.62 ms | 1.47 ms | 0.88 ms | 0.92 ms |
| Rotor Inertia without feedback (ambient temperature 0 to +40°C) | 0.027 kg·cm² | 0.027 kg·cm² | 0.047 kg·cm² | 0.047 kg·cm² |
| Mass (ambient temperature 0 to +40°C) | 0.4 Kg | 0.4 Kg | 0.54 Kg | 0.54 Kg |
| Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C) | 30 N | 30 N | 30 N | 30 N |
| Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C) | 180 N | 180 N | 180 N | 180 N |
| Family Specification | Produkt |
|---|---|
| Time Rating | Continous |
| Insulation Class | F |
| Enclosure | Totally enclosed. Self-cooled |
| Protection Class | IP 65 standard on the body |
| Insulation System UL/CSA | cURus , DV155J File nr. : E216686 |
| Ambient Temperature | -40 to 80 °C |
| Ambient Humidity | 5 to 85% (non-condensing) |
| Poles | 8 |
| Thermal Protection | Not available |
| Certification | CE |
| Family Overview | Produkt |
|---|---|
| Flange dimensions | 40 mm |
| Rated Output Power | 60 – 100 Watt |
| Rated Torque | 0,19 – 0,32 Nm |
| Rated Speed | 3000 rpm |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Specification | TC-X 40 0,16 32 |
|---|---|
| Continous Stall Torque (ambient temperature 0 to +40°C) | 0.21 Nm |
| Peak Torque (ambient temperature 0 to +40°C) | 0.48 Nm |
| Nominal Torque (ambient temperature 0 to +40°C) | 0.19 Nm |
| Rated Voltage (ambient temperature 0 to +40°C) | 24 Vdc |
| Nominal power (ambient temperature 0 to +40°C) | 60 W |
| Continuous stall Current (ambient temperature 0 to +40°C) | 4.23 Arms |
| Maximun Current (ambient temperature 0 to +40°C) | 9.67 Arms |
| Nominal Current (ambient temperature 0 to +40°C) | 3.96 Arms |
| Nominal working Speed (ambient temperature 0 to +40°C) | 3000 rpm |
| Maximum working speed 24VDC (ambient temperature 0 to +40°C) | 5000 rpm |
| Maximum working speed 48VDC (ambient temperature 0 to +40°C) | – |
| Maximum working speed 230VAC (ambient temperature 0 to +40°C) | – |
| Torque Constant (ambient temperature 0 to +40°C) | 0.05 Nm/Arms |
| Voltage Constant (ambient temperature 0 to +40°C) | 3 Vrms/Krpm |
| Winding resistance (ambient temperature 0 to +40°C) | 1 Ω |
| Winding inductance (ambient temperature 0 to +40°C) | 0.7 mH |
| Electrical time constant (ambient temperature 0 to +40°C) | 0.7 ms |
| Thermal Resistance (ambient temperature 0 to +40°C) | 2.38 °C/W |
| Mechanical time constant (ambient temperature 0 to +40°C) | 1.62 ms |
| Rotor Inertia without feedback (ambient temperature 0 to +40°C) | 0.027 kg·cm² |
| Mass (ambient temperature 0 to +40°C) | 0.4 Kg |
| Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C) | 30 N |
| Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C) | 180 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Specification | TC-X 40 0,16 01 |
|---|---|
| Continous Stall Torque (ambient temperature 0 to +40°C) | 0.21 Nm |
| Peak Torque (ambient temperature 0 to +40°C) | 0.48 Nm |
| Nominal Torque (ambient temperature 0 to +40°C) | 0.19 Nm |
| Rated Voltage (ambient temperature 0 to +40°C) | 48 Vdc |
| Nominal power (ambient temperature 0 to +40°C) | 60 W |
| Continuous stall Current (ambient temperature 0 to +40°C) | 2.23 Arms |
| Maximun Current (ambient temperature 0 to +40°C) | 5.09 Arms |
| Nominal Current (ambient temperature 0 to +40°C) | 2.09 Arms |
| Nominal working Speed (ambient temperature 0 to +40°C) | 3000 rpm |
| Maximum working speed 24VDC (ambient temperature 0 to +40°C) | – |
| Maximum working speed 48VDC (ambient temperature 0 to +40°C) | 5000 rpm |
| Maximum working speed 230VAC (ambient temperature 0 to +40°C) | – |
| Torque Constant (ambient temperature 0 to +40°C) | 0.094 Nm/Arms |
| Voltage Constant (ambient temperature 0 to +40°C) | 5.7 Vrms/Krpm |
| Winding resistance (ambient temperature 0 to +40°C) | 3.2 Ω |
| Winding inductance (ambient temperature 0 to +40°C) | 2.5 mH |
| Electrical time constant (ambient temperature 0 to +40°C) | 0.78 ms |
| Thermal Resistance (ambient temperature 0 to +40°C) | 2.38 °C/W |
| Mechanical time constant (ambient temperature 0 to +40°C) | 1.47 ms |
| Rotor Inertia without feedback (ambient temperature 0 to +40°C) | 0.027 kg·cm² |
| Mass (ambient temperature 0 to +40°C) | 0.4 Kg |
| Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C) | 30 N |
| Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C) | 180 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Specification | TC-X 40 0,32 01 |
|---|---|
| Continous Stall Torque (ambient temperature 0 to +40°C) | 0.34 Nm |
| Peak Torque (ambient temperature 0 to +40°C) | 0.96 Nm |
| Nominal Torque (ambient temperature 0 to +40°C) | 0.32 Nm |
| Rated Voltage (ambient temperature 0 to +40°C) | 48 Vdc |
| Nominal power (ambient temperature 0 to +40°C) | 100 W |
| Continuous stall Current (ambient temperature 0 to +40°C) | 3.61 Arms |
| Maximun Current (ambient temperature 0 to +40°C) | 10.18 Arms |
| Nominal Current (ambient temperature 0 to +40°C) | 3.48 Arms |
| Nominal working Speed (ambient temperature 0 to +40°C) | 3000 rpm |
| Maximum working speed 24VDC (ambient temperature 0 to +40°C) | – |
| Maximum working speed 48VDC (ambient temperature 0 to +40°C) | 5000 rpm |
| Maximum working speed 230VAC (ambient temperature 0 to +40°C) | – |
| Torque Constant (ambient temperature 0 to +40°C) | 0.094 Nm/Arms |
| Voltage Constant (ambient temperature 0 to +40°C) | 5.7 Vrms/Krpm |
| Winding resistance (ambient temperature 0 to +40°C) | 1.1 Ω |
| Winding inductance (ambient temperature 0 to +40°C) | 1.42 mH |
| Electrical time constant (ambient temperature 0 to +40°C) | 1.29 ms |
| Thermal Resistance (ambient temperature 0 to +40°C) | 2.3 °C/W |
| Mechanical time constant (ambient temperature 0 to +40°C) | 0.88 ms |
| Rotor Inertia without feedback (ambient temperature 0 to +40°C) | 0.047 kg·cm² |
| Mass (ambient temperature 0 to +40°C) | 0.54 Kg |
| Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C) | 30 N |
| Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C) | 180 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Specification | TC-X 40 0,32 21 |
|---|---|
| Continous Stall Torque (ambient temperature 0 to +40°C) | 0.34 Nm |
| Peak Torque (ambient temperature 0 to +40°C) | 0.96 Nm |
| Nominal Torque (ambient temperature 0 to +40°C) | 0.32 Nm |
| Rated Voltage (ambient temperature 0 to +40°C) | 230 Vdc |
| Nominal power (ambient temperature 0 to +40°C) | 120 W |
| Continuous stall Current (ambient temperature 0 to +40°C) | 0.65 Arms |
| Maximun Current (ambient temperature 0 to +40°C) | 1.82 Arms |
| Nominal Current (ambient temperature 0 to +40°C) | 0.62 Arms |
| Nominal working Speed (ambient temperature 0 to +40°C) | 3000 rpm |
| Maximum working speed 24VDC (ambient temperature 0 to +40°C) | – |
| Maximum working speed 48VDC (ambient temperature 0 to +40°C) | – |
| Maximum working speed 230VAC (ambient temperature 0 to +40°C) | 5000 rpm |
| Torque Constant (ambient temperature 0 to +40°C) | 0.526 Nm/Arms |
| Voltage Constant (ambient temperature 0 to +40°C) | 31.8 Vrms/Krpm |
| Winding resistance (ambient temperature 0 to +40°C) | 36.2 Ω |
| Winding inductance (ambient temperature 0 to +40°C) | 44 mH |
| Electrical time constant (ambient temperature 0 to +40°C) | 1.21 ms |
| Thermal Resistance (ambient temperature 0 to +40°C) | 2.3 °C/W |
| Mechanical time constant (ambient temperature 0 to +40°C) | 0.92 ms |
| Rotor Inertia without feedback (ambient temperature 0 to +40°C) | 0.047 kg·cm² |
| Mass (ambient temperature 0 to +40°C) | 0.54 Kg |
| Maximum axial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C) | 30 N |
| Maximun radial shaft load applied on the shaft’s center (ambient temperature 0 to +40°C) | 180 N |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
