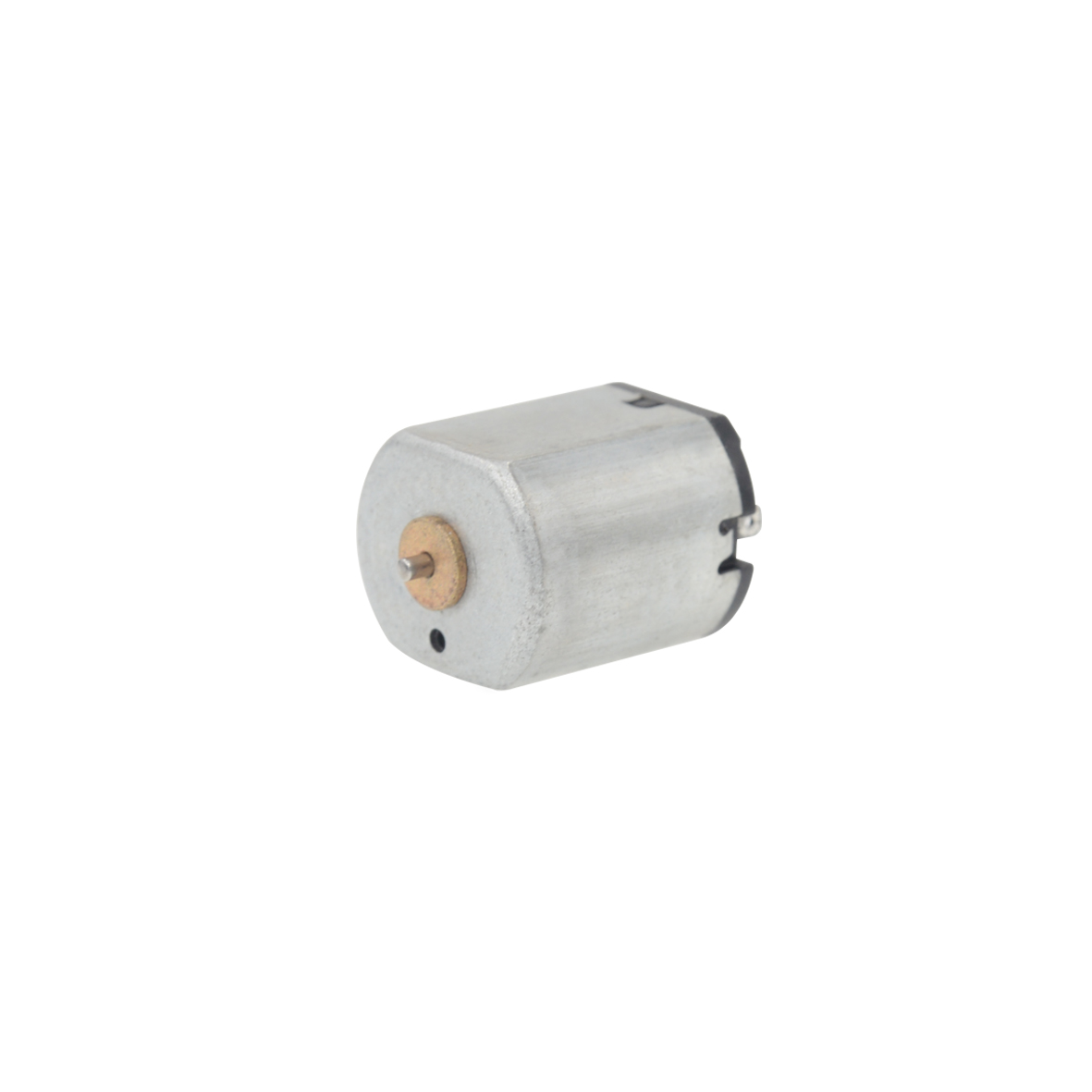

| Motor Characteristics | 10**M5—M—1025N5M04-115-12.0 |
|---|---|
| Voltage | 12.0 V |
| Terminal resistance | 28.0 Ω |
| No-load speed | 11500 rpm |
| No-load current | 10 mA |
| Stall torque | 4.2 mNm |
| Stall current | 430 mA |
| Nominal torque | 1.0 mNm |
| Nominal speed | 8100 rpm |
| Nominal current | 140 mA |
| Back-EMF constant | 1.02 mV/rpm |
| Torque constant | 9.73 mNm/A |
| Gearbox characteristics | Produkt | ||
|---|---|---|---|
| Gearbox stages | 1 | ||
| Reduction ratio | 4 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 2 | ||
| Reduction ratio | 16 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 3 | ||
| Reduction ratio | 64 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 4 | ||
| Reduction ratio | 256 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 5 | ||
| Reduction ratio | 1024 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
||
| Gearbox stages | 6 | ||
| Reduction ratio | 4096 | ||
| Max. rated torque |
|
||
| Max. momentary torque |
|
||
| Length（L） |
|
| Encoder Characteristics | Produkt | ||
|---|---|---|---|
| Number of channels | 2 | ||
| Counts per turn |
|
||
| Supply voltage |
|
||
| Max. speed |
|
||
| Phase shift |
|
||
| Output signal | TTL | ||
| Diameter |
|
||
| Length |
|
||
| Number of channels | 3 | ||
| Counts per turn |
|
||
| Supply voltage |
|
||
| Max. speed |
|
||
| Phase shift |
|
||
| Output signal | TTL | ||
| Diameter |
|
||
| Length |
|
Applications
medical equipment
intelligent prostheses
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
| Specification | 10**M5—M—1025N5M04-115-12.0 |
|---|---|
| Voltage | 12.0 V |
| Terminal resistance | 28.0 Ω |
| No-load speed | 11500 rpm |
| No-load current | 10 mA |
| Stall torque | 4.2 mNm |
| Stall current | 430 mA |
| Nominal torque | 1.0 mNm |
| Nominal speed | 8100 rpm |
| Nominal current | 140 mA |
| Back-EMF constant | 1.02 mV/rpm |
| Torque constant | 9.73 mNm/A |
Applications
medical equipment
intelligent prostheses
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
