MLM1 NEMA 14 Non-captive Linear Step/direction input IP20

MLM1 NEMA 14 with

  • Pulse/Direction
  • Motion Control (RS485)
  • CANopen
  • Ethernet (MCode, Modbus TCP, Ethernet IP, Profinet I/O)
SKU: MLM1 NEMA 14-MLM1 NEMA 14 Non-captive Linear Step/direction input IP20 Category:

Description

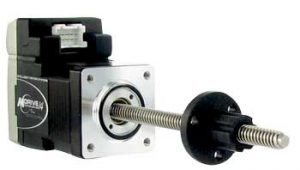

MDrive Plus NEMA size 14 (36 mm) integrated stepper motor linear actuator. This is a Step/direction input with SPI interface for parameterization.
Holding torque range oz-in (N-cm): 18…36 (13 … 25)
I/O connector options: Wire Crimp
Com connector: IDC, Wire Crimp
