| Specification | L0710N5M61-780-8.0 | L0710N5M51-325-3.0 | L0710N5M08-618-5.0 |
|---|---|---|---|
| Voltage | 8.0 V | 3.0 V | 5.0 V |
| Terminal resistance | 7.2 Ω | 6.3 Ω | 3.4 Ω |
| No-load speed | 78050 rpm | 32500 rpm | 61800 rpm |
| No-load current | 95 mA | 50 mA | 80 mA |
| Stall torque | 0.9 mNm | 0.3 mNm | 1.0 mNm |
| Stall current | 1110 mA | 480 mA | 1470 mA |
| Load torque | 0.55 mNm | 0.12 mNm | 0.12 mNm |
| Load speed | 30880 rpm | 20890 rpm | 54500 rpm |
| Load current | 710 mA | 200 mA | 240 mA |
| Max. output power | 1.9 W | 0.29 W | 1.65 W |
| Max. efficiency | 50.2 % | 45.4 % | 58.9 % |
| Back-EMF constant | 0.09 mV/rpm | 0.08 mV/rpm | 0.08 mV/rpm |
| Torque constant | 0.90 mNm/A | 0.79 mNm/A | 0.73 mNm/A |
| Speed/torque gradient | 85769 rpm/mNm | 96726 rpm/mNm | 60827 rpm/mNm |
| Rotor inertia | 0.02 g·cm² | 0.02 g·cm² | 0.02 g·cm² |
| Weight | 1.6 g | 1.6 g | 1.6 g |
| Operating temperature range | -20~+100 | -20~+100 | -20~+100 |
Applications
mini UAV
remote control hobby products
small household appliances
L0710N5M

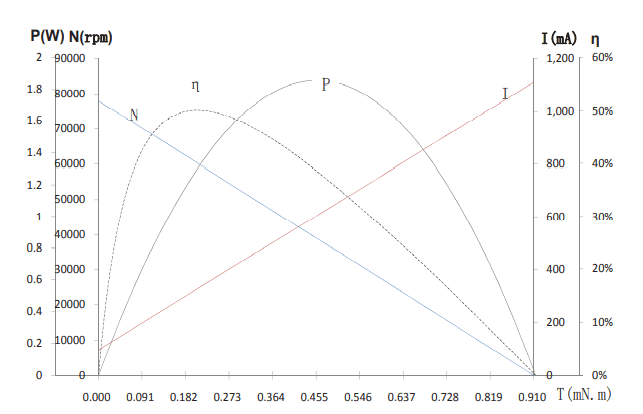

| Specification | L0710N5M61-780-8.0 |
|---|---|
| Voltage | 8.0 V |
| Terminal resistance | 7.2 Ω |
| No-load speed | 78050 rpm |
| No-load current | 95 mA |
| Stall torque | 0.9 mNm |
| Stall current | 1110 mA |
| Load torque | 0.55 mNm |
| Load speed | 30880 rpm |
| Load current | 710 mA |
| Max. output power | 1.9 W |
| Max. efficiency | 50.2 % |
| Back-EMF constant | 0.09 mV/rpm |
| Torque constant | 0.90 mNm/A |
| Speed/torque gradient | 85769 rpm/mNm |
| Rotor inertia | 0.02 g·cm² |
| Weight | 1.6 g |
| Operating temperature range | -20~+100 ℃ |
Applications
mini UAV
remote control hobby products
small household appliances
L0710N5M
| Specification | L0710N5M51-325-3.0 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 6.3 Ω |
| No-load speed | 32500 rpm |
| No-load current | 50 mA |
| Stall torque | 0.3 mNm |
| Stall current | 480 mA |
| Load torque | 0.12 mNm |
| Load speed | 20890 rpm |
| Load current | 200 mA |
| Max. output power | 0.29 W |
| Max. efficiency | 45.4 % |
| Back-EMF constant | 0.08 mV/rpm |
| Torque constant | 0.79 mNm/A |
| Speed/torque gradient | 96726 rpm/mNm |
| Rotor inertia | 0.02 g·cm² |
| Weight | 1.6 g |
| Operating temperature range | -20~+100 ℃ |
Applications
mini UAV
remote control hobby products
small household appliances
L0710N5M
| Specification | L0710N5M08-618-5.0 |
|---|---|
| Voltage | 5.0 V |
| Terminal resistance | 3.4 Ω |
| No-load speed | 61800 rpm |
| No-load current | 80 mA |
| Stall torque | 1.0 mNm |
| Stall current | 1470 mA |
| Load torque | 0.12 mNm |
| Load speed | 54500 rpm |
| Load current | 240 mA |
| Max. output power | 1.65 W |
| Max. efficiency | 58.9 % |
| Back-EMF constant | 0.08 mV/rpm |
| Torque constant | 0.73 mNm/A |
| Speed/torque gradient | 60827 rpm/mNm |
| Rotor inertia | 0.02 g·cm² |
| Weight | 1.6 g |
| Operating temperature range | -20~+100 ℃ |
Applications
mini UAV
remote control hobby products
small household appliances
