| Specification | C1019—10PRC—2C1019-80-3.0-10PRC171-0108 | C1019—10PRC—2C1019-110-3.0-10PRC171-0078 |
|---|---|---|
| Voltage | 3.0 V | 3.0 V |
| Terminal resistance | 10.5 Ω | 5.6 Ω |
| No-load speed | 80 rpm | 115 rpm |
| No-load current | 40 mA | 75 mA |
| Max torque | 25 mNm | 38.0 mNm |
| Load torque | 9.8 mNm | 9.8 mNm |
| Load speed | 48 rpm | 85 rpm |
| Load current | 140 mA | 195 mA |
| Reduction ratio | 1/171 | 1/171 |
| Weight | 3.8 g | 3.8 g |
| Operating temperature range | -10~+70 | -10~+70 |
Applications
medical equipment
security systems and locks
audio and visual products
personal healthcare products
high-end hobby products

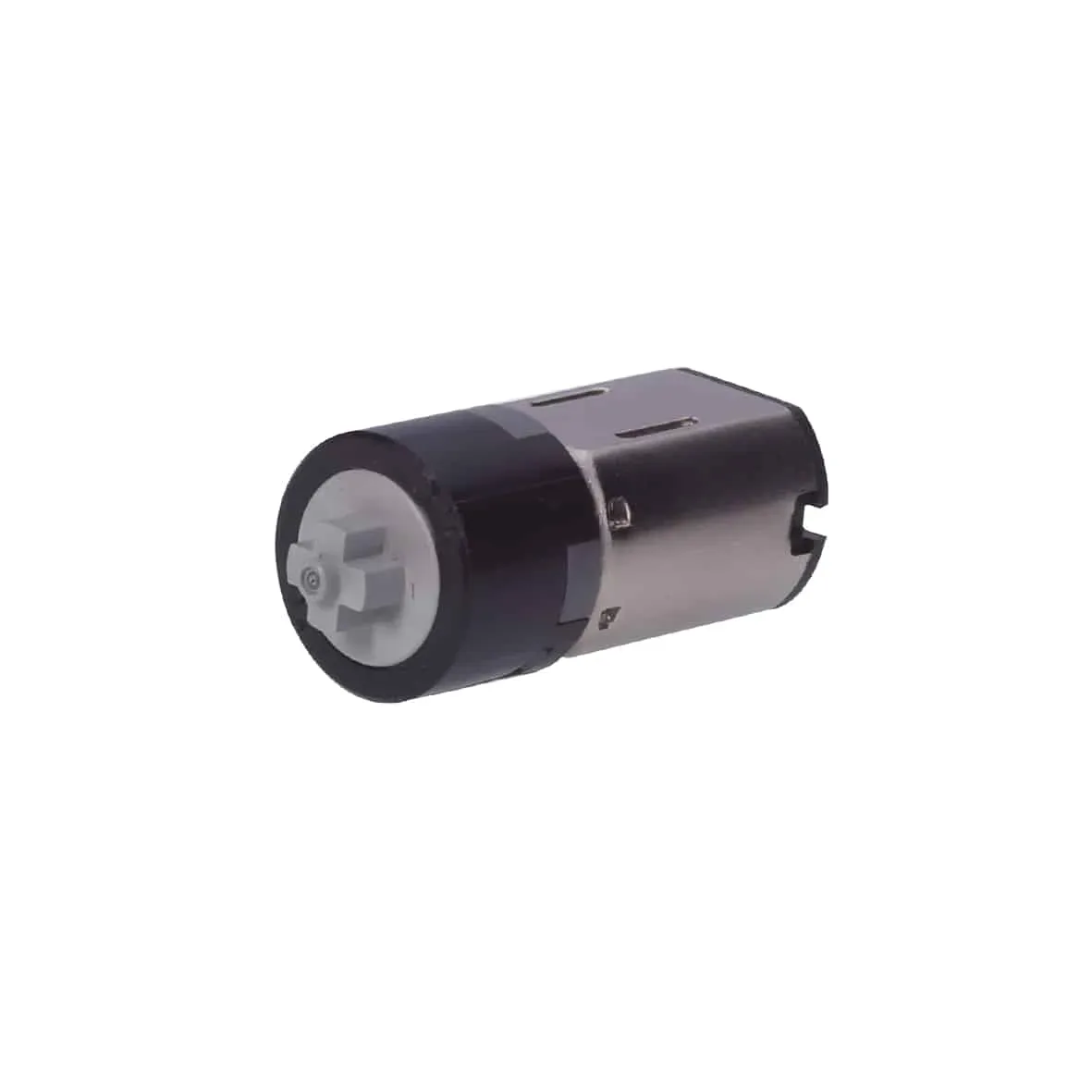

C1019—10PRC—2
| Specification | C1019—10PRC—2C1019-80-3.0-10PRC171-0108 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 10.5 Ω |
| No-load speed | 80 rpm |
| No-load current | 40 mA |
| Max torque | 25 mNm |
| Load torque | 9.8 mNm |
| Load speed | 48 rpm |
| Load current | 140 mA |
| Reduction ratio | 1/171 |
| Weight | 3.8 g |
| Operating temperature range | -10~+70 °C |
Applications
medical equipment
security systems and locks
audio and visual products
personal healthcare products
high-end hobby products
C1019—10PRC—2
| Specification | C1019—10PRC—2C1019-110-3.0-10PRC171-0078 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 5.6 Ω |
| No-load speed | 115 rpm |
| No-load current | 75 mA |
| Max torque | 38.0 mNm |
| Load torque | 9.8 mNm |
| Load speed | 85 rpm |
| Load current | 195 mA |
| Reduction ratio | 1/171 |
| Weight | 3.8 g |
| Operating temperature range | -10~+70 °C |
Applications
medical equipment
security systems and locks
audio and visual products
personal healthcare products
high-end hobby products
