Description

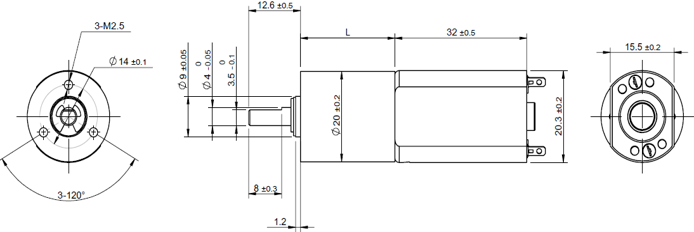

20mm planetary gearbox series
| Parameter | Unit | B20**—20*P—B2040NH2B02-80-12.0 |
|---|---|---|
| Voltage | V | 12.0 |
| Terminal resistance | Ohm | 3.60 |
| No-load speed | rpm | 8000 |
| No-load current | mA | 220 |
| Stall torque | mNm | 41.6 |
| Stall current | mA | 3330 |
| Nominal torque | mNm | 7.60 |
| Nominal speed | rpm | 6540 |
| Nominal current | mA | 790 |
| Max. output power | W | 8.72 |
| Max. efficiency | % | 55 |
| Back-EMF constant | mV/rpm | 1.40 |
| Torque constant | mNm/A | 13.38 |
| Speed/torque gradient | rpm/mNm | 190 |
| Rotor inertia | g·cm² | 2 |
| Weight | g | 80 |
Applications
medical equipment
scientific instruments
industrial equipment
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
