| Characteristics | VL0510N3M05-120-3.0 | VL0510N3M10-200-3.0 | VL0510N3M04-150-3.0 |
|---|---|---|---|
| Voltage | 3.0 V | 3.0 V | 3.0 V |
| Terminal resistance | 17 Ω | 7.4 Ω | 10.7 Ω |
| Speed | 12000 rpm | 20000 rpm | 15000 rpm |
| Current | 130 mA | 250 mA | 180 mA |
| Starting voltage | 0.8 V | 0.8 V | 0.8 V |
| Stall current | 190 mA | 500 mA | 420 mA |
| Weight | 0.8 g | 1.5 g | 1.5 g |
| Operating temperature range | -10～+65 | -10～+65 | -10～+65 |
Applications
wearable products
mobile phones
tablet PC´s
health care products

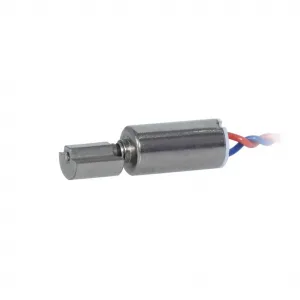

| Specification | VL0510N3M05-120-3.0 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 17 Ω |
| Speed | 12000 rpm |
| Current | 130 mA |
| Starting voltage | 0.8 V |
| Stall current | 190 mA |
| Weight | 0.8 g |
| Operating temperature range | -10～+65 °C |
Applications
wearable products
mobile phones
tablet PC´s
health care products

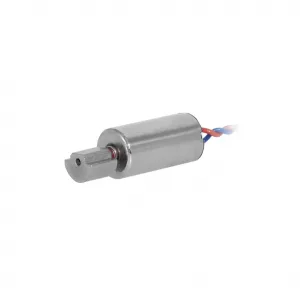

| Specification | VL0510N3M10-200-3.0 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 7.4 Ω |
| Speed | 20000 rpm |
| Current | 250 mA |
| Starting voltage | 0.8 V |
| Stall current | 500 mA |
| Weight | 1.5 g |
| Operating temperature range | -10～+65 °C |
Applications
wearable products
mobile phones
tablet PC´s
health care products

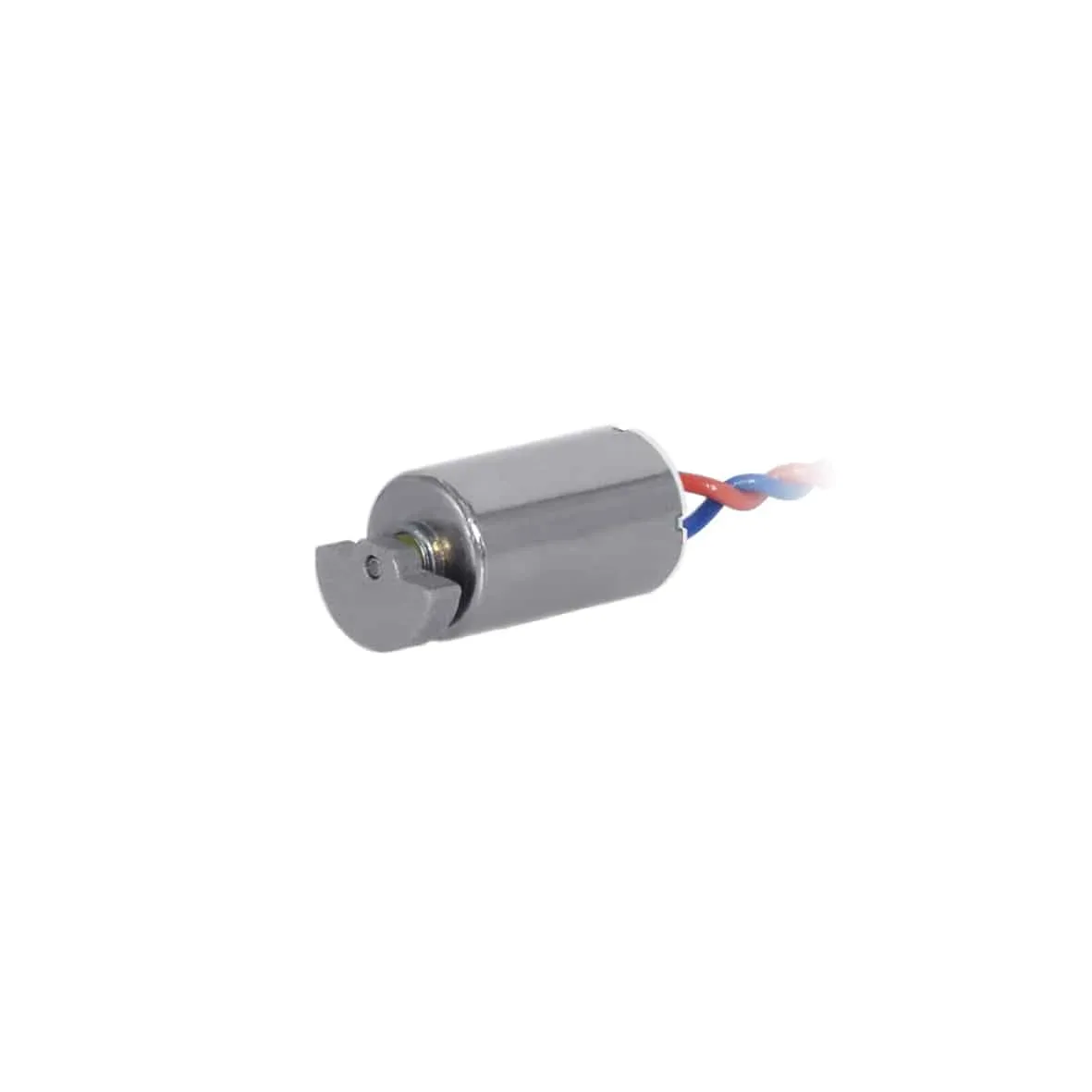

| Specification | VL0510N3M04-150-3.0 |
|---|---|
| Voltage | 3.0 V |
| Terminal resistance | 10.7 Ω |
| Speed | 15000 rpm |
| Current | 180 mA |
| Starting voltage | 0.8 V |
| Stall current | 420 mA |
| Weight | 1.5 g |
| Operating temperature range | -10～+65 °C |
Applications
wearable products
mobile phones
tablet PC´s
health care products
