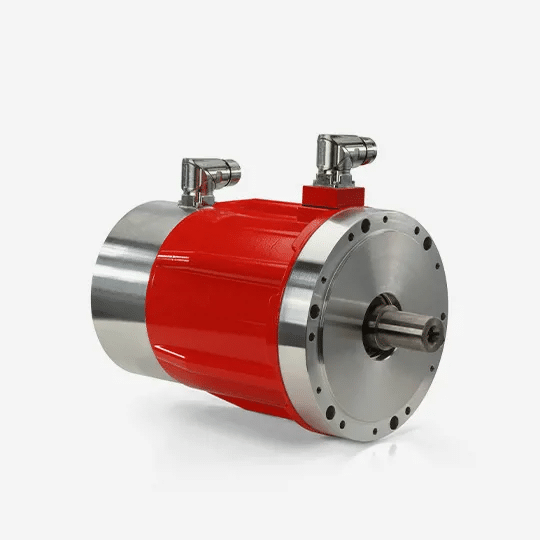

SKA DDR
Stall Torque: 210 – 760 Nm
Peak Torque: 458 – 2400 Nm
Maxium Speed @ 230/400 Vac: 50-180/90-300 rpm
| Specification | SKA DDR 430.90.450.53 | SKA DDR 430.90.450.54 | SKA DDR 430.90.450.55 | SKA DDR 430.90.450.56 |
|---|---|---|---|---|
| Stall torque | 450 Nm | 450 Nm | 450 Nm | 450 Nm |
| Peak torque | 1254 Nm | 1254 Nm | 1254 Nm | 1254 Nm |
| Stall current | 14.3 Arms | 8.63 Arms | 4.78 Arms | 19.43 Arms |
| Peak current | 55.2 Arms | 33.1 Arms | 18.3 Arms | 54.1 Arms |
| Maximum speed @230 Vac 3phase | 90 rpm | 50 rpm | – | 100 rpm |
| Maximum speed @400 Vac 3phase | 150 rpm | 90 rpm | 50 rpm | 150 rpm |
| Torque constant ± 5% | 22.7 Nm/Arms | 37.9 Nm/Arms | 68.4 Nm/Arms | 23.16 Nm/Arms |
| Voltage constant ± 5% | 1900 Vrms/krpm | 3150 Vrms/krpm | 5700 Vrms/krpm | 1400 Vrms/krpm |
| Phase/phase resistance ± 5% | 1.19 Ω | 4.14 Ω | 16.4 Ω | 0.98 Ω |
| Phase/phase inductance | 26.2 mH | 73 mH | 200 mH | 9.8 mH |
| Electrical time constant | 22 msec | 22.1 msec | 22 msec | 22 msec |
| Thermal resistance | 0.136 °C/W | 0.136 °C/W | 0.136 °C/W | 0.136 °C/W |
| Family Specification | Produkt |
|---|---|
| Time Rating | Continous |
| Insulation Class | F |
| Poles | 56 |
| Insulation System UL/CSA | cURus, DV155JFile nr.:E216686 |
| Ambient temperature | 0 to 40 °C °C |
| Ambient humidity | 20 to 80 %RH (non condensing) |
| Thermal protection | PT 1000 |
| CE | certified |
| Family Overview | Produkt |
|---|---|
| Stall Torque | 450 Nm |
| Peak Torque | 1254 Nm |
| Maxium Speed @ 230/400 Vac | 50 – 100 rpm |
| Specification | SKA DDR 430.90.450.53 |
|---|---|
| Stall torque | 450 Nm |
| Peak torque | 1254 Nm |
| Stall current | 14.3 Arms |
| Peak current | 55.2 Arms |
| Maximum speed @230 Vac 3phase | 90 rpm |
| Maximum speed @400 Vac 3phase | 150 rpm |
| Torque constant ± 5% | 22.7 Nm/Arms |
| Voltage constant ± 5% | 1900 Vrms/krpm |
| Phase/phase resistance ± 5% | 1.19 Ω |
| Phase/phase inductance | 26.2 mH |
| Electrical time constant | 22 msec |
| Thermal resistance | 0.136 °C/W |
| Specification | SKA DDR 430.90.450.54 |
|---|---|
| Stall torque | 450 Nm |
| Peak torque | 1254 Nm |
| Stall current | 8.63 Arms |
| Peak current | 33.1 Arms |
| Maximum speed @230 Vac 3phase | 50 rpm |
| Maximum speed @400 Vac 3phase | 90 rpm |
| Torque constant ± 5% | 37.9 Nm/Arms |
| Voltage constant ± 5% | 3150 Vrms/krpm |
| Phase/phase resistance ± 5% | 4.14 Ω |
| Phase/phase inductance | 73 mH |
| Electrical time constant | 22.1 msec |
| Thermal resistance | 0.136 °C/W |
| Specification | SKA DDR 430.90.450.55 |
|---|---|
| Stall torque | 450 Nm |
| Peak torque | 1254 Nm |
| Stall current | 4.78 Arms |
| Peak current | 18.3 Arms |
| Maximum speed @230 Vac 3phase | – |
| Maximum speed @400 Vac 3phase | 50 rpm |
| Torque constant ± 5% | 68.4 Nm/Arms |
| Voltage constant ± 5% | 5700 Vrms/krpm |
| Phase/phase resistance ± 5% | 16.4 Ω |
| Phase/phase inductance | 200 mH |
| Electrical time constant | 22 msec |
| Thermal resistance | 0.136 °C/W |
| Specification | SKA DDR 430.90.450.56 |
|---|---|
| Stall torque | 450 Nm |
| Peak torque | 1254 Nm |
| Stall current | 19.43 Arms |
| Peak current | 54.1 Arms |
| Maximum speed @230 Vac 3phase | 100 rpm |
| Maximum speed @400 Vac 3phase | 150 rpm |
| Torque constant ± 5% | 23.16 Nm/Arms |
| Voltage constant ± 5% | 1400 Vrms/krpm |
| Phase/phase resistance ± 5% | 0.98 Ω |
| Phase/phase inductance | 9.8 mH |
| Electrical time constant | 22 msec |
| Thermal resistance | 0.136 °C/W |
