SKU: Stand Alone Stepper Electronics 1-DS-OLS7-FRS4 Category: Stepper Controller

Description

Description

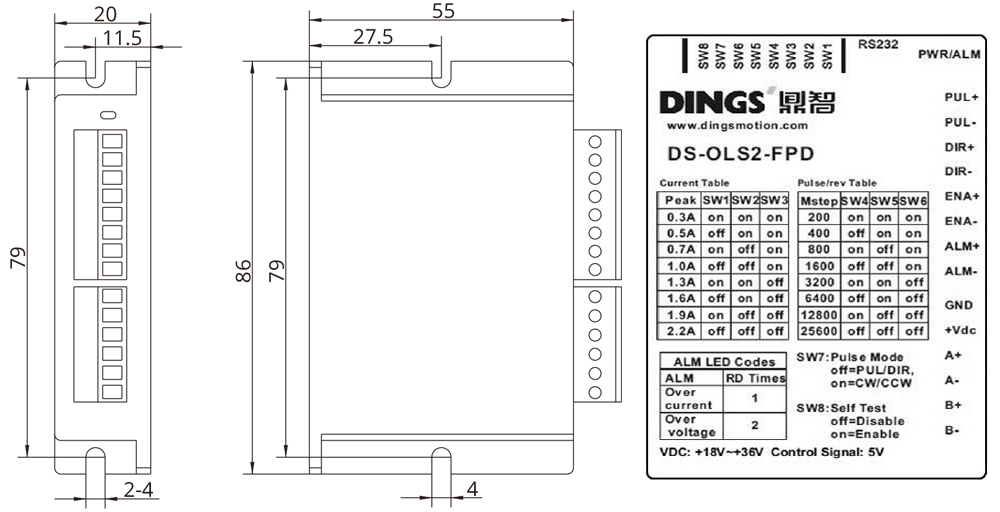

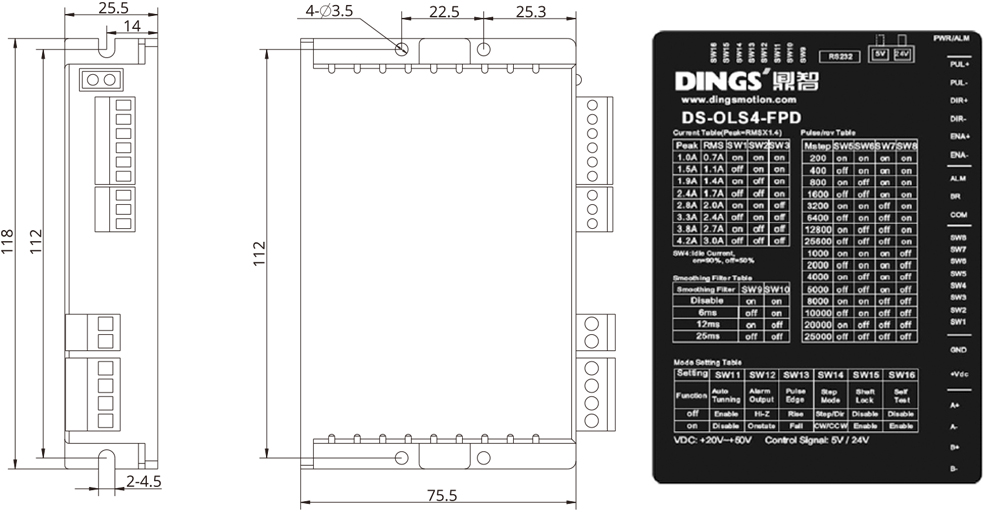

Installation

Feature

32-bit DSP Technology

Features

Anti-Resonance for optimal torque, extra smooth motion, low motor heating and noise 3-digit dialing code adjustable, 8 output current settings Power-on automatic setting, automatic current halving at rest Precise current control significantly reduces motor heating Support single and double pulses, dial selection Drive 4,6,8-wire two-phase stepper motor Optically isolated inputs 70KHz max pulse input frequency 8 output current settings of 0.3 – 2.2A via DIP Switches Over-voltage and over-current protections External alarm output, maximum output current 100mA, withstand 24Vdc

Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

Stand Alone Stepper Electronics 1
