25mm Frame

Name: 25mm Frame - KOCO MOTION
SKU: 25mm Frame

incl. 19% VAT

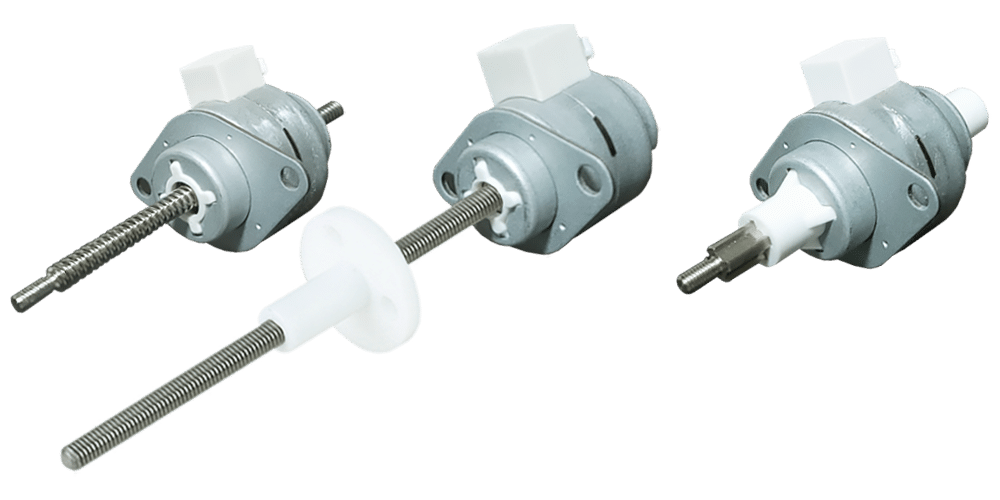

The size 25mm PM Linear Actuator has External, Non-Captive and Kaptive version and various screw end machining and length customization is optional.

SKU: 25mm Frame Category: Permanent Magnet Steppers

Description

The size 25mm PM Linear Actuator has External, Non-Captive and Kaptive version and various screw end machining and length customization is optional.

There are no reviews yet.

Be the first to review “25mm Frame”

Specification	25mm Frame
Polarity	Bi-Polar

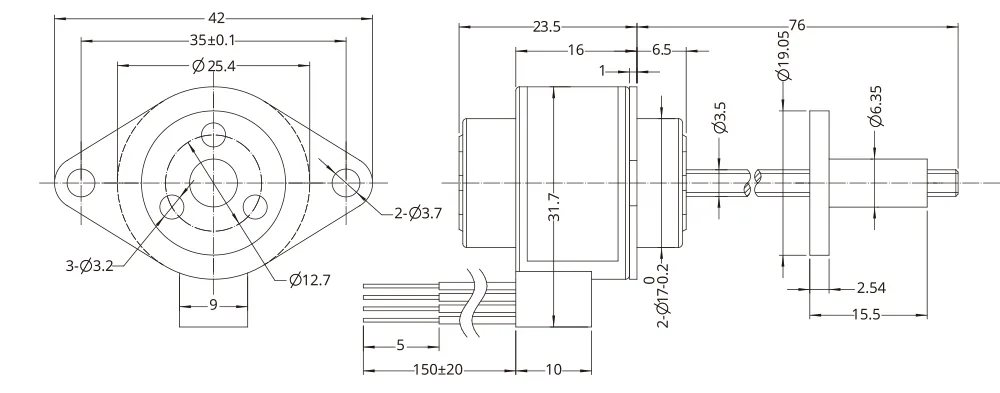

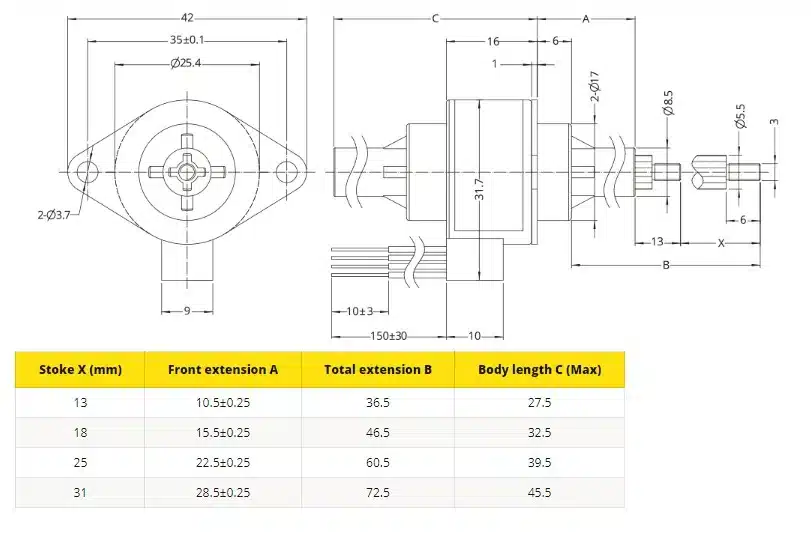

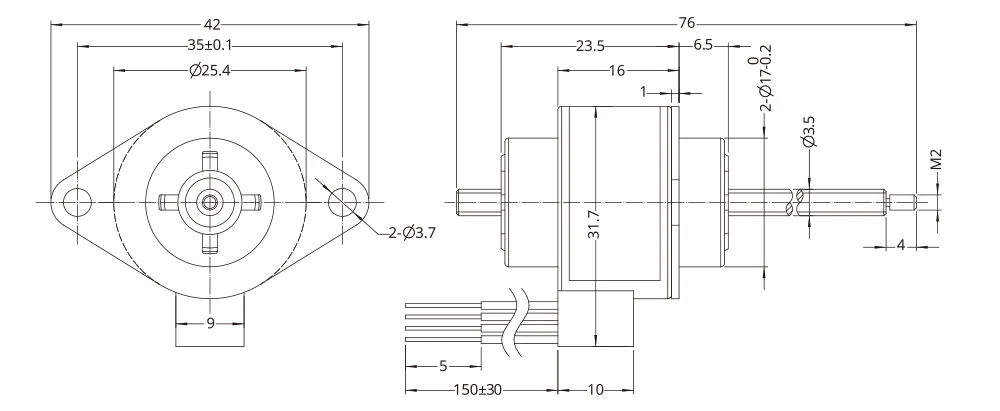

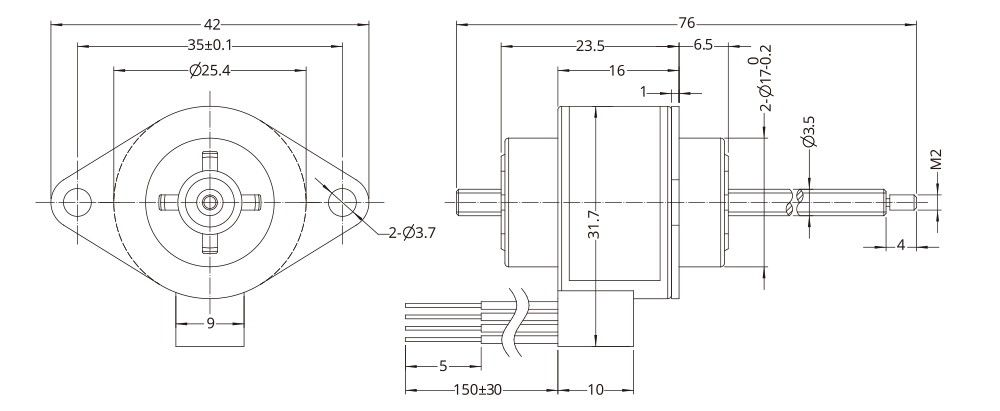

Linear Actuator Type	External, Non-captive, Kaptive
Step Angle	7.5°/15°
Winding	5/12 mA
Phase Current	370/160 mA
Phase Resistance	13.5/70 Ω
Phase Inductance	12.5/65/9.5/47 mH
Power Consumption	3.85 W
Rotor Inertia	1.08 g·cm²
Insulation Class	B
Insulation Resistance	100 MΩ
Mass	50 g
Bearing	Ball Bearing
