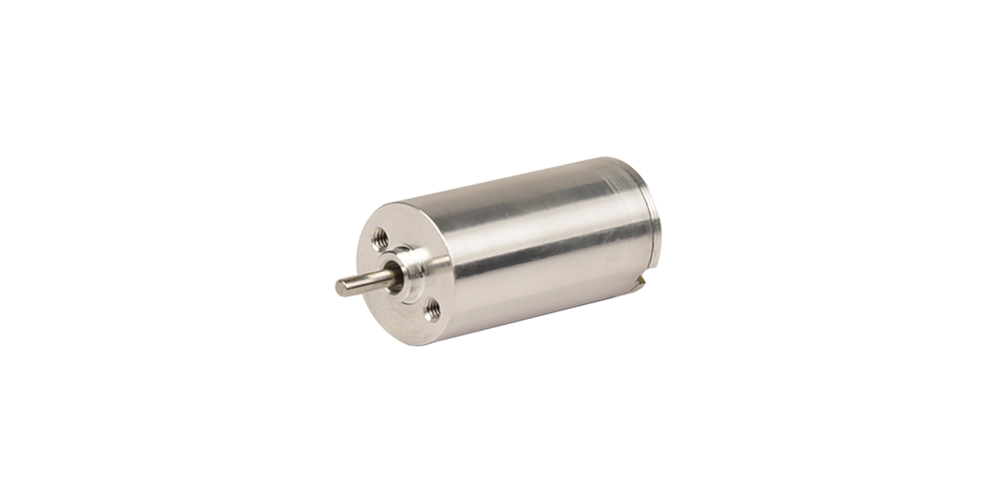

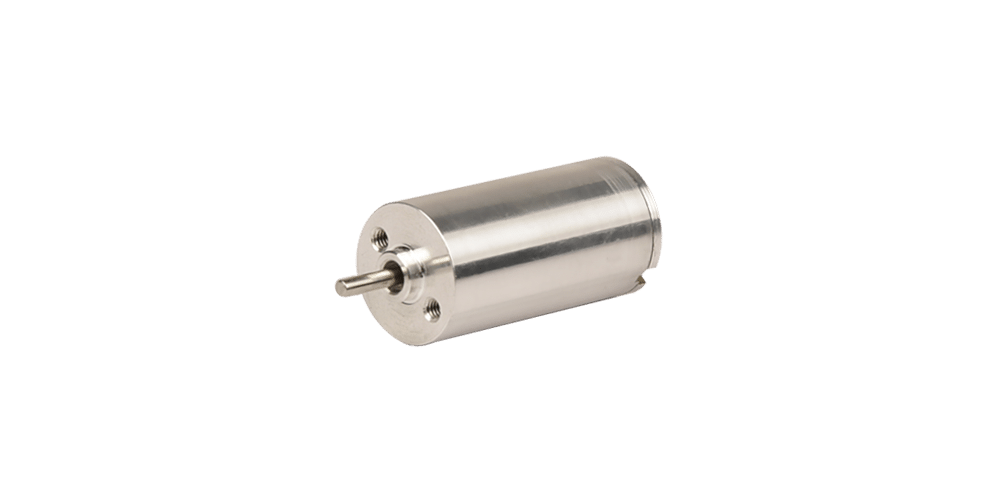

16ZWC32L-1 is very compact size but it has optimized magnetic circuit.
Brushless DC Motor with core winding has high torque density and multi-pole rotor can provide very strong and dynamic performance.
16ZWC32L-1 can reach Max. 16,300RPM
16ZWC32L-1 is very compact size but it has optimized magnetic circuit.
Brushless DC Motor with core winding has high torque density and multi-pole rotor can provide very strong and dynamic performance.
16ZWC32L-1 can reach Max. 16,300RPM
| Specification | 16ZWC32L-1 |
|---|---|

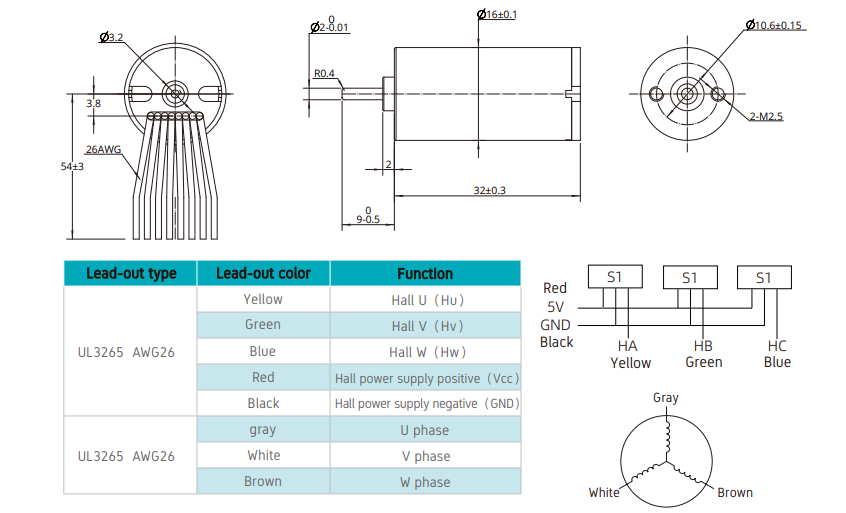

| Motor Length | 32 mm |
| Mounting Hole | 10.6(±0.15） mm |
| Motor Shaft | 9（±0.5） mm |
| Phase Resistance | 6.5 Ω |
| Insulation Class | B |
| Duty Type | S2 |
| Feedback Method | Hall Sensors |
| Commutation Angle | 120° |
| Insulation Strength (Withstand Voltage) | 500VAC/1KHz/1mA/1s |
| Insulation Resistance | 100 MΩ/500VDC |
| Weight | 25.5 g |
| Rated Voltage | 24 V |
| Rated Power | 9.2 W |
| Rated Torque | 0.007 Nm |
| Rated Speed | 12600 RPM |
| Rated Current | 0.65 A |
| No Load Speed | 16300 RPM |
| No Load Current | 0.22 A |
| Motor Efficiency | 71.6 % |
| Noise (Ambient noise 20db, test distance 1M) | ＜50 dB |
| Enclosure – Ambient Thermal Resistance | 0.9 K/W |
| Motor Thermal Time Constant | 1.26 min |
| Ambient Temperature | 25 °C |
| Maximum Winding Temperature | 68.5 °C |
| Torque Constant | 0.011 N·m/A |
| Back-EMF Constant /Effective Value | 1.05 V/Krpm |
| Peak Torque | 0.021 Nm |
| Peak Current | 1.95 A |
| Inertia Moment | 0.45 kg·cm² |
| End Cover | Aluminium Die Casting |
| Bearing | Deep Groove Ball Bearing |
| Magnet | Sinter NdFedB |
| Shaft | Carbon Steel |
