LH57 NEMA 23 Pulse/direction IP65 – High Torque

Name: LH57 NEMA 23 Pulse/direction IP65 – High Torque - KOCO MOTION
SKU: LH57 NEMA 23 Pulse/direction IP65 – High Torque

Loggen Sie sich ein, um Preise für dieses Produkt zu sehen

inkl. 19 % MwSt.

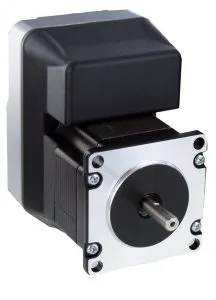

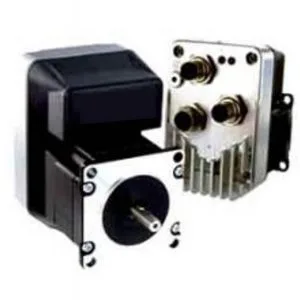

LH57 NEMA 23 with High Torque

Pulse/Direction
Motion Control (RS422/485)
CANopen
Ethernet (MCode OS, Modbus TCP, Ethernet IP, Profinet I/O)

Artikelnummer: LH57 NEMA 23 Pulse/direction IP65 – High Torque Kategorie: Liberty/MDrives

Beschreibung

Beschreibung

Compact integrated motor with RS-422/485 communications interface. Feedback options include open loop, closed loop or absolute encoder with hMTechnology.
Motor size: NEMA 23 (57 mm)
Holding Torque range: 152 … 416 oz-in (107 … 294 N-cm)
Input voltage: +12 to +60 VDC

Specification	LH57 NEMA 23 Pulse/direction IP65 – High Torque
Control type	Pulse/direction input
Communications interface	RS-422/485
Communications features	MCode OS
NEMA size	23 (57×57 mm)
Torque range	1,07 … 2,94 Nm
Temperature heatsink (short-time)	max. 85 °C
IP rating	IP65
Input voltage	+12 to +60 +VDC
Power supply current requirement	3.5 A

I/O Specifications	LH57 NEMA 23 Pulse/direction IP65 – High Torque
I/O functions	Logic and I/O
Signal input voltage range	5 … 24 +VDC
Signal input current	8.7 mA @ +5 VDC
Signal input current	14.6 mA @ +24 VDC
Signal input frequency pulse (step)	2.56 MHz
Signal input frequency quadrature	1.25 MHz
Signal input frequency enable	5 MHz (max.)
Signal input isolation	Galvanic
Signal input protection class	III
Analog input voltage mode	0 … 5 0 … 5 VDC
Analog input voltage mode	0 … 10 0 … 10 VDC
Analog input current loop mode	0 … 20 mA
Analog input resolution	12 Bits
Analog input isolation	None
Signal output current	1 … 5.5 mA
Signal output voltage open-collector	60 +VDC
Signal output voltage open-emitter	7 +VDC
Signal output current open-collector	5.5 mA
Signal output current open-emitter	5.5 mA
Signal output isolation	Galvanic
I/O functions	Logic and I/O
Signal input voltage range	5 … 24 +VDC
Signal input current	8.7 mA @ +5 VDC
Signal input current	14.6 mA @ +24 VDC
Signal input frequency pulse (step)	2.56 MHz
Signal input frequency quadrature	1.25 MHz
Signal input frequency enable	5 MHz (max.)
Signal input isolation	Galvanic
Signal input protection class	III
Analog input voltage mode	0 … 5 0 … 5 VDC
Analog input voltage mode	0 … 10 0 … 10 VDC
Analog input current loop mode	0 … 20 mA
Analog input resolution	12 Bits
Analog input isolation	None
Signal output current	1 … 5.5 mA
Signal output voltage open-collector	60 +VDC
Signal output voltage open-emitter	7 +VDC
Signal output current open-collector	5.5 mA
Signal output current open-emitter	5.5 mA
Signal output isolation	Galvanic

Parameter settings	LH57 NEMA 23 Pulse/direction IP65 – High Torque
Microstep resolution	20 # of settings
Microstep resolution	200 … 51200 Range steps/rev
Counter type	Position 32-bit
Counter edge rate	5 MHz (max.)
Velocity range	± 2560000 \| ± 3000 steps/sec \| RPM
Velocity resolution	0.5961 steps/sec
Accel/Decel range	1.5 X 10^9 steps/sec2
Accel/Decel resolution	90.9 steps/sec2

Closed Loop / Absolute Encoder

LH57 NEMA 23 Pulse/direction IP65 – High Torque

Value

–

Encoder type

Internal

magnetic

Encoder resolution

Lines / Edges

1000 / 4000

Counter resolution

bit

hMTechnology OFF, encoder ON

Position maintenance

find index

stall detect

hMTechnology ON, encoder OFF

Anti-stall

variable current control

torque mode

Software Specifications

LH57 NEMA 23 Pulse/direction IP65 – High Torque

Value

–

Microstep resolution

[steps/rev]

200 … 51200

Run current

[%]

1 … 100

Holding current

[%]

0 … 100

Hold current delay

[mSec]

0 … 65535

Clock modes

Step/dir

Quadrature

CW/CCW

Motion input filter

[kHz … MHz]

38.8 … 10

Enable input

Active state/filter

Advanced operating modes

Pulse/direction

Speed Control

Commanded Velocity,Torque Control

Advanced parameters

Common

RS-422/485

Advanced parameters

Mode specific

I/O

Motion,Analog input

velocity

hMT modes

hMT OFF

fixed current

Variable current

Torque

Operation

Make-up position,Torque %

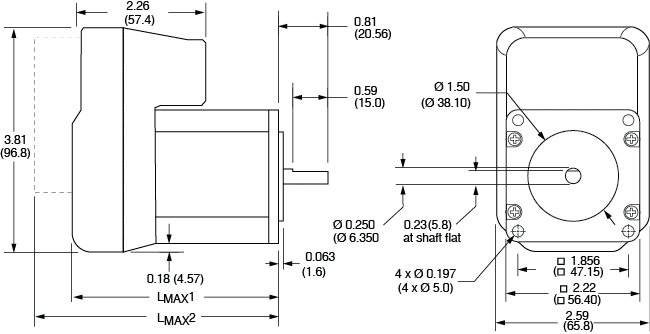

Name	Unit	Single Length	Double Length	Triple Length
Holding torque	Ncm	107	186	294
Rotor inertia	kgcm2	0.14	0.22	0.37
Detent Torque	Ncm	6.0	10	15
Radial load limit	kg		6.8
Axial Load Limit	kg		9
Weight	g	748	885	1247

Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
