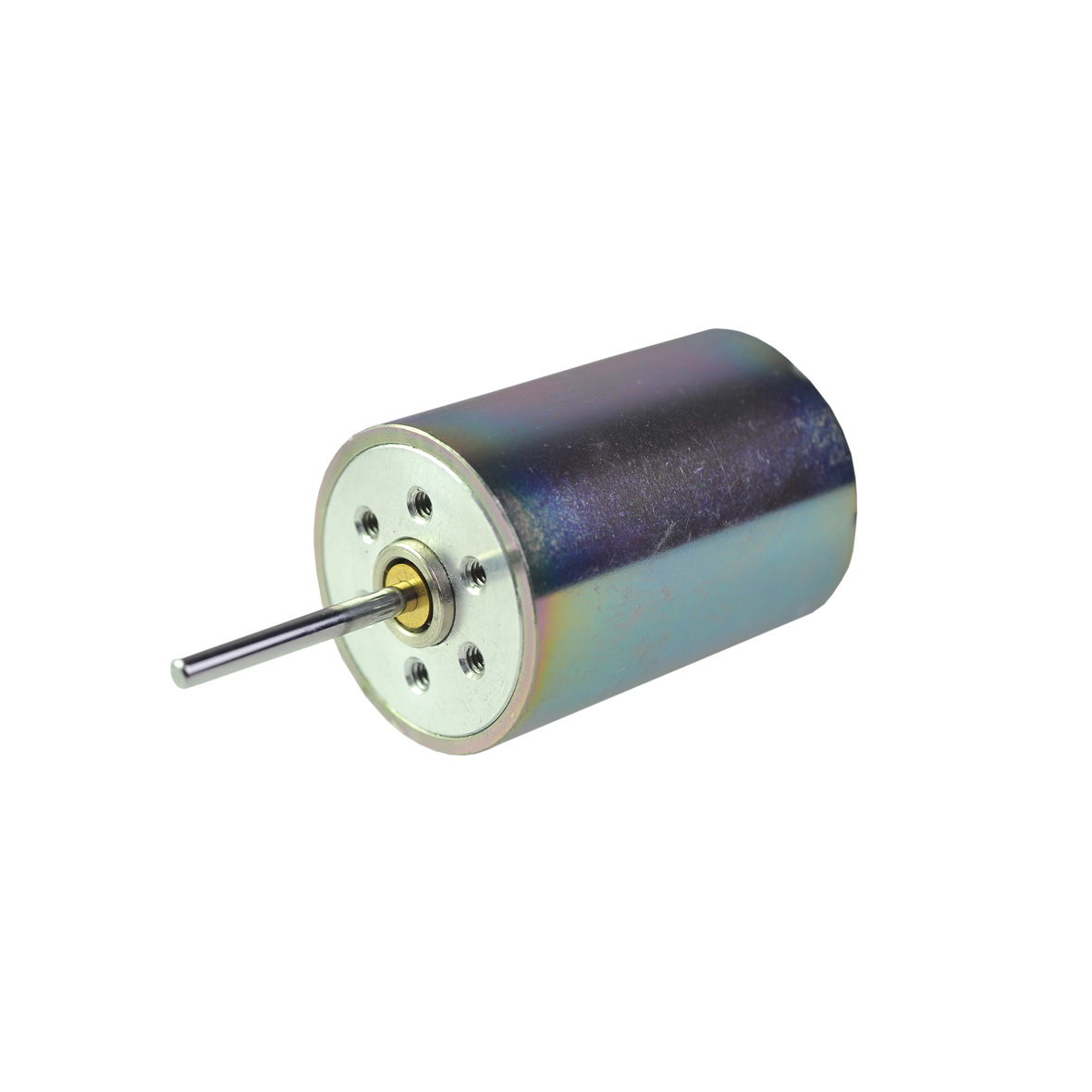

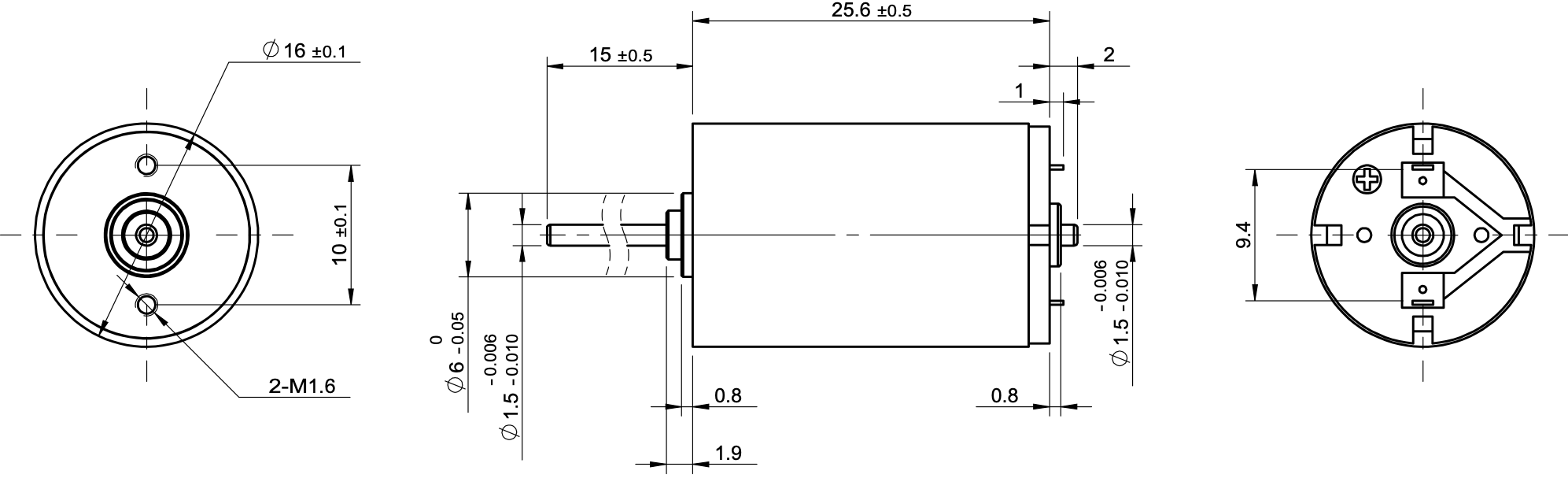

16mm 12V Graphite brush coreless motor
| Parameter | 1625N5C01-150-12.0 |
|---|---|
| Voltage | 12.0 V |
| Terminal resistance | 13.0 Ω |
| No-load speed | 15000 rpm |
| No-load current | 25 mA |
| Stall torque | 6.7 mNm |
| Stall current | 920 mA |
| Nominal torque | 3.3 mNm |
| Nominal speed | 7560 rpm |
| Nominal current | 470 mA |
| Max. output power | 2.6 W |
| Max. efficiency | 70 % |
| Back-EMF constant | 0.8 mV/rpm |
| Torque constant | 7.4 mNm/A |
| Speed/torque gradient | 2250 rpm/mNm |
| Rotor inertia | 0.95 g·cm² |
| Weight | 22.5 g |
| Thermal resistance housing-ambient | 25.04 K/W |
| Thermal resistance winding-housing | 9.71 K/W |
| Thermal time constant motor | 190 s |
| Thermal time constant winding | 147 s |
| Operating temperature range | -20~+85 |
| Thermal class of winding | 130 °C |
| Axial play | 0.02~0.15 |
| Radial play | 0.012 mm |
| Axial load dynamic | 0.8 N |
| Axial load static | 30 N |
| Radial load at 3 mm from mounting face | 1.5 N |
| No. of pole pairs | 1 |
| Bearings | 2 sleeve bearings |
| Commutator | metal 5 segments |
| Protection class | 30 IP |
Technische Angaben dienen als Orientierungswerte, da die einzelnen Antriebe und Motoren anwendungsbezogen konfiguriert werden. Technische und optische Änderungen vorbehalten.
