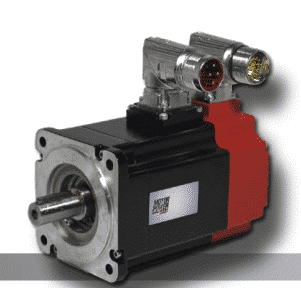

TC-L 60
incl. VAT
Flange dimensions: 60 mm
Rated Output Power: 200 – 370 W
Rated Torque: 0,64 – 1,18 Nm
Rated Speed: 3000 rpm
| Specification | TC-L 60 0,65 00 | TC-L 60 0,65 01 | TC-L 60 0,65 32 | TC-L 60 1,3 01 | TC-L 60 1,3 32 |
|---|---|---|---|---|---|
| Stall Torque for S1 | – | – | – | – | 0.9 Nm |
| Stall Torque for S2 for intermittent duty S2 T= 10’/20′ | – | – | – | – | 1.3 Nm |
| Peak Torque | 1.95 Nm | 1.95 Nm | 1.95 Nm | 3.9 Nm | 3.9 Nm |
| Rated Torque S1 | – | – | – | – | 0.87 Nm |
| Rated Torque for S2 for intermittent duty S2 T= 10’/20′ | – | – | – | – | 1.18 Nm |
| Rated Voltage | 48 Vdc | 48 Vdc | 24 Vdc | 48 Vdc | 24 Vdc |
| Rated Output Power for S1 | – | – | – | – | 280 W |
| Rated Output Power for S2 for intermittent duty S2 T= 10’/20′ | – | – | – | – | 370 W |
| Stall Current for S1 | – | – | – | – | 18 Arms |
| Stall Current for S2 for intermittent duty S2 T= 10’/20′ | – | – | – | – | 26 Arms |
| Peak Current | 29 Arms | 22.8 Arms | 43 Arms | 45.6 Arms | 85 Arms |
| Rated Current for S1 | – | – | – | – | 17.85 |
| Rated Current for S2 for intermittent duty S2 T= 10’/20′ | – | – | – | – | 23.6 |
| Rated Speed | 3000 rpm | 3000 rpm | 3000 rpm | 3000 rpm | 3000 rpm |
| Maximum Speed @24Vdc | – | – | 5000 rpm | – | 5000 rpm |
| Torque Constant (± 5%) | 0.074 Nm/Arms | 0.094 Nm/Arms | 0.05 Nm/Arms | 0.094 Nm/Arms | 0.05 Nm/Arms |
| Voltage Constant (± 5%) | 4.5 Vrms/Krpm | 5.7 Vrms/Krpm | 3 Vrms/Krpm | 5.7 Vrms/Krpm | 3 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 0.21 Ω | 0.38 Ω | 0.1 Ω | 0.16 Ω | 0.09 Ω |
| Phase/phase inductance (± 10%) | 0.5 mH | 0.9 mH | 0.28 mH | 0.48 mH | 0.11 mH |
| Electrical time constant | 2.38 ms | 2.4 ms | 2.75 ms | 3 ms | 1.22 ms |
| Thermal Resistance | 1.89 °C/W | 1.89 °C/W | 1.89 °C/W | 1.41 °C/W | 1.41 °C/W |
| Mechanical time constant | 0.75 ms | 0.8 ms | 0.78 ms | 0.65 ms | 1.2 ms |
| Rotor Inertia without brake and without feedback | 0.13 kg·cm² | 0.13 kg·cm² | 0.13 kg·cm² | 0.24 kg·cm² | 0.24 kg·cm² |
| Motor weight | 1.1 Kg | 1.1 Kg | 1.1 Kg | 1.5 Kg | 1.5 Kg |
| Motor weight + Brake | 1.5 Kg | 1.5 Kg | 1.5 Kg | 1.9 Kg | 1.9 Kg |
| Axial Load applied on the shaft’s center | 70 N | 70 N | 70 N | 70 N | 70 N |
| Radial Load applied on the shaft’s center | 220 N | 220 N | 220 N | 220 N | 220 N |
| Specification | TC-L 60 0,65 00 |
|---|---|
| Stall Torque | 0.69 Nm |
| Peak Torque | 1.95 Nm |
| Rated Torque | 0.64 Nm |
| Rated Voltage | 48 Vdc |
| Rated Output Power | 200 W |
| Stall Current | 9.32 Arms |
| Peak Current | 29 Arms |
| Rated Current | 8.7 Arms |
| Rated Speed | 3000 rpm |
| Maximum Speed @48Vdc | 5000 rpm |
| Torque Constant (± 5%) | 0.074 Nm/Arms |
| Voltage Constant (± 5%) | 4.5 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 0.21 Ω |
| Phase/phase inductance (± 10%) | 0.5 mH |
| Electrical time constant | 2.38 ms |
| Thermal Resistance | 1.89 °C/W |
| Mechanical time constant | 0.75 ms |
| Rotor Inertia without brake and without feedback | 0.13 kg·cm² |
| Motor weight | 1.1 Kg |
| Motor weight + Brake | 1.5 Kg |
| Axial Load applied on the shaft’s center | 70 N |
| Radial Load applied on the shaft’s center | 220 N |
| Specification | TC-L 60 0,65 01 |
|---|---|
| Stall Torque | 0.69 Nm |
| Peak Torque | 1.95 Nm |
| Rated Torque | 0.64 Nm |
| Rated Voltage | 48 Vdc |
| Rated Output Power | 200 W |
| Stall Current | 7.34 Arms |
| Peak Current | 22.8 Arms |
| Rated Current | 6.8 Arms |
| Rated Speed | 3000 rpm |
| Maximum Speed @48Vdc | 5000 rpm |
| Torque Constant (± 5%) | 0.094 Nm/Arms |
| Voltage Constant (± 5%) | 5.7 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 0.38 Ω |
| Phase/phase inductance (± 10%) | 0.9 mH |
| Electrical time constant | 2.4 ms |
| Thermal Resistance | 1.89 °C/W |
| Mechanical time constant | 0.8 ms |
| Rotor Inertia without brake and without feedback | 0.13 kg·cm² |
| Motor weight | 1.1 Kg |
| Motor weight + Brake | 1.5 Kg |
| Axial Load applied on the shaft’s center | 70 N |
| Radial Load applied on the shaft’s center | 220 N |
| Specification | TC-L 60 0,65 32 |
|---|---|
| Stall Torque | 0.69 Nm |
| Peak Torque | 1.95 Nm |
| Rated Torque | 0.64 Nm |
| Rated Voltage | 24 Vdc |
| Rated Output Power | 200 W |
| Stall Current | 13.8 Arms |
| Peak Current | 43 Arms |
| Rated Current | 12.8 Arms |
| Rated Speed | 3000 rpm |
| Maximum Speed @24Vdc | 5000 rpm |
| Torque Constant (± 5%) | 0.05 Nm/Arms |
| Voltage Constant (± 5%) | 3 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 0.1 Ω |
| Phase/phase inductance (± 10%) | 0.28 mH |
| Electrical time constant | 2.75 ms |
| Thermal Resistance | 1.89 °C/W |
| Mechanical time constant | 0.78 ms |
| Rotor Inertia without brake and without feedback | 0.13 kg·cm² |
| Motor weight | 1.1 Kg |
| Motor weight + Brake | 1.5 Kg |
| Axial Load applied on the shaft’s center | 70 N |
| Radial Load applied on the shaft’s center | 220 N |
| Specification | TC-L 60 1,3 01 |
|---|---|
| Stall Torque | 1.31 Nm |
| Peak Torque | 3.9 Nm |
| Rated Torque | 1.18 Nm |
| Rated Voltage | 48 Vdc |
| Rated Output Power | 370 W |
| Stall Current | 13.8 Arms |
| Peak Current | 45.6 Arms |
| Rated Current | 12.6 Arms |
| Rated Speed | 3000 rpm |
| Maximum Speed @48Vdc | 5000 rpm |
| Torque Constant (± 5%) | 0.094 Nm/Arms |
| Voltage Constant (± 5%) | 5.7 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 0.16 Ω |
| Phase/phase inductance (± 10%) | 0.48 mH |
| Electrical time constant | 3 ms |
| Thermal Resistance | 1.41 °C/W |
| Mechanical time constant | 0.65 ms |
| Rotor Inertia without brake and without feedback | 0.24 kg·cm² |
| Motor weight | 1.5 Kg |
| Motor weight + Brake | 1.9 Kg |
| Axial Load applied on the shaft’s center | 70 N |
| Radial Load applied on the shaft’s center | 220 N |
| Specification | TC-L 60 1,3 32 |
|---|---|
| Stall Torque for S1 | 0.9 Nm |
| Stall Torque for S2 for intermittent duty S2 T= 10’/20′ | 1.3 Nm |
| Peak Torque | 3.9 Nm |
| Rated Torque S1 | 0.87 Nm |
| Rated Torque for S2 for intermittent duty S2 T= 10’/20′ | 1.18 Nm |
| Rated Voltage | 24 Vdc |
| Rated Output Power for S1 | 280 W |
| Rated Output Power for S2 for intermittent duty S2 T= 10’/20′ | 370 W |
| Stall Current for S1 | 18 Arms |
| Stall Current for S2 for intermittent duty S2 T= 10’/20′ | 26 Arms |
| Peak Current | 85 Arms |
| Rated Current for S1 | 17.85 |
| Rated Current for S2 for intermittent duty S2 T= 10’/20′ | 23.6 |
| Rated Speed | 3000 rpm |
| Maximum Speed @24Vdc | 5000 rpm |
| Torque Constant (± 5%) | 0.05 Nm/Arms |
| Voltage Constant (± 5%) | 3 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 0.09 Ω |
| Phase/phase inductance (± 10%) | 0.11 mH |
| Electrical time constant | 1.22 ms |
| Thermal Resistance | 1.41 °C/W |
| Mechanical time constant | 1.2 ms |
| Rotor Inertia without brake and without feedback | 0.24 kg·cm² |
| Motor weight | 1.5 Kg |
| Motor weight + Brake | 1.9 Kg |
| Axial Load applied on the shaft’s center | 70 N |
| Radial Load applied on the shaft’s center | 220 N |
