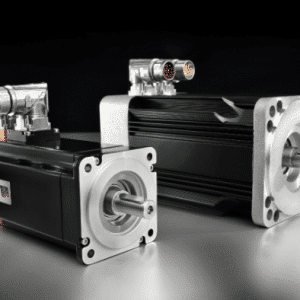

TC 80
incl. VAT
Flange dimensions: 80 mm
Rated Output Power: 480 – 1068 W
Rated Torque: 1,53 – 3,4 Nm
Rated Speed: 3000 rpm
| Specification | TC 80 1,5 21 | TC 80 1,5 15 | TC 80 2,8 21 | TC 80 2,8 15 | TC 80 4 15 | TC 80 4 17 |
|---|---|---|---|---|---|---|
| Continous Stall Torque | 1.74 Nm | 1.74 Nm | 2.96 Nm | 2.96 Nm | 4 Nm | 4 Nm |
| Peak Torque | 4.5 Nm | 4.5 Nm | 8.4 Nm | 8.4 Nm | 12 Nm | 12 Nm |
| Nominal Torque | 1.53 Nm | 1.53 Nm | 2.55 Nm | 2.55 Nm | 3.4 Nm | 3.4 Nm |
| Rated Voltage | 230 V | 400 V | 230 V | 400 V | 230 V | 400 V |
| Nominal power | 480 W | 480 W | 800 W | 800 W | 1068 W | 1068 W |
| Continuous stall Current | 3.31 Arms | 1.91 Arms | 5.63 Arms | 3.25 Arms | 4.4 Arms | 2.5 Arms |
| Maximun Current | 8.55 Arms | 4.95 Arms | 15.97 Arms | 9.23 Arms | 13.19 Arms | 7.5 Arms |
| Nominal Current | 2.99 Arms | 1.73 Arms | 4.99 Arms | 2.88 Arms | 3.85 Arms | 2.19 Arms |
| Nominal working Speed | 3000 rpm | 3000 rpm | 3000 rpm | 3000 rpm | 3000 rpm | 3000 rpm |
| Maximum working speed 230VAC | 5000 rpm | 3900 rpm | 5000 rpm | 3900 rpm | 3900 rpm | – |
| Maximum working speed 400VAC | – | 5000 | – | 5000 | 5000 | 5000 |
| Torque Constant | 0.526 Nm/Arms | 0.91 Nm/Arms | 0.526 Nm/Arms | 0.91 Nm/Arms | 0.91 Nm/Arms | 1.6 Nm/Arms |
| Voltage Constant | 31.8 Vrms/Krpm | 55 Vrms/Krpm | 31.8 Vrms/Krpm | 55 Vrms/Krpm | 55 Vrms/Krpm | 96 Vrms/Krpm |
| Winding resistance | 2.3 Ω | 6.5 Ω | 0.99 Ω | 3 Ω | 1.9 Ω | 6.5 Ω |
| Winding inductance | 7.4 mH | 22.2 mH | 4.4 mH | 13.2 mH | 8.9 mH | 28.6 mH |
| Electrical time constant | 3.2 ms | 3.4 ms | 4.4 ms | 4.4 ms | 4.7 ms | 4.4 ms |
| Thermal Resistance | 1.67 °C/W | 1.67 °C/W | 1.32 °C/W | 1.32 °C/W | 1 °C/W | 1 °C/W |
| Mechanical time constant | 0.8 ms | 0.75 ms | 0.62 ms | 0.63 ms | 0.54 ms | 0.6 ms |
| Rotor Inertia without brake and without feedback | 0.64 kg·cm² | 0.64 kg·cm² | 1.16 kg·cm² | 1.16 kg·cm² | 1.58 kg·cm² | 1.58 kg·cm² |
| Mass without holding brake | 2.25 Kg | 2.25 Kg | 3.05 Kg | 3.05 Kg | 4.1 Kg | 4.1 Kg |
| Mass with holding brake | 2.97 Kg | 2.97 Kg | 3.77 Kg | 3.77 Kg | 4.82 Kg | 4.82 Kg |
| Maximum axial shaft load applied on the shaft’s center | 110 N | 110 N | 110 N | 110 N | 110 N | 110 N |
| Maximun radial shaft load applied on the shaft’s center | 350 N | 350 N | 350 N | 350 N | 350 N | 350 N |
Applications
Medical
Biomedical
Agriculture
Processing & Packaging
Logistic & Intralogistic
TC 80
datasheet
| Specification | TC 80 1,5 21 |
|---|---|
| Continous Stall Torque | 1.74 Nm |
| Peak Torque | 4.5 Nm |
| Nominal Torque | 1.53 Nm |
| Rated Voltage | 230 V |
| Nominal power | 480 W |
| Continuous stall Current | 3.31 Arms |
| Maximun Current | 8.55 Arms |
| Nominal Current | 2.99 Arms |
| Nominal working Speed | 3000 rpm |
| Maximum working speed 230VAC | 5000 rpm |
| Torque Constant | 0.526 Nm/Arms |
| Voltage Constant | 31.8 Vrms/Krpm |
| Winding resistance | 2.3 Ω |
| Winding inductance | 7.4 mH |
| Electrical time constant | 3.2 ms |
| Thermal Resistance | 1.67 °C/W |
| Mechanical time constant | 0.8 ms |
| Rotor Inertia without brake and without feedback | 0.64 kg·cm² |
| Mass without holding brake | 2.25 Kg |
| Mass with holding brake | 2.97 Kg |
| Maximum axial shaft load applied on the shaft’s center | 110 N |
| Maximun radial shaft load applied on the shaft’s center | 350 N |
Applications
Medical
Biomedical
Agriculture
Processing & Packaging
Logistic & Intralogistic
TC 80
datasheet
| Specification | TC 80 1,5 15 |
|---|---|
| Continous Stall Torque | 1.74 Nm |
| Peak Torque | 4.5 Nm |
| Nominal Torque | 1.53 Nm |
| Rated Voltage | 400 V |
| Nominal power | 480 W |
| Continuous stall Current | 1.91 Arms |
| Maximun Current | 4.95 Arms |
| Nominal Current | 1.73 Arms |
| Nominal working Speed | 3000 rpm |
| Maximum working speed 230VAC | 3900 rpm |
| Maximum working speed 400VAC | 5000 |
| Torque Constant | 0.91 Nm/Arms |
| Voltage Constant | 55 Vrms/Krpm |
| Winding resistance | 6.5 Ω |
| Winding inductance | 22.2 mH |
| Electrical time constant | 3.4 ms |
| Thermal Resistance | 1.67 °C/W |
| Mechanical time constant | 0.75 ms |
| Rotor Inertia without brake and without feedback | 0.64 kg·cm² |
| Mass without holding brake | 2.25 Kg |
| Mass with holding brake | 2.97 Kg |
| Maximum axial shaft load applied on the shaft’s center | 110 N |
| Maximun radial shaft load applied on the shaft’s center | 350 N |
Applications
Medical
Biomedical
Agriculture
Processing & Packaging
Logistic & Intralogistic
TC 80
datasheet
| Specification | TC 80 2,8 21 |
|---|---|
| Continous Stall Torque | 2.96 Nm |
| Peak Torque | 8.4 Nm |
| Nominal Torque | 2.55 Nm |
| Rated Voltage | 230 V |
| Nominal power | 800 W |
| Continuous stall Current | 5.63 Arms |
| Maximun Current | 15.97 Arms |
| Nominal Current | 4.99 Arms |
| Nominal working Speed | 3000 rpm |
| Maximum working speed 230VAC | 5000 rpm |
| Torque Constant | 0.526 Nm/Arms |
| Voltage Constant | 31.8 Vrms/Krpm |
| Winding resistance | 0.99 Ω |
| Winding inductance | 4.4 mH |
| Electrical time constant | 4.4 ms |
| Thermal Resistance | 1.32 °C/W |
| Mechanical time constant | 0.62 ms |
| Rotor Inertia without brake and without feedback | 1.16 kg·cm² |
| Mass without holding brake | 3.05 Kg |
| Mass with holding brake | 3.77 Kg |
| Maximum axial shaft load applied on the shaft’s center | 110 N |
| Maximun radial shaft load applied on the shaft’s center | 350 N |
Applications
Medical
Biomedical
Agriculture
Processing & Packaging
Logistic & Intralogistic
TC 80
datasheet
| Specification | TC 80 2,8 15 |
|---|---|
| Continous Stall Torque | 2.96 Nm |
| Peak Torque | 8.4 Nm |
| Nominal Torque | 2.55 Nm |
| Rated Voltage | 400 V |
| Nominal power | 800 W |
| Continuous stall Current | 3.25 Arms |
| Maximun Current | 9.23 Arms |
| Nominal Current | 2.88 Arms |
| Nominal working Speed | 3000 rpm |
| Maximum working speed 230VAC | 3900 rpm |
| Maximum working speed 400VAC | 5000 |
| Torque Constant | 0.91 Nm/Arms |
| Voltage Constant | 55 Vrms/Krpm |
| Winding resistance | 3 Ω |
| Winding inductance | 13.2 mH |
| Electrical time constant | 4.4 ms |
| Thermal Resistance | 1.32 °C/W |
| Mechanical time constant | 0.63 ms |
| Rotor Inertia without brake and without feedback | 1.16 kg·cm² |
| Mass without holding brake | 3.05 Kg |
| Mass with holding brake | 3.77 Kg |
| Maximum axial shaft load applied on the shaft’s center | 110 N |
| Maximun radial shaft load applied on the shaft’s center | 350 N |
Applications
Medical
Biomedical
Agriculture
Processing & Packaging
Logistic & Intralogistic
TC 80
datasheet
| Specification | TC 80 4 15 |
|---|---|
| Continous Stall Torque | 4 Nm |
| Peak Torque | 12 Nm |
| Nominal Torque | 3.4 Nm |
| Rated Voltage | 230 V |
| Nominal power | 1068 W |
| Continuous stall Current | 4.4 Arms |
| Maximun Current | 13.19 Arms |
| Nominal Current | 3.85 Arms |
| Nominal working Speed | 3000 rpm |
| Maximum working speed 230VAC | 3900 rpm |
| Maximum working speed 400VAC | 5000 |
| Torque Constant | 0.91 Nm/Arms |
| Voltage Constant | 55 Vrms/Krpm |
| Winding resistance | 1.9 Ω |
| Winding inductance | 8.9 mH |
| Electrical time constant | 4.7 ms |
| Thermal Resistance | 1 °C/W |
| Mechanical time constant | 0.54 ms |
| Rotor Inertia without brake and without feedback | 1.58 kg·cm² |
| Mass without holding brake | 4.1 Kg |
| Mass with holding brake | 4.82 Kg |
| Maximum axial shaft load applied on the shaft’s center | 110 N |
| Maximun radial shaft load applied on the shaft’s center | 350 N |
Applications
Medical
Biomedical
Agriculture
Processing & Packaging
Logistic & Intralogistic
TC 80
datasheet
| Specification | TC 80 4 17 |
|---|---|
| Continous Stall Torque | 4 Nm |
| Peak Torque | 12 Nm |
| Nominal Torque | 3.4 Nm |
| Rated Voltage | 400 V |
| Nominal power | 1068 W |
| Continuous stall Current | 2.5 Arms |
| Maximun Current | 7.5 Arms |
| Nominal Current | 2.19 Arms |
| Nominal working Speed | 3000 rpm |
| Maximum working speed 400VAC | 5000 |
| Torque Constant | 1.6 Nm/Arms |
| Voltage Constant | 96 Vrms/Krpm |
| Winding resistance | 6.5 Ω |
| Winding inductance | 28.6 mH |
| Electrical time constant | 4.4 ms |
| Thermal Resistance | 1 °C/W |
| Mechanical time constant | 0.6 ms |
| Rotor Inertia without brake and without feedback | 1.58 kg·cm² |
| Mass without holding brake | 4.1 Kg |
| Mass with holding brake | 4.82 Kg |
| Maximum axial shaft load applied on the shaft’s center | 110 N |
| Maximun radial shaft load applied on the shaft’s center | 350 N |
Applications
Medical
Biomedical
Agriculture
Processing & Packaging
Logistic & Intralogistic
