Motor Characteristics
| Parameter | BS6008NFL-29- 48.0 |
|---|---|
| Voltage | 48.0 V |
| Line resistance | 0.62 Ω |
| Line inductance | 0.26 mH |
| No-load speed | 6560 rpm |
| No-load current | 0.3 A |
| Stall torque | 5.3 N.m |
| Stall current | 77.4 A |
| Nominal torque | 0.44 N.m |
| Nominal speed | 5380 rmp |
| Nominal current | 6.1 A |
| Max. output power | 900 W |
| Max. efficiency | 86 % |
| Back-EMF constant | 7.3 mV/rmp |
| Torque constant | 0.068 Nm/A |
| KV Value | 136.7 rpm/V |
| Speed/torque gradient | 1244 rpm/Nm |
| Operating temperature range | -40~+100 |
| Thermal class of winding | 180 °C |
| Insulation class | B |
| Thermal resistance winding-ambient | 1.6 K/W |
| Thermal time constant winding | 120 s |
| Weight | 119 g |
| No. of pole pairs | 10 / |
| No. of solts | 24 / |
| Rotor inertia | 81 gcm² |
| Commutation | Sensorless |
| Circuit type | Y |
| Puncture | 500VAC / 5mA / 1s |
| Insulation Resistance | 100MΩ / 500VDC |
Applications
Robot
industrial automation fields
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.

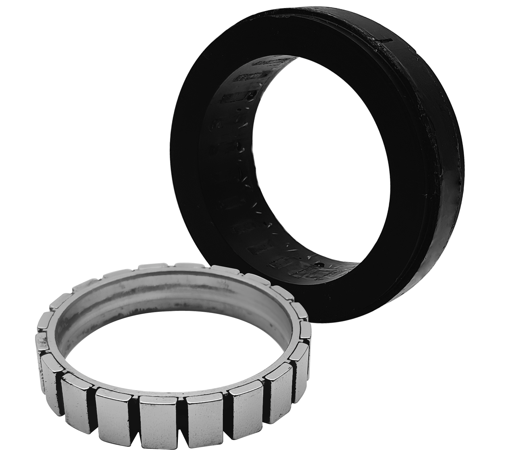

BS6008NFL
BS6008NFL
BS6008NFL
| Parameter | BS6008NFL-29- 48.0 |
|---|---|
| Voltage | 48.0 V |
| Line resistance | 0.62 Ω |
| Line inductance | 0.26 mH |
| No-load speed | 6560 rpm |
| No-load current | 0.3 A |
| Stall torque | 5.3 N.m |
| Stall current | 77.4 A |
| Nominal torque | 0.44 N.m |
| Nominal speed | 5380 rmp |
| Nominal current | 6.1 A |
| Max. output power | 900 W |
| Max. efficiency | 86 % |
| Back-EMF constant | 7.3 mV/rmp |
| Torque constant | 0.068 Nm/A |
| KV Value | 136.7 rpm/V |
| Speed/torque gradient | 1244 rpm/Nm |
| Operating temperature range | -40~+100 °C |
| Thermal class of winding | 180 °C |
| Insulation class | B / |
| Thermal resistance winding-ambient | 1.6 K/W |
| Thermal time constant winding | 120 s |
| Weight | 119 g |
| No. of pole pairs | 10 / |
| No. of solts | 24 / |
| Rotor inertia | 81 gcm² |
| Commutation | Sensorless |
| Circuit type | Y |
| Puncture | 500VAC / 5mA / 1s |
| Insulation Resistance | 100MΩ / 500VDC |
Applications
Robot
industrial automation fields
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
