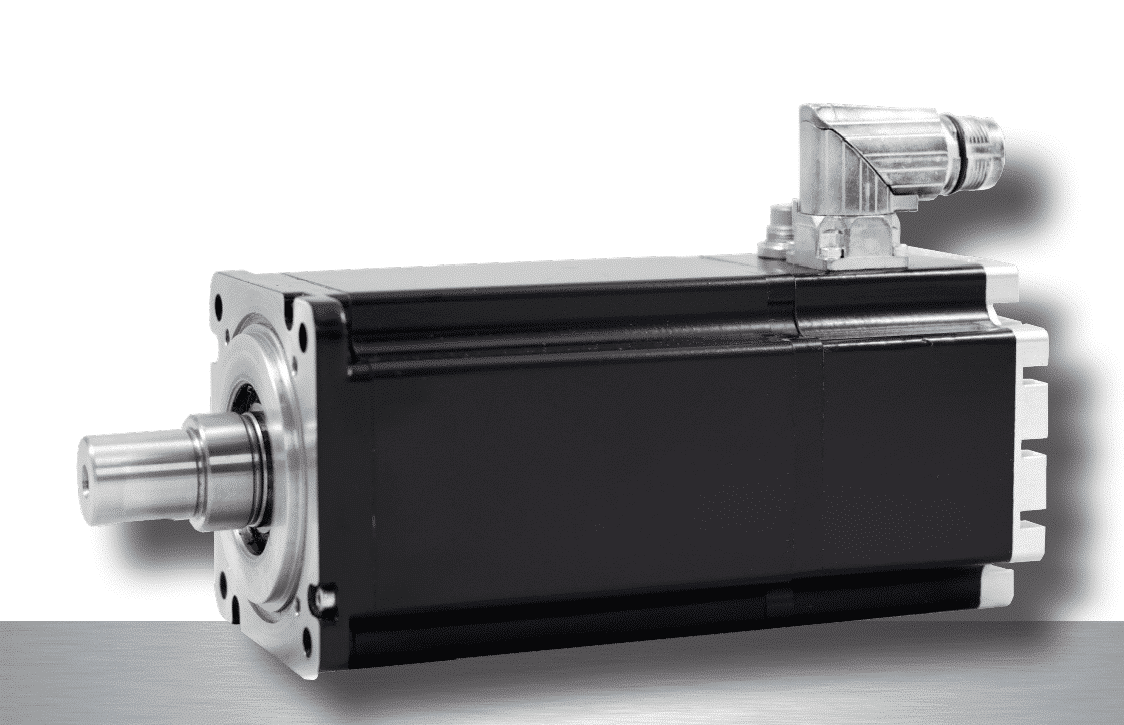

DUET AD 80
incl. VAT
Flange dimensions: 80 mm
Rated Output Power: 480 – 630 W
Rated Torque: 1,53 – 2,0 Nm
Rated Speed: 3000 rpm
Fieldbus: CanOpen/Modbus RTUY 485/Ethercat/Profinet
| Specification | DUET AD 80 1,5 03 | DUET AD 80 2,8 02 |
|---|---|---|
| Phase/phase inductance (± 10%) | – | 0.24 mH |
| Electrical time constant | – | 3.75 ms |
| Thermal Resistance | – | 1.4 °C/W |
| Mechanical time constant | – | 0.65 ms |
| Rotor Inertia without brake and without feedback | – | 1.16 kg·cm² |
| Duet weight | – | 3.3 Kg |
| Duet weight with brake | – | 4 Kg |
| Axial Load applied on the shaft’s center | – | 110 N |
| Radial Load applied on the shaft’s center | – | 350 N |
| Rated Voltage | 48 Vdc | 48 Vdc |
| Auxiliary Voltage (+6% -10%) | 24 Vdc | 24 Vdc |
| Minimum Voltage | 40 Vdc | 40 Vdc |
| Maximum Voltage | 48 Vdc | 48 Vdc |
| Stall Torque | 1.74 Nm | 2.22 Nm |
| Peak Torque | 4.5 Nm | 5.36 Nm |
| Rated Torque | 1.53 Nm | 2 Nm |
| Rated Output Power | 480 W | 630 W |
| Stall Current | 12.3 Arms | 19.65 Arms |
| Peak Current | 35.1 Arms | 50 Arms |
| Rated Current | 11 Arms | 17.7 Arms |
| Rated Speed @48Vdc | 3000 rpm | 3000 rpm |
| Maximum Speed @48Vdc | 4500 rpm | 4500 rpm |
| Torque Constant (± 5%) | 0.141 Nm/Arms | 0.113 Nm/Arms |
| Voltage Constant (± 5%) | 8.5 Vrms/Krpm | 6.8 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 0.136 Ω | 0.064 Ω |
DUET AD 80
datasheet
| Specification | DUET AD 80 1,5 03 |
|---|---|
| Rated Voltage | 48 Vdc |
| Auxiliary Voltage (+6% -10%) | 24 Vdc |
| Minimum Voltage | 40 Vdc |
| Maximum Voltage | 48 Vdc |
| Stall Torque | 1.74 Nm |
| Peak Torque | 4.5 Nm |
| Rated Torque | 1.53 Nm |
| Rated Output Power | 480 W |
| Stall Current | 12.3 Arms |
| Peak Current | 35.1 Arms |
| Rated Current | 11 Arms |
| Rated Speed @48Vdc | 3000 rpm |
| Maximum Speed @48Vdc | 4500 rpm |
| Torque Constant (± 5%) | 0.141 Nm/Arms |
| Voltage Constant (± 5%) | 8.5 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 0.136 Ω |
DUET AD 80
datasheet
| Specification | DUET AD 80 2,8 02 |
|---|---|
| Phase/phase inductance (± 10%) | 0.24 mH |
| Electrical time constant | 3.75 ms |
| Thermal Resistance | 1.4 °C/W |
| Mechanical time constant | 0.65 ms |
| Rotor Inertia without brake and without feedback | 1.16 kg·cm² |
| Duet weight | 3.3 Kg |
| Duet weight with brake | 4 Kg |
| Axial Load applied on the shaft’s center | 110 N |
| Radial Load applied on the shaft’s center | 350 N |
| Rated Voltage | 48 Vdc |
| Auxiliary Voltage (+6% -10%) | 24 Vdc |
| Minimum Voltage | 40 Vdc |
| Maximum Voltage | 48 Vdc |
| Stall Torque | 2.22 Nm |
| Peak Torque | 5.36 Nm |
| Rated Torque | 2 Nm |
| Rated Output Power | 630 W |
| Stall Current | 19.65 Arms |
| Peak Current | 50 Arms |
| Rated Current | 17.7 Arms |
| Rated Speed @48Vdc | 3000 rpm |
| Maximum Speed @48Vdc | 4500 rpm |
| Torque Constant (± 5%) | 0.113 Nm/Arms |
| Voltage Constant (± 5%) | 6.8 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 0.064 Ω |
