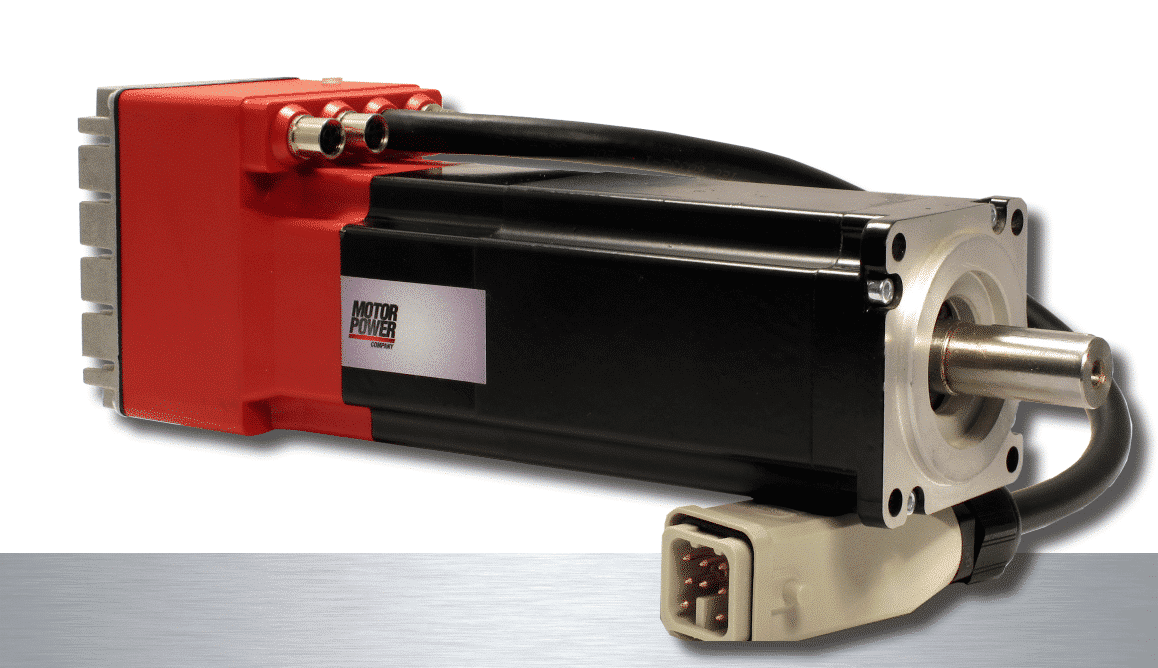

DUET 60
incl. VAT
Flange dimensions: 60 mm
Rated Output Power: 190 – 370 W
Rated Torque: 0,6 – 1,17 Nm
Rated Speed: 3000 rpm
Fieldbus: CanOpen
| Specification | DUET 60 0,65 01 | DUET 60 1,3 02 |
|---|---|---|
| Rated Voltage | 48 Vdc | 48 Vdc |
| Auxiliary Voltage (+6% -10%) | 24 Vdc | 24 Vdc |
| Minimum Voltage | 9 Vdc | 9 Vdc |
| Maximum Voltage | 60 Vdc | 60 Vdc |
| Stall Torque | 0.57 Nm | 0.68 Nm |
| Stall Torque Intermittent duty S2 10″/40″ | – | 1.31 Nm |
| Peak Torque | 1.95 Nm | 2.4 Nm |
| Rated Torque | 0.6 Nm | 0.66 Nm |
| Rated Torque Intermittent duty S2 10″/40″ | – | 1.17 Nm |
| Rated Output Power | 190 W | 210 W |
| Rated Output Power Intermittent duty S2 10″/40″ | – | 370 W |
| Stall Current | 6 Arms | 6.1 Arms |
| Stall Current Intermittent duty S2 10″/40″ | – | 11.7 Arms |
| Peak Current | 20.7 Arms | 21.2 Arms |
| Rated Current | 6.5 Arms | 6.1 Arms |
| Rated Current Intermittent duty S2 10″/40″ | – | 10.4 Arms |
| Rated Speed @48Vdc | 3000 rpm | 3000 rpm |
| Maximum Speed @48Vdc | 5000 rpm | 4500 rpm |
| Maximum Speed @24Vdc | 2600 rpm | 2200 rpm |
| Torque Constant (± 5%) | 0.094 Nm/Arms | 0.112 Nm/Arms |
| Voltage Constant (± 5%) | 5.7 Vrms/Krpm | 6.8 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 0.38 Ω | 0.2 Ω |
| Phase/phase inductance (± 10%) | 0.9 mH | 0.68 mH |
| Electrical time constant | 2.4 ms | 3.4 ms |
| Thermal Resistance | 1.9 °C/W | 1.4 °C/W |
| Mechanical time constant | 0.83 ms | 0.57 ms |
| Rotor Inertia without brake and without feedback | 0.13 kg·cm² | 0.24 kg·cm² |
| Duet weight | 1.2 Kg | 1.6 Kg |
| Duet weight with brake | 1.6 Kg | 2 Kg |
| Axial Load applied on the shaft’s center | 70 N | 70 N |
| Radial Load applied on the shaft’s center | 220 N | 220 N |
| Specification | DUET 60 0,65 01 |
|---|---|
| Rated Voltage | 48 Vdc |
| Auxiliary Voltage (+6% -10%) | 24 Vdc |
| Minimum Voltage | 9 Vdc |
| Maximum Voltage | 60 Vdc |
| Stall Torque | 0.57 Nm |
| Peak Torque | 1.95 Nm |
| Rated Torque | 0.6 Nm |
| Rated Output Power | 190 W |
| Stall Current | 6 Arms |
| Peak Current | 20.7 Arms |
| Rated Current | 6.5 Arms |
| Rated Speed @48Vdc | 3000 rpm |
| Maximum Speed @48Vdc | 5000 rpm |
| Maximum Speed @24Vdc | 2600 rpm |
| Torque Constant (± 5%) | 0.094 Nm/Arms |
| Voltage Constant (± 5%) | 5.7 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 0.38 Ω |
| Phase/phase inductance (± 10%) | 0.9 mH |
| Electrical time constant | 2.4 ms |
| Thermal Resistance | 1.9 °C/W |
| Mechanical time constant | 0.83 ms |
| Rotor Inertia without brake and without feedback | 0.13 kg·cm² |
| Duet weight | 1.2 Kg |
| Duet weight with brake | 1.6 Kg |
| Axial Load applied on the shaft’s center | 70 N |
| Radial Load applied on the shaft’s center | 220 N |
| Specification | DUET 60 1,3 02 |
|---|---|
| Rated Voltage | 48 Vdc |
| Auxiliary Voltage (+6% -10%) | 24 Vdc |
| Minimum Voltage | 9 Vdc |
| Maximum Voltage | 60 Vdc |
| Stall Torque | 0.68 Nm |
| Stall Torque Intermittent duty S2 10″/40″ | 1.31 Nm |
| Peak Torque | 2.4 Nm |
| Rated Torque | 0.66 Nm |
| Rated Torque Intermittent duty S2 10″/40″ | 1.17 Nm |
| Rated Output Power | 210 W |
| Rated Output Power Intermittent duty S2 10″/40″ | 370 W |
| Stall Current | 6.1 Arms |
| Stall Current Intermittent duty S2 10″/40″ | 11.7 Arms |
| Peak Current | 21.2 Arms |
| Rated Current | 6.1 Arms |
| Rated Current Intermittent duty S2 10″/40″ | 10.4 Arms |
| Rated Speed @48Vdc | 3000 rpm |
| Maximum Speed @48Vdc | 4500 rpm |
| Maximum Speed @24Vdc | 2200 rpm |
| Torque Constant (± 5%) | 0.112 Nm/Arms |
| Voltage Constant (± 5%) | 6.8 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 0.2 Ω |
| Phase/phase inductance (± 10%) | 0.68 mH |
| Electrical time constant | 3.4 ms |
| Thermal Resistance | 1.4 °C/W |
| Mechanical time constant | 0.57 ms |
| Rotor Inertia without brake and without feedback | 0.24 kg·cm² |
| Duet weight | 1.6 Kg |
| Duet weight with brake | 2 Kg |
| Axial Load applied on the shaft’s center | 70 N |
| Radial Load applied on the shaft’s center | 220 N |
