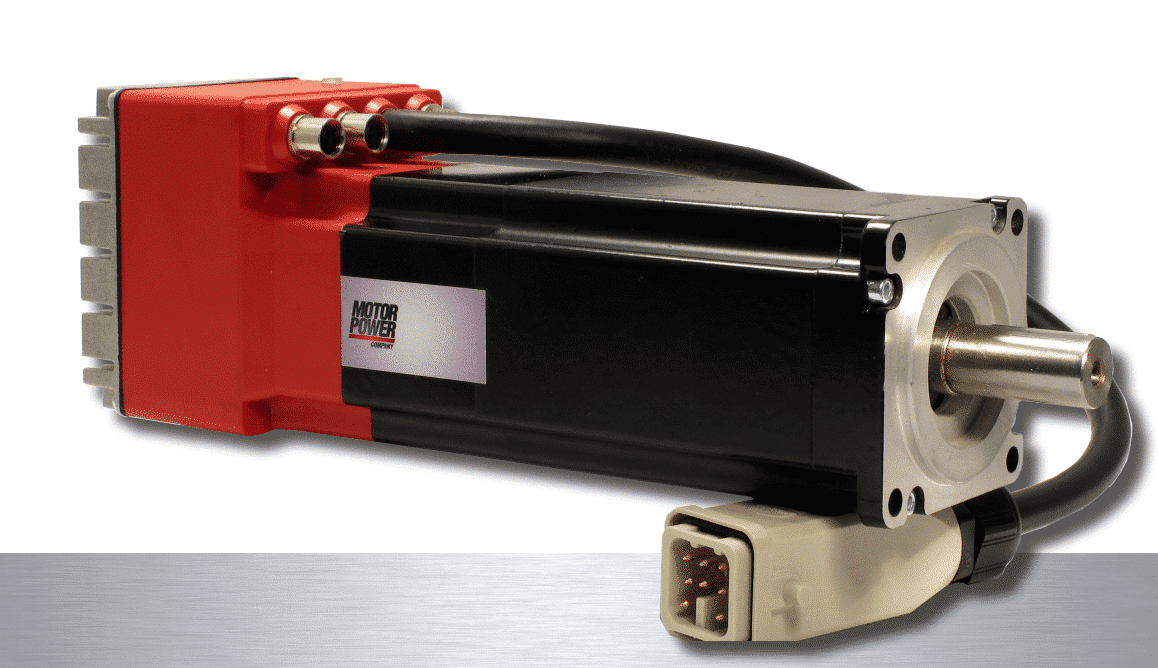

DUET 40
incl. VAT
Flange dimensions: 40 mm
Rated Output Power: 60 – 100 W
Rated Torque: 0,19 – 0,32 Nm
Rated Speed: 3000 rpm
Fieldbus: CanOpen
| Specification | DUET 40 0,16 00 | DUET 40 0,32 01 |
|---|---|---|
| Rated Voltage | 48 Vdc | 48 Vdc |
| Auxiliary Voltage (+6% -10%) | 24 Vdc | 24 Vdc |
| Minimum Voltage | 9 Vdc | 9 Vdc |
| Maximum Voltage | 60 Vdc | 60 Vdc |
| Stall Torque | 0.21 Nm | 0.34 Nm |
| Peak Torque | 0.48 Nm | 0.96 Nm |
| Rated Torque | 0.19 Nm | 0.32 Nm |
| Rated Output Power | 60 W | 100 W |
| Stall Current | 2.84 Arms | 3.6 Arms |
| Peak Current | 6.5 Arms | 10.2 Arms |
| Rated Current | 2.6 Arms | 3.5 Arms |
| Rated Speed @48Vdc | 3000 rpm | 3000 rpm |
| Maximum Speed @48Vdc | 5000 rpm | 5000 rpm |
| Maximum Speed @24Vdc | 3200 rpm | 2600 rpm |
| Torque Constant (± 5%) | 0.074 Nm/Arms | 0.094 Nm/Arms |
| Voltage Constant (± 5%) | 4.5 Vrms/Krpm | 5.7 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 1.77 Ω | 1 Ω |
| Phase/phase inductance (± 10%) | 1.6 mH | 1.42 mH |
| Electrical time constant | 0.9 ms | 1.4 ms |
| Thermal Resistance | 2.38 °C/W | 2.3 °C/W |
| Mechanical time constant | 1.3 ms | 0.8 ms |
| Rotor Inertia without brake and without feedback | 0.027 kg·cm² | 0.047 kg·cm² |
| Duet weight | 0.55 Kg | 0.7 Kg |
| Duet weight with brake | 0.7 Kg | 0.85 Kg |
| Axial Load applied on the shaft’s center | 30 N | 30 N |
| Radial Load applied on the shaft’s center | 180 N | 180 N |
| Specification | DUET 40 0,16 00 |
|---|---|
| Rated Voltage | 48 Vdc |
| Auxiliary Voltage (+6% -10%) | 24 Vdc |
| Minimum Voltage | 9 Vdc |
| Maximum Voltage | 60 Vdc |
| Stall Torque | 0.21 Nm |
| Peak Torque | 0.48 Nm |
| Rated Torque | 0.19 Nm |
| Rated Output Power | 60 W |
| Stall Current | 2.84 Arms |
| Peak Current | 6.5 Arms |
| Rated Current | 2.6 Arms |
| Rated Speed @48Vdc | 3000 rpm |
| Maximum Speed @48Vdc | 5000 rpm |
| Maximum Speed @24Vdc | 3200 rpm |
| Torque Constant (± 5%) | 0.074 Nm/Arms |
| Voltage Constant (± 5%) | 4.5 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 1.77 Ω |
| Phase/phase inductance (± 10%) | 1.6 mH |
| Electrical time constant | 0.9 ms |
| Thermal Resistance | 2.38 °C/W |
| Mechanical time constant | 1.3 ms |
| Rotor Inertia without brake and without feedback | 0.027 kg·cm² |
| Duet weight | 0.55 Kg |
| Duet weight with brake | 0.7 Kg |
| Axial Load applied on the shaft’s center | 30 N |
| Radial Load applied on the shaft’s center | 180 N |
| Specification | DUET 40 0,32 01 |
|---|---|
| Rated Voltage | 48 Vdc |
| Auxiliary Voltage (+6% -10%) | 24 Vdc |
| Minimum Voltage | 9 Vdc |
| Maximum Voltage | 60 Vdc |
| Stall Torque | 0.34 Nm |
| Peak Torque | 0.96 Nm |
| Rated Torque | 0.32 Nm |
| Rated Output Power | 100 W |
| Stall Current | 3.6 Arms |
| Peak Current | 10.2 Arms |
| Rated Current | 3.5 Arms |
| Rated Speed @48Vdc | 3000 rpm |
| Maximum Speed @48Vdc | 5000 rpm |
| Maximum Speed @24Vdc | 2600 rpm |
| Torque Constant (± 5%) | 0.094 Nm/Arms |
| Voltage Constant (± 5%) | 5.7 Vrms/Krpm |
| Phase/phase resistance (± 10%@25°C) | 1 Ω |
| Phase/phase inductance (± 10%) | 1.42 mH |
| Electrical time constant | 1.4 ms |
| Thermal Resistance | 2.3 °C/W |
| Mechanical time constant | 0.8 ms |
| Rotor Inertia without brake and without feedback | 0.047 kg·cm² |
| Duet weight | 0.7 Kg |
| Duet weight with brake | 0.85 Kg |
| Axial Load applied on the shaft’s center | 30 N |
| Radial Load applied on the shaft’s center | 180 N |
