Description

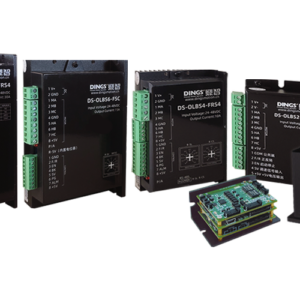

DS-BVM-FCAO /FETC Stand Alone Closed Loop – CANopen, EtherCAT
DS-BVM-FCAO/FETC
incl. 19% VAT
https://www.dingsmotion.com/downloads/downloads.php?idx=30
| Specification | DS-BVM-FCAO/FETC |
|---|---|
| Adapted Motor | DC / BLDC / PMSM / VCM |
| Current (Torque) Control | Control periodic 24KHz |
| Velocity & Position Control | Control periodic 2KHz |
| Reference Command | USB + CANopen or EtherCAT (CoE, FoE) |
| Auto Tuning | Automatic self-configuration and optimization of motor phasing, wires, current loop, velocity control loop. |
| User Interface | GUI : Servo studio, Setting, Drive, Motor, Feedback, I/O, Motion |
| Protective Functions | Under-and over-voltage, Over-current, Over-load (with PT), Drive over-temperature, Feedback sensor signal lost |
| Ambient temperature | 0 ~ 45 °C |
| Storage Temperature | 0 ~ 70 °C |
| Operating Humidity | 10 ~ 90% RH |
Technical specifications are for guidance only, as the individual drives and motors are configured for specific applications. Subject to technical and visual changes.
